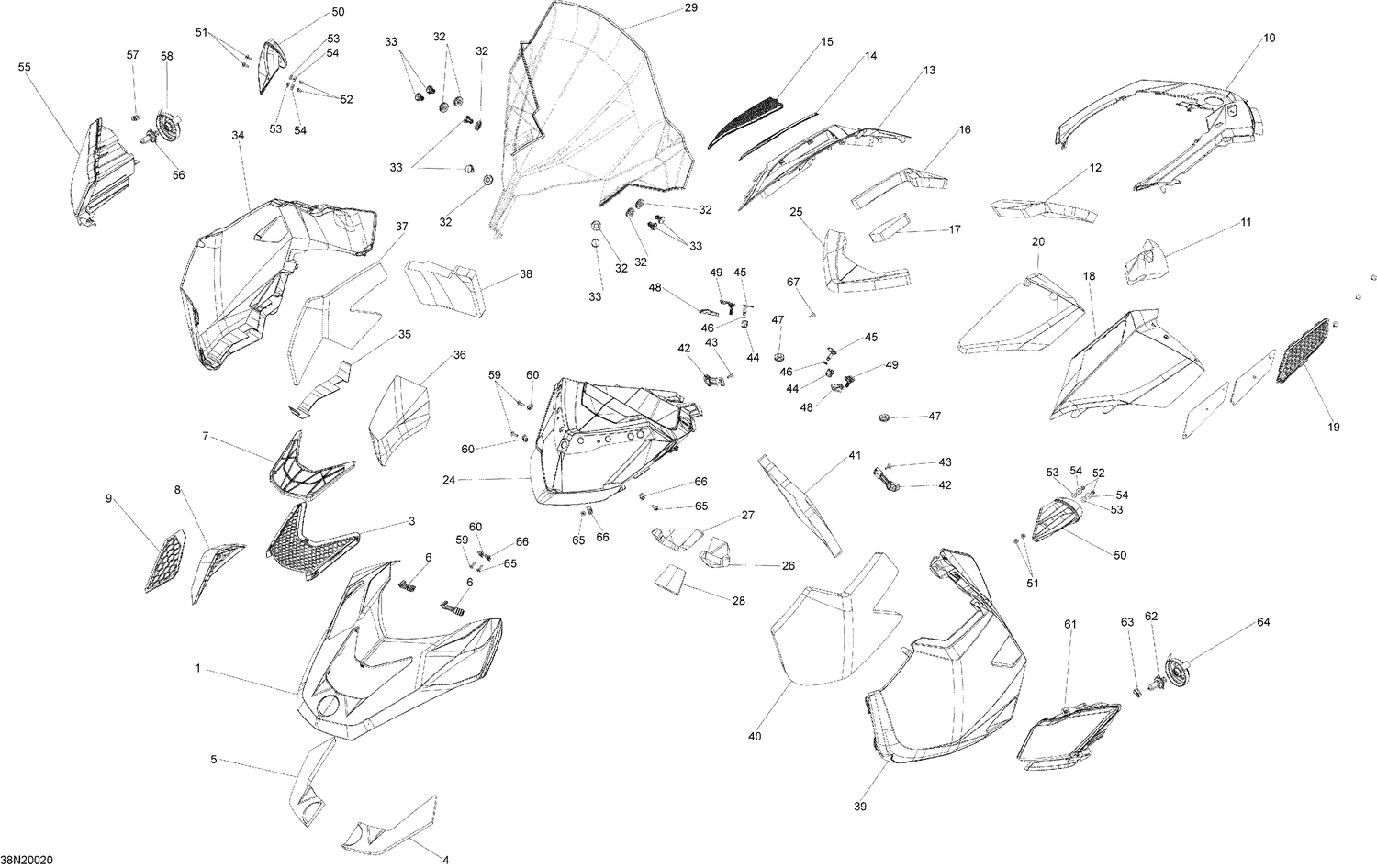

09- Body - Hood Section - Expedition - 900 ACE
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 517304843 | Hood Grille |
| 4 | 517304330 | Insulator |
| 5 | 517304214 | Insulator |
| 6 | 517304289 | Latch Pannel |
| 8 | 517306980 | Scoop Grille |
| 11 | 517305644 | Insulator |
| 12 | 517304318 | Insulator |
| 14 | 517304015 | RH Access Panel Grille |
| 15 | 517304016 | RH Lower Acces Grille |
| 16 | 517304311 | Insulator |
| 17 | 517305987 | Insulator |
| 19 | 517303893 | LH Access Panel Grille |
| 20 | 517304313 | Insulator |
| 24 | 517304272 | Indicator Support |
| 25 | 517304314 | Insulator |
| 26 | 517304315 | Insulator |
| 27 | 517304316 | Insulator |
| 28 | 517304319 | Insulator |
| 29 | 860201000 | Windshield Ass'y |
| 32 | 517303756 | Grommet |
| 33 | 517304744 | Button |
| 34 | 517306970 | Black, RH Side Panel |
| 35 | 517306504 | Aluminium Foil |
| 36 | 517306505 | Aluminium Foil |
| 37 | 517306506 | Aluminium Foil |
| 38 | 517304310 | RH Rear Foam |
| 39 | 517306973 | Black, LH Side Panel |
| 40 | 517303891 | LH Foam |
| 41 | 517304309 | LH Rear Foam |
| 42 | 517304572 | Latch-Panel |
| 43 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 44 | 517304297 | Handle Fastener Quarter-Turn |
| 45 | 517304296 | Quarter-Turn Handle |
| 46 | 517304538 | Locking Plate |
| 48 | 517304075 | End Piece Latch |
| 49 | 517306057 | Latch-Panel |
| 51 | 250000721 | Torx Truss Screw M6 X 16 |
| 52 | 232361493 | Domed Nut M6 |
| 53 | 250200024 | Rubber Washer 5 mm |
| 54 | 20117 | Washer |
| 56 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 57 | 515176498 | Cap |
| 58 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 59 | 250000722 | Torx Screw M6 X 20 |
| 60 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 62 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 63 | 515176498 | Cap |
| 64 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 65 | 250000722 | Torx Screw M6 X 20 |
| 66 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
