Home / BRP / OUTBOARD ACCESSORIES / 2013-2015 / E-TEC / INSTRUMENTS/RIGGING / GAUGES - ICON PRO

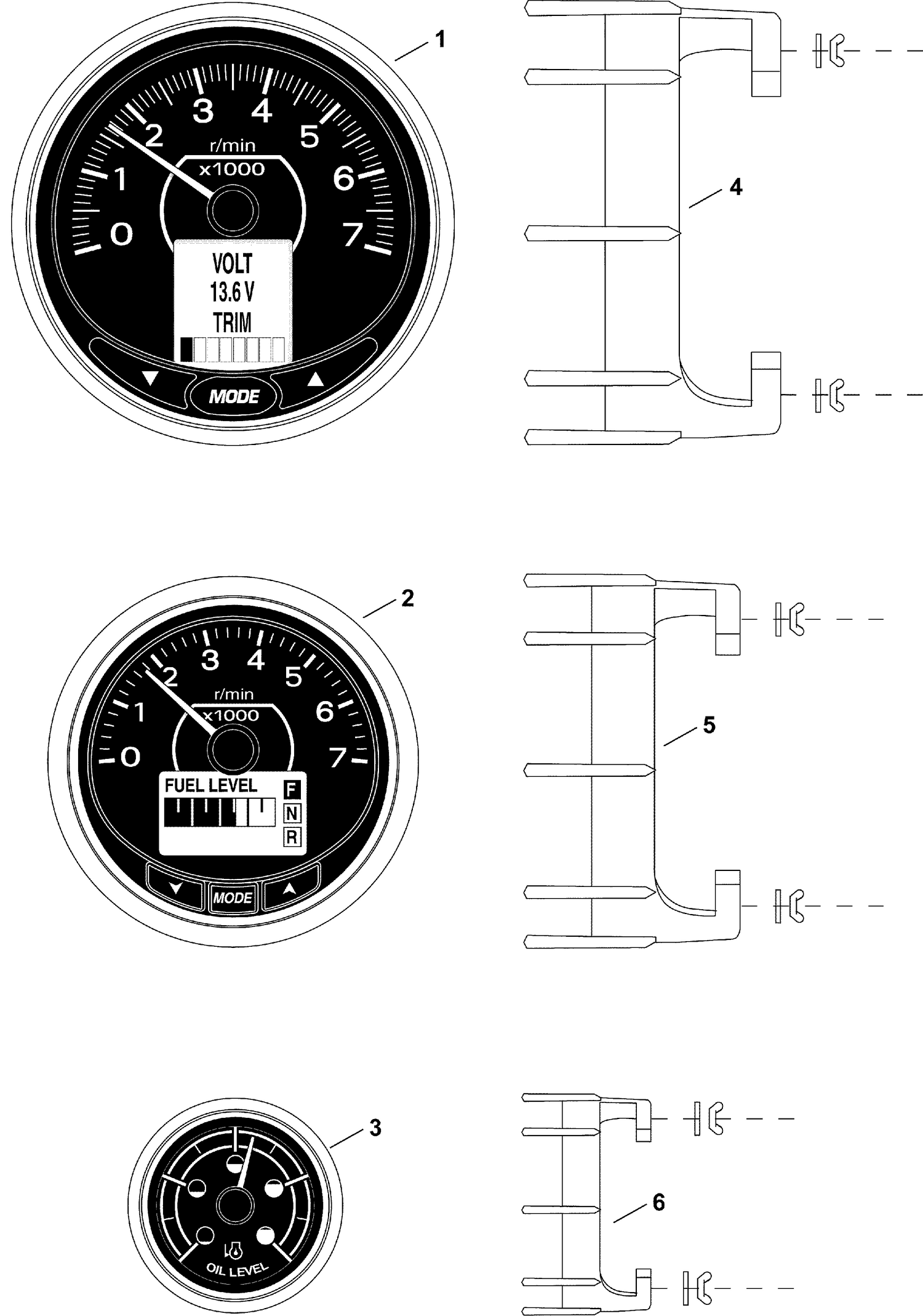

GAUGES - ICON PRO

GAUGES - ICON PRO

Parts (43)

RefPart NumberDescription
NS 0766159 TACHOMETER, ICON Basic Single Function, 3.5 in. - Black
NS 0766160 TACHOMETER , ICON Basic Multi Function with Temp and Trim, 5 in. - Black
NS 0766163 SPEEDOMETER 30 MPH, ICON Basic Single Function, 3.5 in. - Black
NS 0766164 SPEEDOMETER 50 MPH, ICON Basic Single Function, 3.5 in. - Black
NS 0766165 SPEEDOMETER 80 MPH, ICON Basic Single Function, 3.5 in. - Black
NS 0766166 SPEEDOMETER 80 MPH, ICON Basic Multi Function with Fuel and Volt, 5 in. - Black
NS 0766167 SPEEDOMETER 50 MPH, ICON Pro with LCD, 3.5 in. - Black
NS 0766168 SPEEDOMETER 80 MPH, ICON Pro with LCD, 3.5 in. - Black
NS 0766169 SPEEDOMETER 50 MPH, ICON Pro with LCD, 5 in. - Black
NS 0766170 SPEEDOMETER 80 MPH, ICON Pro with LCD, 5 in. - Black
NS 0766171 WATER PRESSURE, 30 PSI, 2in. - Black
NS 0766172 WATER PRESSURE, 60 PSI, 2in. - Black
NS 0766173 TRIM, 2 in. - Black
NS 0766175 WATER TEMPERATURE, Engine, 2 in. - Black
NS 0766176 FUEL LEVEL, Auxiliary Tank 1, 2 in. - Black
NS 0766177 FUEL LEVEL, Auxiliary Tank 2, 2 in. - Black
NS 0766178 FUEL LEVEL, Tank 3, 2 in. - Black
NS 0766179 VOLT, Battery 1, 2 in. - Black
NS 0766180 VOLT, Battery 2, 2 in. - Black
NS 0766181 VOLT, Battery 3, 2 in. - Black
NS 0766182 TACHOMETER, ICON Basic Single Function, 3.5 in. - White
NS 0766183 TACHOMETER , ICON Basic Multi Function with Temp and Trim, 5 in. - White
NS 0766184 TACHOMETER , ICON Pro with LCD, 3.5 in. - White
NS 0766185 TACHOMETER , ICON Pro with LCD, 5 in. - White
NS 0766186 SPEEDOMETER 30 MPH, ICON Basic Single Function, 3.5 in. - White
NS 0766187 SPEEDOMETER 50 MPH, ICON Basic Single Function, 3.5 in. - White
NS 0766188 SPEEDOMETER 80 MPH, ICON Basic Single Function, 3.5 in. - White
NS 0766189 SPEEDOMETER 80 MPH, ICON Basic Multi Function with Fuel and Volt, 5 in. - White
NS 0766194 WATER PRESSURE, 30 PSI, 2in. - White
NS 0766195 WATER PRESSURE, 60 PSI, 2in. - White
NS 0766196 TRIM, 2 in. - White
NS 0766197 OIL LEVEL, 2 in. - White
NS 0766198 WATER TEMPERATURE, Engine, 2 in. - White
NS 0766199 FUEL LEVEL, Auxiliary Tank 1, 2 in. - White
NS 0766200 FUEL LEVEL, Auxiliary Tank 2, 2 in. - White
NS 0766201 FUEL LEVEL, Tank 3, 2 in. - White
NS 0766202 VOLT, Battery 1, 2 in. - White
NS 0766203 VOLT, Battery 2, 2 in. - White
NS 0766204 VOLT, Battery 3, 2 in. - White
NS 5011305 WATER PRESSURE SENSOR KIT This part replaces 5008640.
1 0766162 TACHOMETER , ICON Pro with LCD, 5 in. - Black
2 0766161 TACHOMETER , ICON Pro with LCD, 3.5 in. - Black
3 0766174 OIL LEVEL, 2 in. - Black
