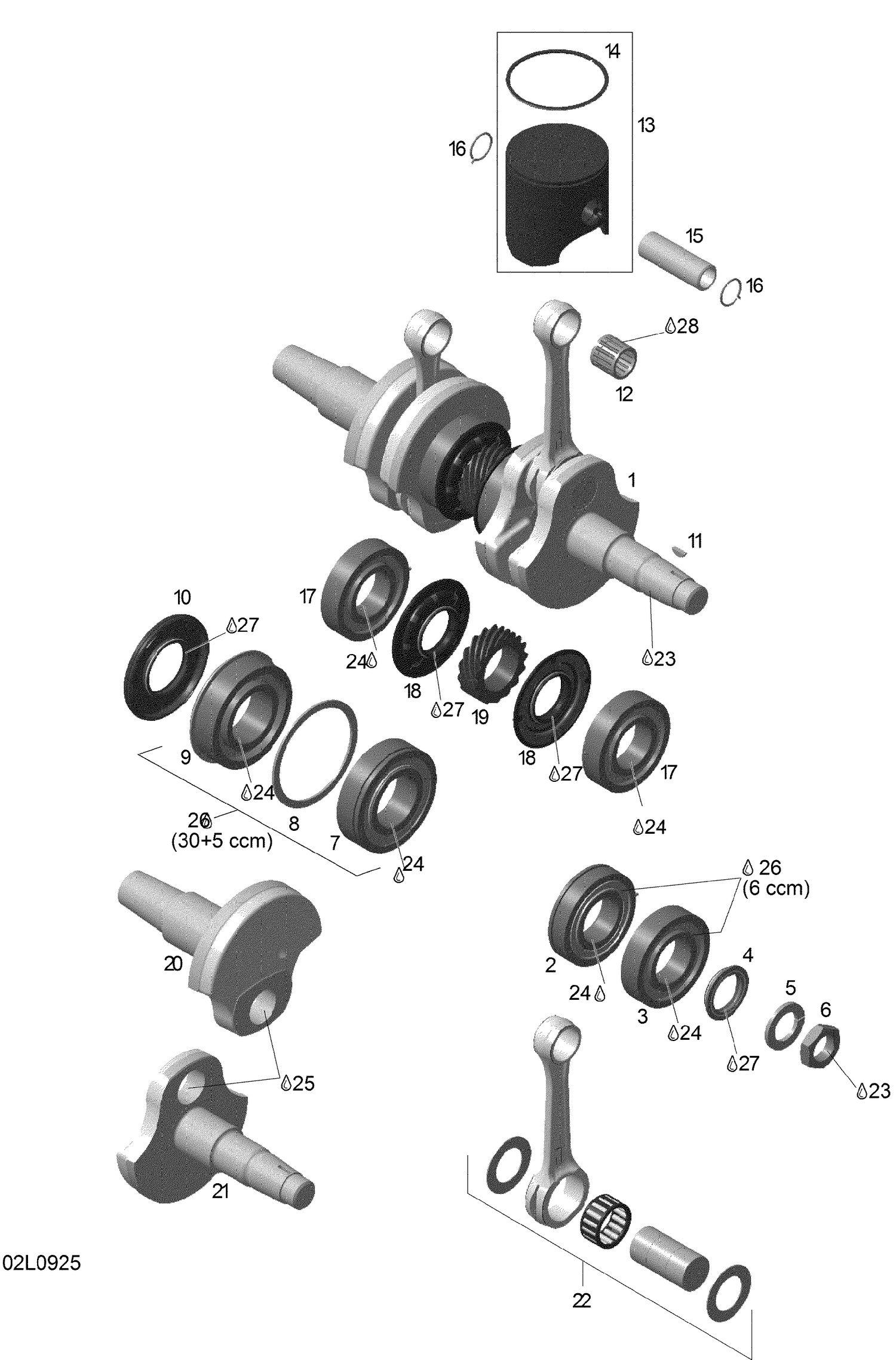

01- Crankshaft
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832673 | Ball Bearing Sealed, 6207 This part replaces 420832633. |
| 3 | 420832575 | Ball Bearing 6207 |
| 4 | 420931795 | Oil Seal This part replaces 420931793. |
| 5 | 420945759 | Lock washer 22 mm |
| 6 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 7 | 420832672 | Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 8 | 420926190 | Retaining disk |
| 9 | 420832702 | Ball bearing 6208 |
| 10 | 420931284 | Oil Seal |
| 11 | 420246015 | Woodruff Key |
| 12 | 420832445 | Needle bearing |
| 14 | 420815295 | Semi-trapez ring |
| 15 | 420916412 | Piston pin |
| 16 | 420845106 | Piston Circlip |
| 17 | 420832575 | Ball Bearing 6207 |
| 18 | 420931455 | Oil seal |
| 19 | 420834355 | CENTRAL GEAR - Call your local BRP dealership |
| 20 | 420818709 | CRANKSHAFT PTO - Call your local BRP dealership |
| 21 | 420819232 | CRANKSHAFT MAG - Call your local BRP dealership |
| 22 | 420890958 | Rod repair kit (PTO side) |
| 22 | 420890959 | Rod repair kit (MAG side) |
| 23 | 293800060 | Loctite 243, 10 ml |
| 24 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 25 | Not | Available As Spare Part - Loctite 14486 |
| 26 | 779119 | NEEDS DESCRIPTION This part replaces 413802900. |
| 27 | 420899271 | Grease Petamo Ghy 133N, 400 g |
