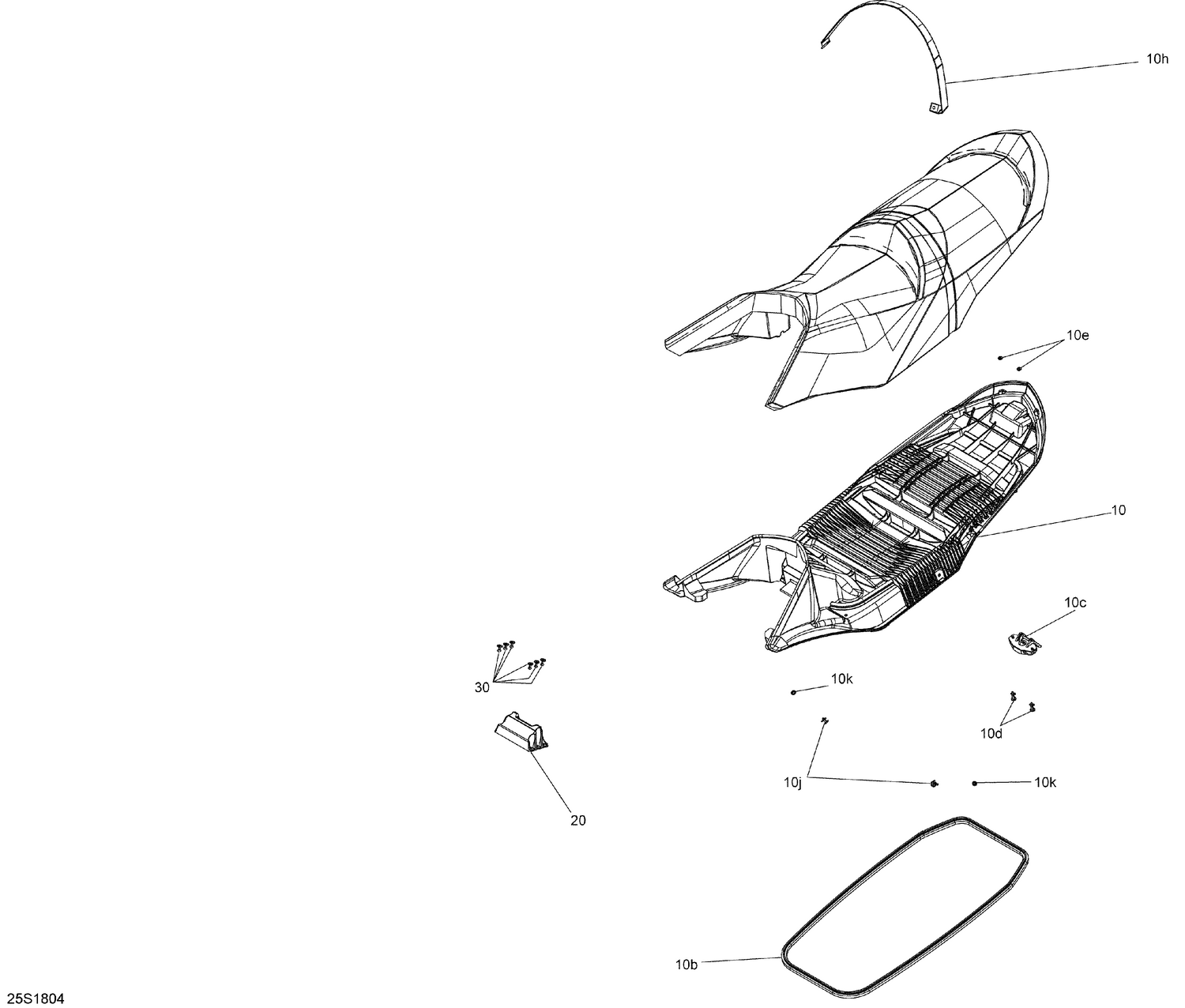

09- Seat RXP - 300
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 219704366 | Was 293200062 Seal |
| 10c | 269700109 | Latch Ass'y |
| 10d | 293150151 | Rivet 1/4" |
| 10e | 234061600 | Stainless Flat Washer M6 |
| 10h | 269002098 | LH SEAT PROTECTOR - Call your local BRP dealership |
| 10j | 269002097 | RH SEAT PROTECTOR - Call your local BRP dealership |
| 10j | 293150067 | Rivet |
| 10k | 293720067 | Grommet |
| 20 | 269002151 | Seat Receptacle |
