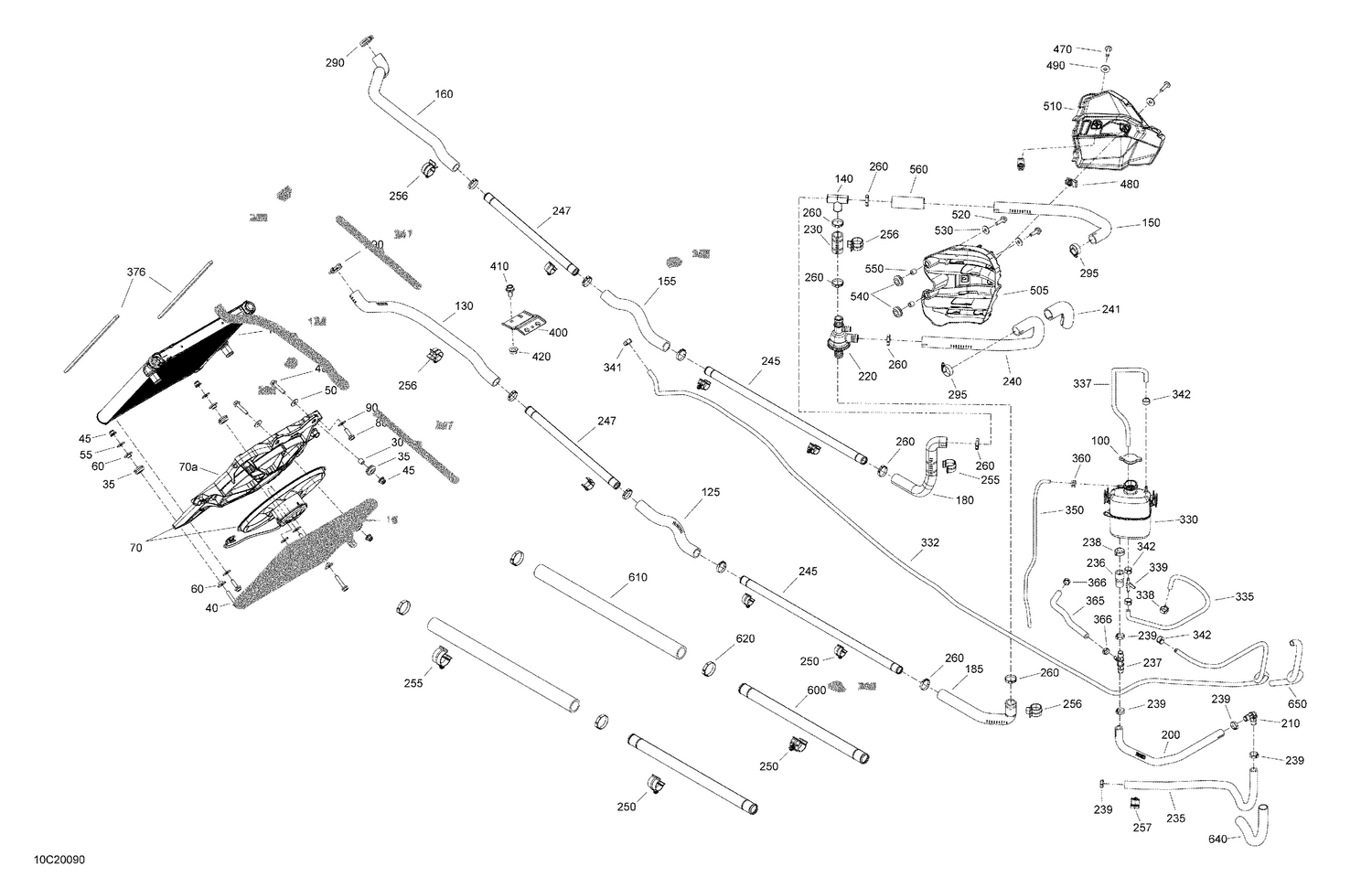

01- Cooling - System
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200703 | Radiator |
| 30 | 293900105 | Bushing |
| 35 | 709000582 | Grommet This part replaces 293720053. |
| 40 | 207663054 | Hex. Flange Screw M6 X 30 |
| 45 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 234062670 | Stainless Steel Flat Washer |
| 55 | 234062670 | Stainless Steel Flat Washer |
| 60 | 710004749 | Shoulder Bushing |
| 70 | 709200588 | Fan |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 125 | 709200764 | Radiator Hose This part replaces 709200671. |
| 130 | 709200765 | Radiator Hose This part replaces 709200590. |
| 140 | 509000219 | T-Fitting |
| 150 | 709200766 | Pump Hose This part replaces 709200592. |
| 155 | 709200767 | Hose Radiator This part replaces 709200670. |
| 160 | 709200768 | Radiator Hose This part replaces 709200725. |
| 180 | 709200769 | Hose This part replaces 709200594. |
| 185 | 709200770 | Hose This part replaces 709200595. |
| 200 | 709200823 | Hose |
| 210 | 293710155 | Elbow Fitting 90 |
| 220 | 709200581 | Thermostat Housing |
| 230 | 709200299 | Hose |
| 235 | 219704443 | Hose |
| 236 | 709200771 | Tank Hose This part replaces 709200623. |
| 237 | 509000996 | T Fitting |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 240 | 709200772 | Thermostat Hose This part replaces 709200597. |
| 241 | 219704428 | Tubing 35 MM 1000MM Long |
| 245 | 709200657 | Heater Tubing |
| 247 | 709200664 | Heater Tubing |
| 250 | 275500963 | Retainer |
| 255 | 275500526 | Retainer |
| 256 | 275500590 | Retainer |
| 257 | 275500963 | Retainer |
| 260 | 509000162 | Gear Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 295 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 330 | 709201323 | Coolant Tank This part replaces 709200412. |
| 332 | 219704416 | Was 415129508 Bleeder Hose |
| 335 | 219704416 | Was 415129508 Bleeder Hose |
| 337 | 219704416 | Was 415129508 Bleeder Hose |
| 338 | 293650047 | Crimp Clamp, 15.3-706R |
| 339 | 293710059 | Y-Fitting |
| 341 | 293650042 | Oetiker Clamp |
| 342 | 293650047 | Crimp Clamp, 15.3-706R |
| 350 | 219704389 | Polyurethane Hose 4000MM Long |
| 360 | 414554800 | Spring Clamp |
| 365 | 219704445 | Hose 9.5MM 3000MM Long |
| 366 | 293650030 | Oetiker Clamp |
| 376 | 219704386 | Seal 3000MM Long |
| 400 | 709200668 | Hose Support |
| 410 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 420 | 233181414 | Hex. Flange Nut M8 |
| 470 | 250000807 | Torx Truss Screw M6 X 25 |
| 480 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 490 | 234062670 | Stainless Steel Flat Washer |
| 505 | 705015779 | Hose Holder This part replaces 705010900. |
| 510 | 705010901 | Hose Support Cover |
| 520 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 540 | 709000582 | Grommet This part replaces 293720053. |
| 550 | 293900105 | Bushing |
| 560 | 219704428 | Tubing 35 MM 1000MM Long |
| 600 | 709200664 | Heater Tubing |
| 610 | 709200709 | Hose |
| 620 | 509000162 | Gear Clamp |
| 640 | 219704402 | Tubing 25 MM 1000MM Long |
