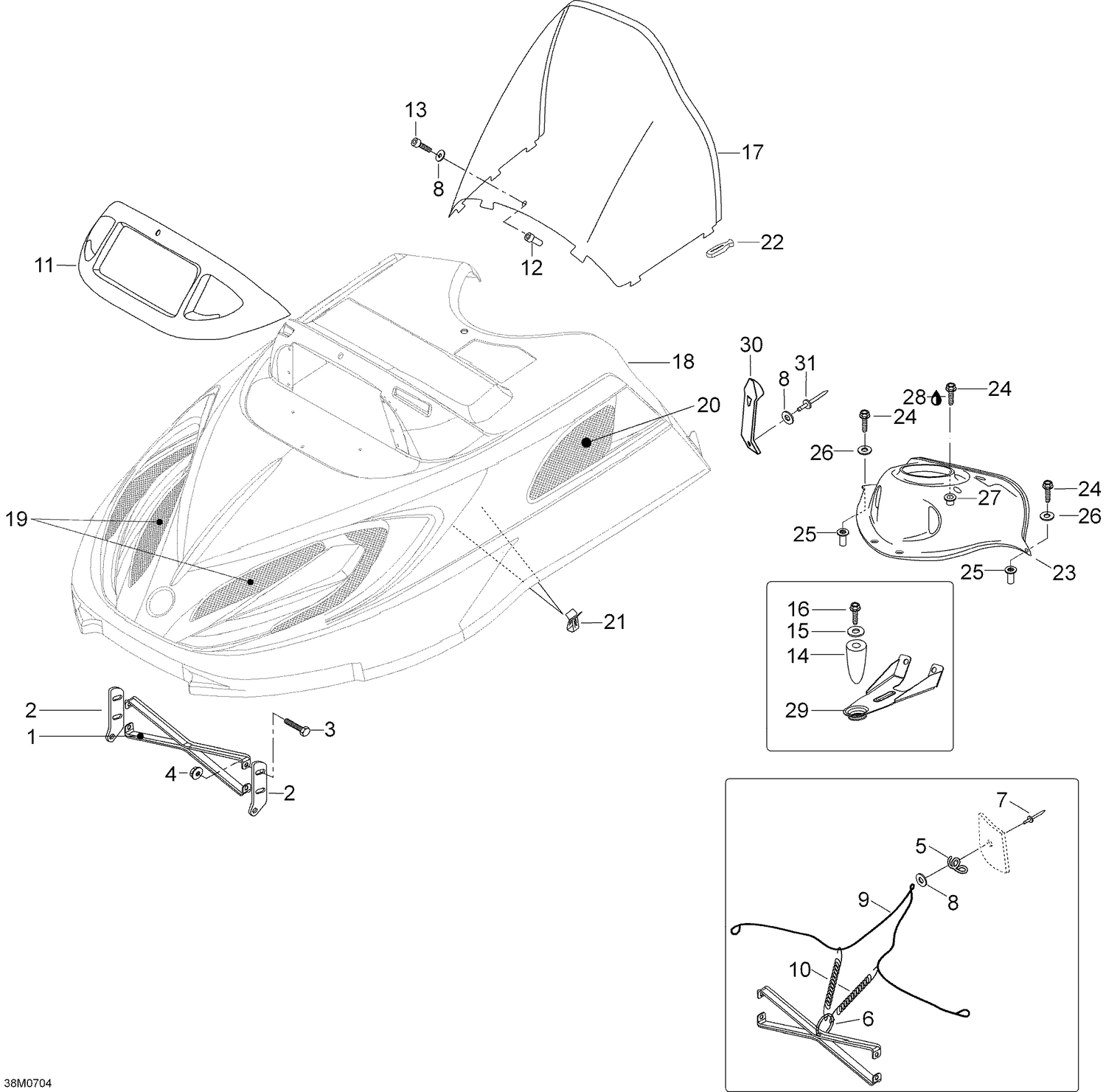

| Ref | Part Number | Description |
|---|
| 1 |
M5246862 |
Hood Reinforcement |
| 2 |
517261100 |
UPPPER HINGE - Call your local BRP dealership |
| 3 |
M40366 |
Screw M5X16 |
| 4 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 5 |
M5442870 |
Cable Keeper |
| 6 |
415058300 |
RING - Call your local BRP dealership |
| 7 |
36005 |
Rivet This part replaces M36005. |
| 8 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 9 |
605351372 |
Retainer Cable |
| 10 |
5442675 |
Spring This part replaces M5442675. |
| 11 |
572079200 |
Lamp Moulding |
| 12 |
250100018 |
NUT M5 - Call your local BRP dealership This part replaces M28050. |
| 13 |
M40358 |
Screw M5 X 30 |
| 14 |
M5446857 |
Guide Pin |
| 15 |
M20038 |
WASHER - Call your local BRP dealership |
| 16 |
M40375 |
Screw |
| 17 |
M5147892 |
WINDSHIELD - Call your local BRP dealership |
| 19 |
M5246261 |
RH Front Grill |
| 19 |
M5246262 |
LH Front Grill |
| 20 |
M5346263 |
LH Side Grill |
| 20 |
M5347250 |
RH Side Grille |
| 21 |
414227300 |
Clip |
| 22 |
570023800 |
Windshield Latch |
| 23 |
605350277 |
Dash |
| 24 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 25 |
28055 |
Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055. |
| 26 |
20117 |
Washer This part replaces M20117. |
| 27 |
M547539 |
DAMPER RUBBER - Call your local BRP dealership |
| 28 |
293800060 |
Loctite 243, 10 ml |
| 29 |
605350221 |
GUIDE PLATE - Call your local BRP dealership |
| 30 |
570025900 |
BLACK LATCH - Call your local BRP dealership |
