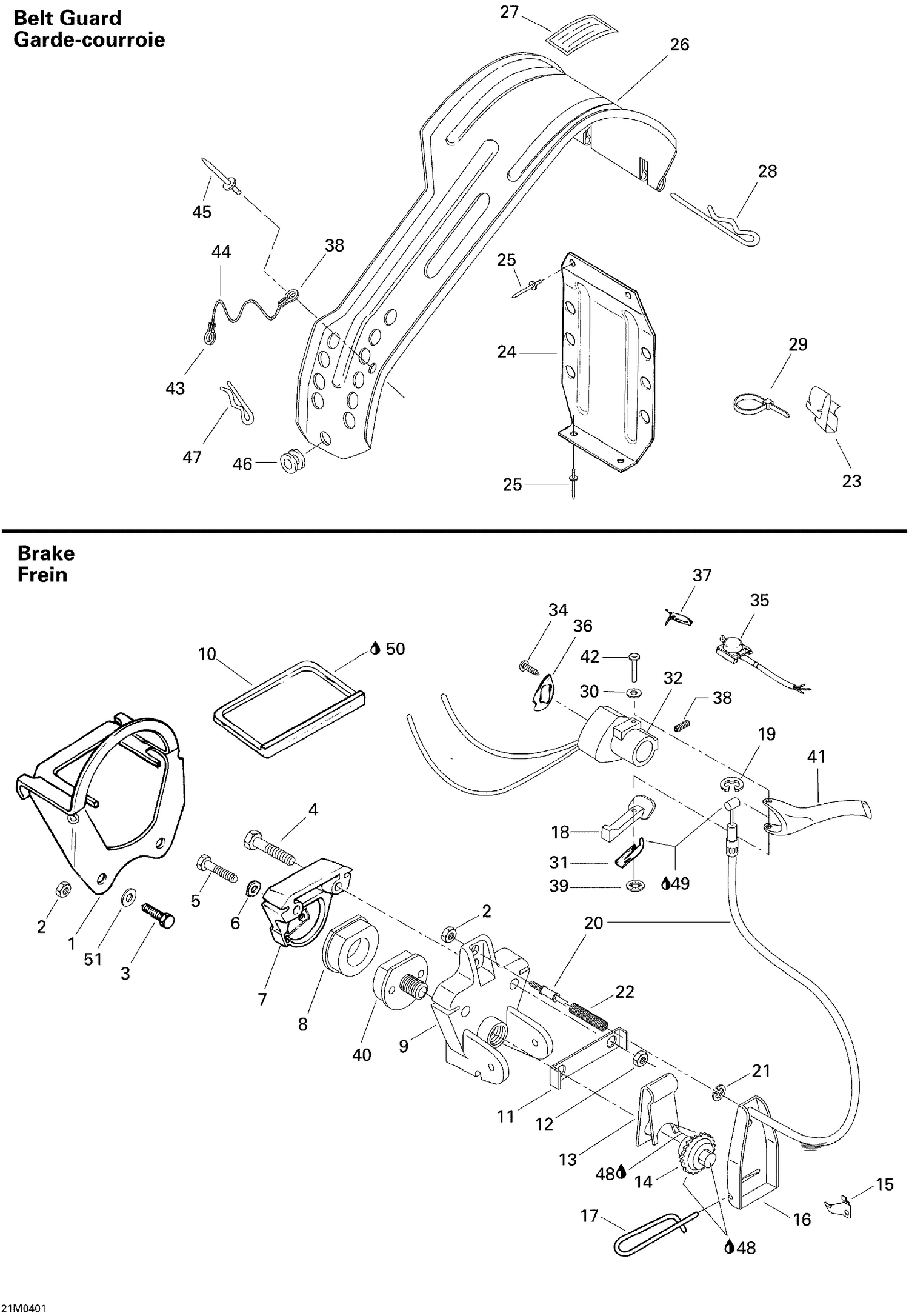

06- Brake And Belt Guard
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507032201 | Welded Caliper Support |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 207162544 | Hex. Screw M6 X 25 |
| 4 | 207085044 | Hex. Screw M8 X 50 |
| 5 | 207151444 | Hex. Screw M5 X 14 |
| 6 | 507023600 | TAB LOCK - Call your local BRP dealership |
| 7 | 414466800 | ANVIL - Call your local BRP dealership |
| 8 | 860700100 | Brake Pad |
| 9 | 507026600 | Caliper Machined |
| 10 | 572013500 | Slider |
| 11 | 507020400 | LOCK-TAB - Call your local BRP dealership |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 |
| 13 | 507020200 | RELEASE SPRING - Call your local BRP dealership |
| 14 | 507032310 | WELDED RATCHET WHEEL - Call your local BRP dealership |
| 15 | 507009400 | RATCHET SPRING - Call your local BRP dealership |
| 16 | 507021500 | LEVER - Call your local BRP dealership |
| 17 | 507032306 | HAIR PIN - Call your local BRP dealership |
| 18 | 572025200 | Brake Lever |
| 19 | 414274500 | Circlip |
| 20 | 507032347 | BRAKE CABLE - Call your local BRP dealership |
| 21 | 371901300 | Circlip |
| 22 | 414460600 | SPRING - Call your local BRP dealership |
| 23 | 414227300 | Clip |
| 24 | Not | Available As Spare Part - Rear Belt Guard |
| 25 | 390402400 | Pop Rivet 3/16" |
| 27 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 28 | 517164600 | Pin |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 414729400 | WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 31 | 507032317 | SPRING - Call your local BRP dealership |
| 33 | 572086500 | BRAKE HOUSING - Call your local BRP dealership |
| 34 | 414473200 | Screw |
| 35 | 415085800 | Dimmer Switch |
| 36 | 507032314 | DIMMER SWITCH - Call your local BRP dealership |
| 37 | 507032318 | Brake Switch |
| 38 | 414440800 | Socket Set Screw M8 X 10 |
| 39 | 389804300 | Push Nut |
| 40 | 860700700 | Pad_Brake Kit - Call your local BRP dealership |
| 41 | 572025700 | BRAKE HANDLE - Call your local BRP dealership |
| 42 | 517229400 | PIN - Call your local BRP dealership |
| 43 | 561502800 | Terminal Ring |
| 44 | Not | Available As Spare Part - Wire |
| 45 | 293150102 | Rivet 3/16" |
| 46 | 414036300 | Grommet |
| 47 | 414575600 | Hair Pin |
| 48 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 49 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 50 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
