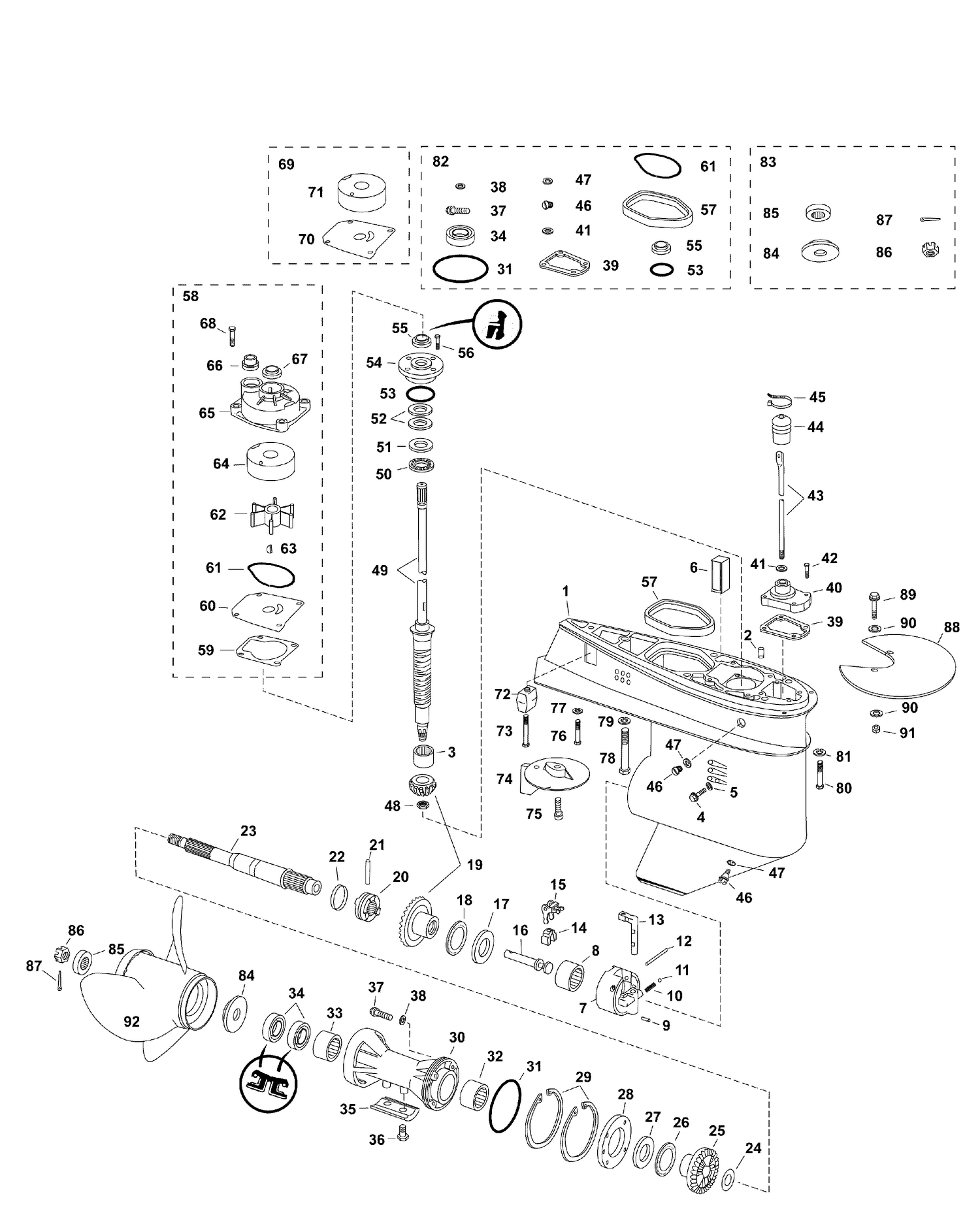

07-1_GEARCASE, F-Type (MRL)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009348 | Grcse&Brg Prime This part replaces 5005458. |
| 45 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 58 | 5006511 | WATER PUMP REPAIR KIT |
| 74 | 0127466 | TRIM TAB |
| 75 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 76 | 0306503 | SCREW, Short |
| 78 | 0331998 | SCREW, Gearcase to housing |
| 82 | 5000309 | GEARCASE SEAL KIT |
| 83 | 5005034 | KIT MATÉRIEL DE MONTAGE D’HÉLICE |
| 88 | 0352345 | SPLASH GUARD |
| 89 | 0341011 | SCREW, Adapter to housing, outer |
