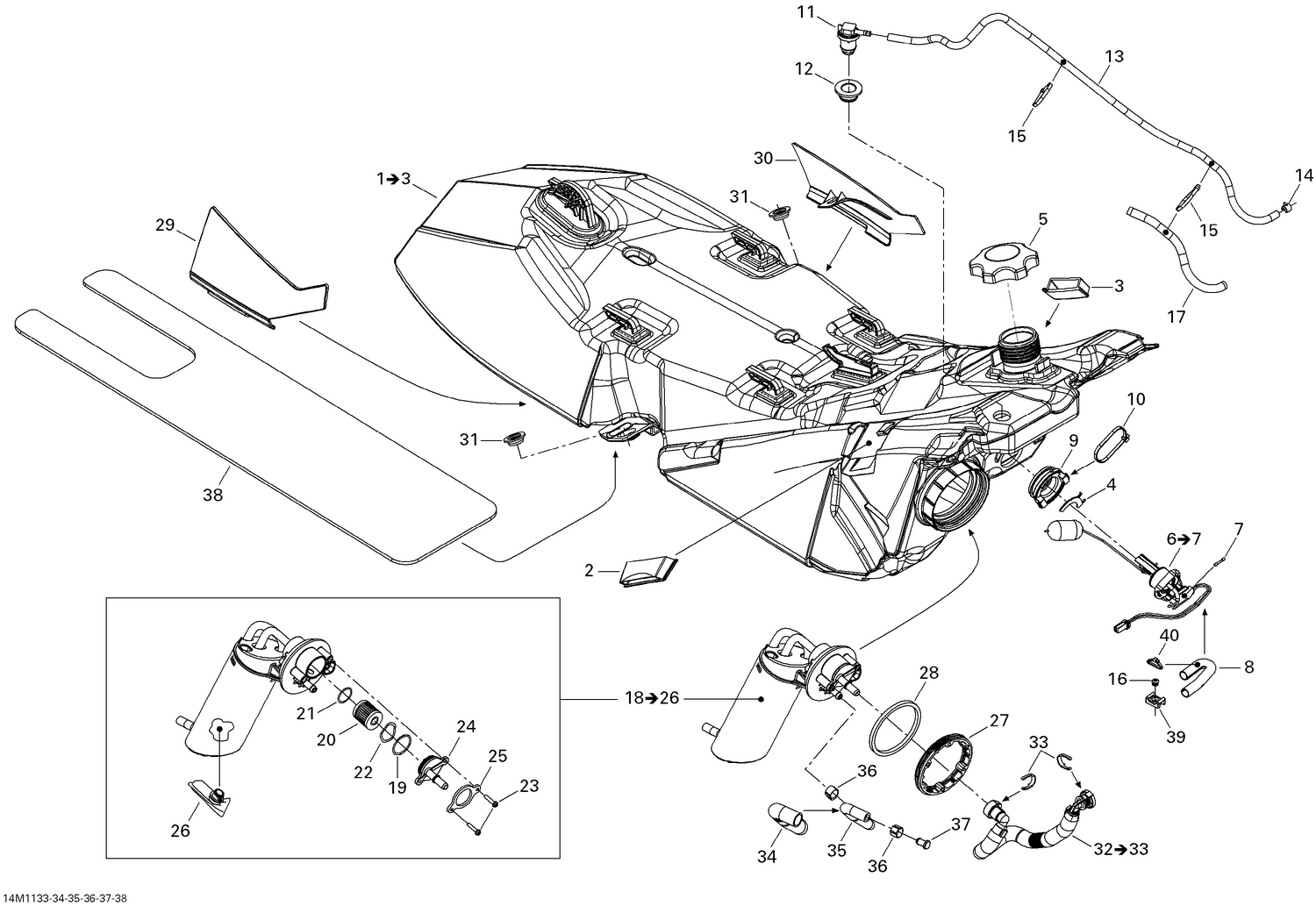

02- Fuel System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033471 | RH Panel Clip |
| 3 | 513033472 | LH Panel Clip |
| 4 | 513033649 | SPACER - Call your local BRP dealership |
| 5 | 513033025 | Fuel Tank Cap |
| 7 | 710001995 | Fuse, 0.5 Ampère |
| 8 | 219704407 | Tubing 10 MM 1000MM Long |
| 9 | 513033606 | Grommet |
| 10 | 293750008 | Tie Wrap 368 mm |
| 11 | 513033842 | Check Valve This part replaces 513033188. |
| 12 | 513033596 | Grommet |
| 13 | 219704410 | Polyurethane Hose 10000Mm Long |
| 14 | 414554800 | Spring Clamp |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 390402000 | Pop Rivet 3/16" |
| 17 | 504153074 | Tube Protector This part replaces 504152900. |
| 19 | 415129509 | O-Ring |
| 20 | 415129510 | Fuel Filter |
| 21 | 415129511 | O-Ring |
| 22 | 415129512 | Wave Washer |
| 23 | 415129513 | Screw |
| 24 | 415129685 | Cover This part replaces 415129514. |
| 25 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 26 | 415129451 | Fuel Filter |
| 27 | 513033180 | Ring |
| 28 | 513033334 | Gasket |
| 29 | XXX | Not Available As Spare Parts |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 513033326 | Shoulder Bushing |
| 33 | 513033135 | Locking Clip |
| 34 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 35 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 36 | 293650047 | Crimp Clamp, 15.3-706R |
| 37 | 293000107 | PLUG, 8 MM - Call your local BRP dealership |
| 38 | 513033588 | Insulating Foam |
| 39 | 515176795 | Tie Rap Mount (screwable) |
