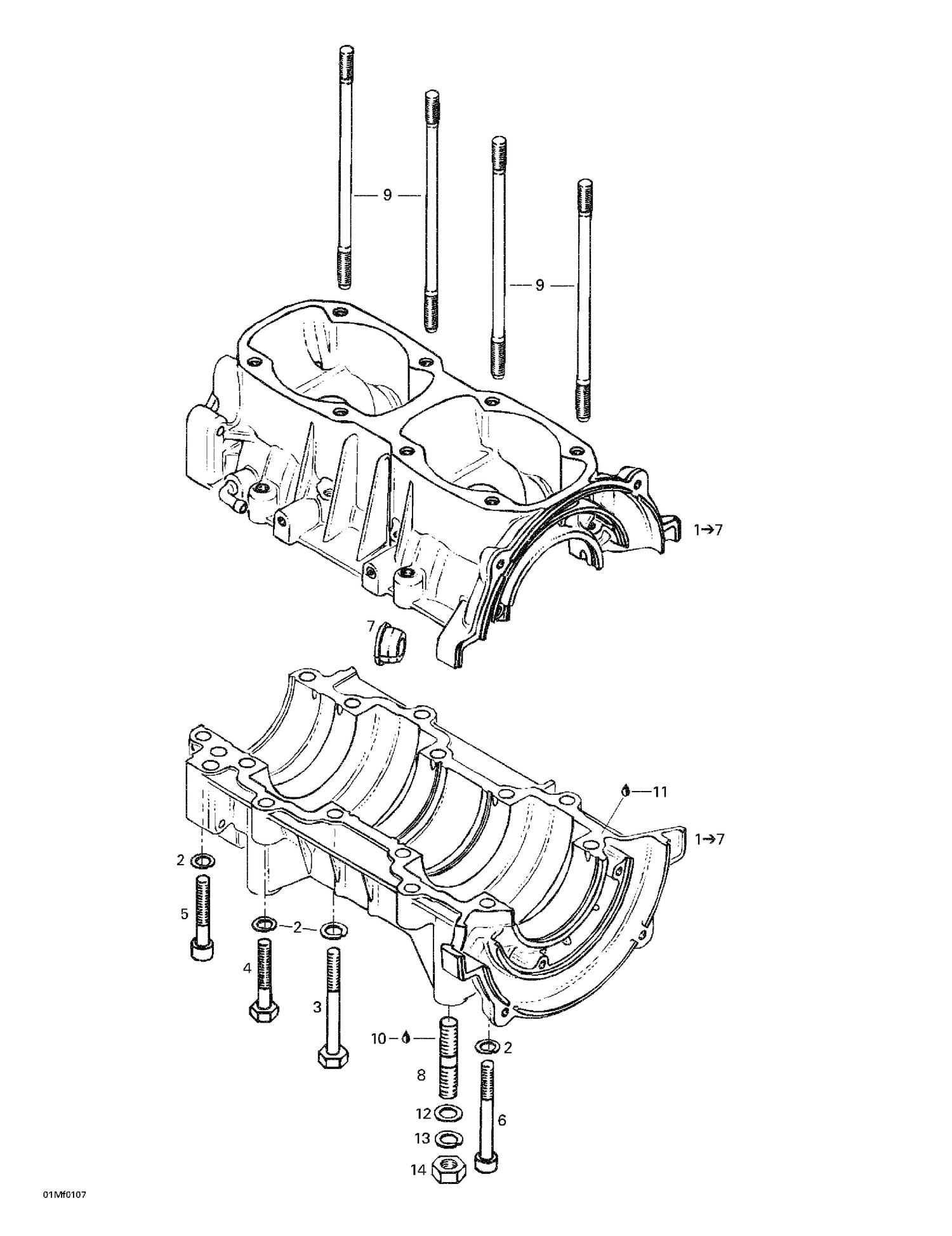

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Hex. Screw M8 X 70 |
| 4 |
207084544 |
Hex. Screw M8 X 45 |
| 5 |
420841561 |
Socket Head Screw M8 X 45 |
| 6 |
420841841 |
SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 7 |
420860962 |
Cable Grommet |
| 8 |
420940190 |
Stud M10 X 29/20 |
| 9 |
420840556 |
Stud M8 X 173.5 |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 12 |
243001410 |
Flat Washer 10 mm |
| 13 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
