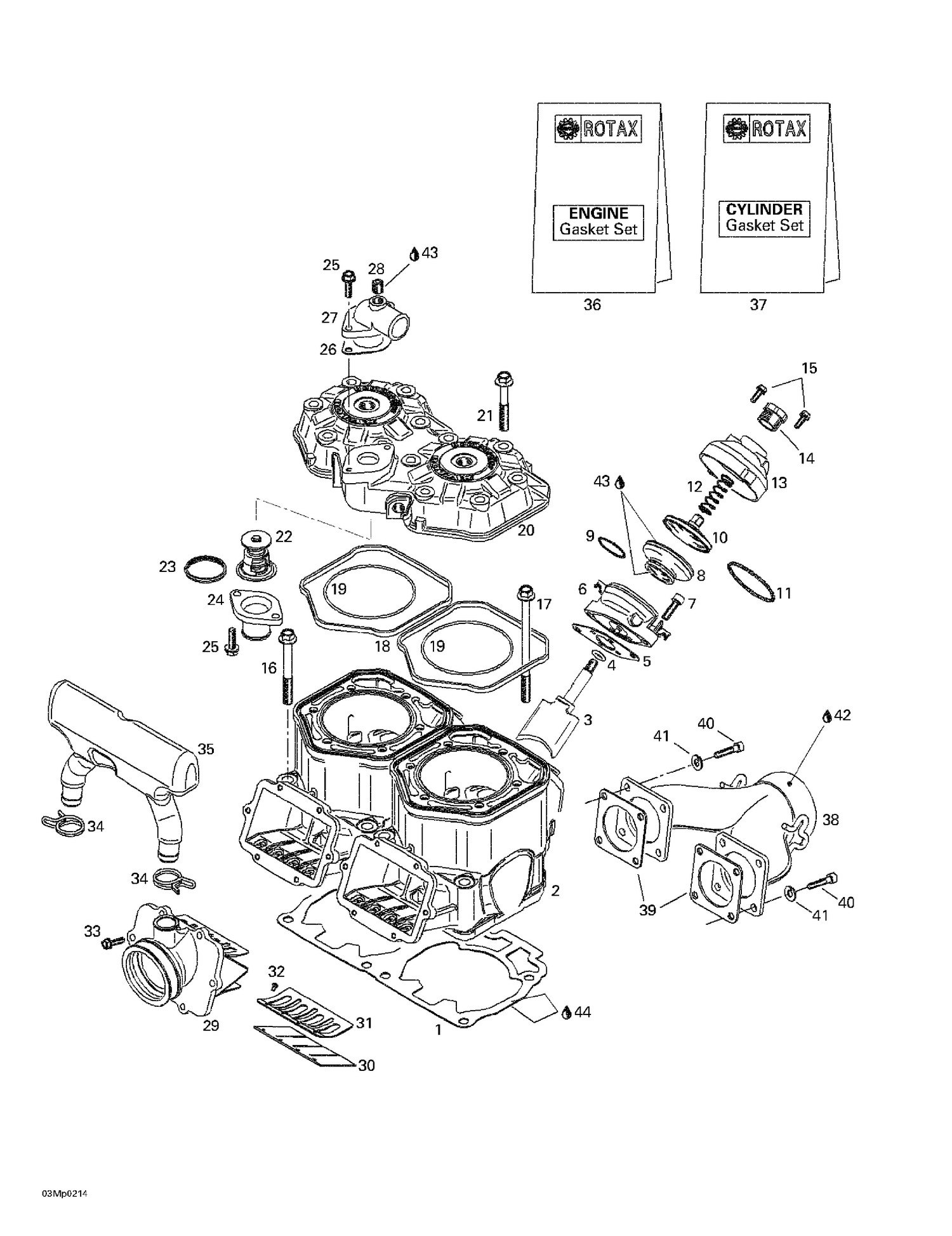

| Ref | Part Number | Description |
|---|
| 1 |
420931839 |
GASKET 0.8 - Call your local BRP dealership |
| 2 |
420923817 |
CYLINDER-NICASIL - Call your local BRP dealership |
| 3 |
420854465 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420430110 |
O-Ring |
| 5 |
420931542 |
Gasket |
| 6 |
420854450 |
Valve Housing |
| 7 |
205062544 |
Socket Head Screw M6 X 25 |
| 8 |
420260729 |
Bellows |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 10 |
420854449 |
Exhaust Valve |
| 11 |
420939281 |
Hose Spring This part replaces 290239048. |
| 12 |
420239952 |
SPRING - Call your local BRP dealership This part replaces 420239940. |
| 13 |
420911559 |
Valve Cover This part replaces 290911558. |
| 14 |
420241221 |
Adjuster Screw |
| 15 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 16 |
420640524 |
Hex. Collar Screw |
| 17 |
420640534 |
Hex. Collar Screw |
| 18 |
420931590 |
Rubber Ring |
| 19 |
420931410 |
O-Ring This part replaces 290931410. |
| 20 |
420923827 |
CYLINDER HEAD COVER - Call your local BRP dealership |
| 21 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 22 |
420922519 |
Thermostat This part replaces 420922516. |
| 23 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 24 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 25 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 26 |
420850339 |
Gasket This part replaces 420850338. |
| 27 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 28 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 30 |
420924680 |
Reed Pedal |
| 31 |
420924695 |
Reed Pedal Stop |
| 32 |
420941215 |
Phillips Screw M3 X 5 |
| 33 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 34 |
420851440 |
CLAMP - Call your local BRP dealership |
| 35 |
420867220 |
Intake Resonator |
| 36 |
420888741 |
Gasket Engine Kit This part replaces 420888740. |
| 37 |
420888745 |
CYLINDER GASKET - Call your local BRP dealership |
| 38 |
420973712 |
Exhaust Manifold |
| 39 |
420931850 |
Gasket |
| 40 |
205062044 |
Socket Head Screw M6 X 20 |
| 41 |
234161471 |
Lock Washer M6, Black |
| 42 |
293800090 |
Sealant, Loctite, 80 ml |
| 43 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
