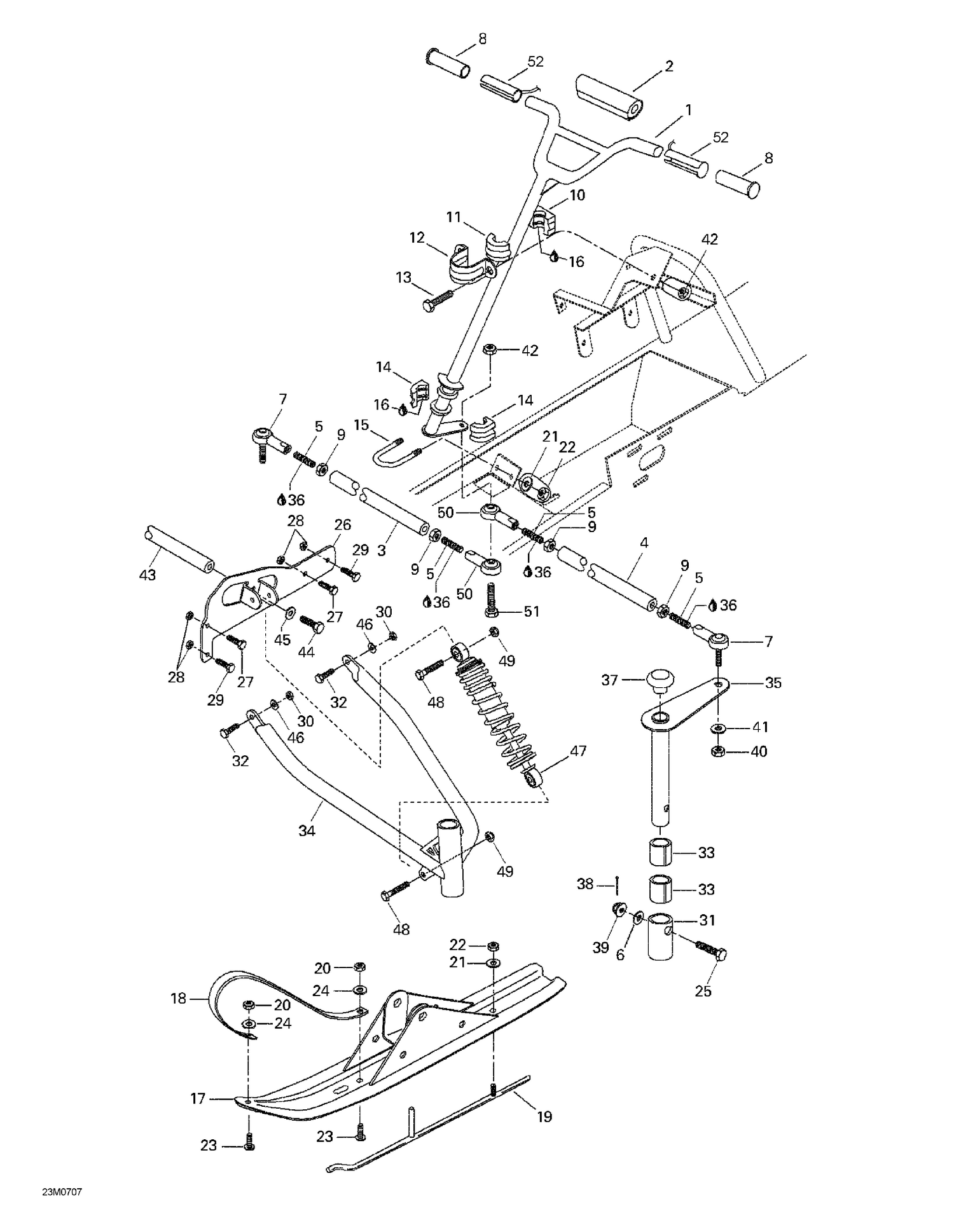

07- Steering System And Ski
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506151696 | Handle Bar |
| 2 | 572103400 | Steering Padding |
| 3 | 506151693 | TIE ROD (SHORT) - Call your local BRP dealership |
| 4 | 506151695 | TIE ROD (LONG) - Call your local BRP dealership |
| 5 | 206285044 | Socket Set Screw M8 x 50 |
| 6 | 234001410 | Flat Washer 10 mm |
| 7 | 415108500 | BALL JOINT - Call your local BRP dealership |
| 8 | 572064100 | HANDLE GRIP - Call your local BRP dealership |
| 9 | 232081414 | Hex. Nut M8 |
| 10 | 572064400 | Bushing |
| 11 | 572064500 | BUSHING - Call your local BRP dealership |
| 12 | 517126200 | Retainer Support |
| 13 | 207182044 | Hex. Screw M8 X 20 |
| 14 | 572067100 | HALF-BUSHING - Call your local BRP dealership |
| 15 | 506060600 | U-clamp |
| 16 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 18 | 572099500 | HANDLE - Call your local BRP dealership |
| 19 | 505068400 | Runner |
| 20 | 232561414 | Elastic Stop Nut M6 |
| 21 | 234081410 | Flat Washer 8 mm |
| 22 | 232581414 | Hex. Elastic Stop Nut M8 |
| 23 | 208562560 | Phillips Screw M6 X 25 |
| 24 | 234061410 | Flat Washer 6 mm |
| 25 | 505070178 | BOLT M10 X 60 - Call your local BRP dealership |
| 26 | 505071188 | LH Upper Bracket |
| 27 | 207661644 | Hex. Flange Screw M6 X 16 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 207662044 | Hex. Flange Screw M6 X 20 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 31 | 505070457 | SPACER - Call your local BRP dealership |
| 32 | 207683044 | Hex. Flange Screw M8 X 30 |
| 33 | 415087300 | CUSHION - Call your local BRP dealership |
| 34 | 505071155 | RH Arm |
| 35 | 505070456 | Ski Leg |
| 36 | 293800060 | Loctite 243, 10 ml |
| 37 | 572079100 | CAP - Call your local BRP dealership |
| 38 | 371801000 | COTTER PIN - Call your local BRP dealership |
| 39 | 232201414 | NUT-HEX.CASTLE DIN.935 - Call your local BRP dealership |
| 40 | 232581414 | Hex. Elastic Stop Nut M8 |
| 41 | 234082410 | Flat Washer 8 mm |
| 42 | 233281414 | Hex. Flange Elastic Nut M8 |
| 43 | 505071192 | CROSS MEMBER - Call your local BRP dealership |
| 44 | 207182044 | Hex. Screw M8 X 20 |
| 45 | 234180411 | WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership |
| 46 | 505071254 | CUSHION - Call your local BRP dealership |
| 47 | A51400145000 | FRONT CUSHION - Call your local BRP dealership |
| 48 | 207004544 | Hex. Screw M10 X 45 |
| 49 | 233201414 | Hex. Flange Elastic Nut M10 |
| 50 | 506151729 | LH BALL JOINT - Call your local BRP dealership |
| 51 | 207084044 | Hex. Screw M8 X 40 |
| 505071159 | Bras | GA - Appelez votre concessionnaire BRP local 505071159 |
| 505071159 | LH | ARM - Call your local BRP dealership 505071159 |
| 505071189 | RH | Upper Bracket 505071189 |
