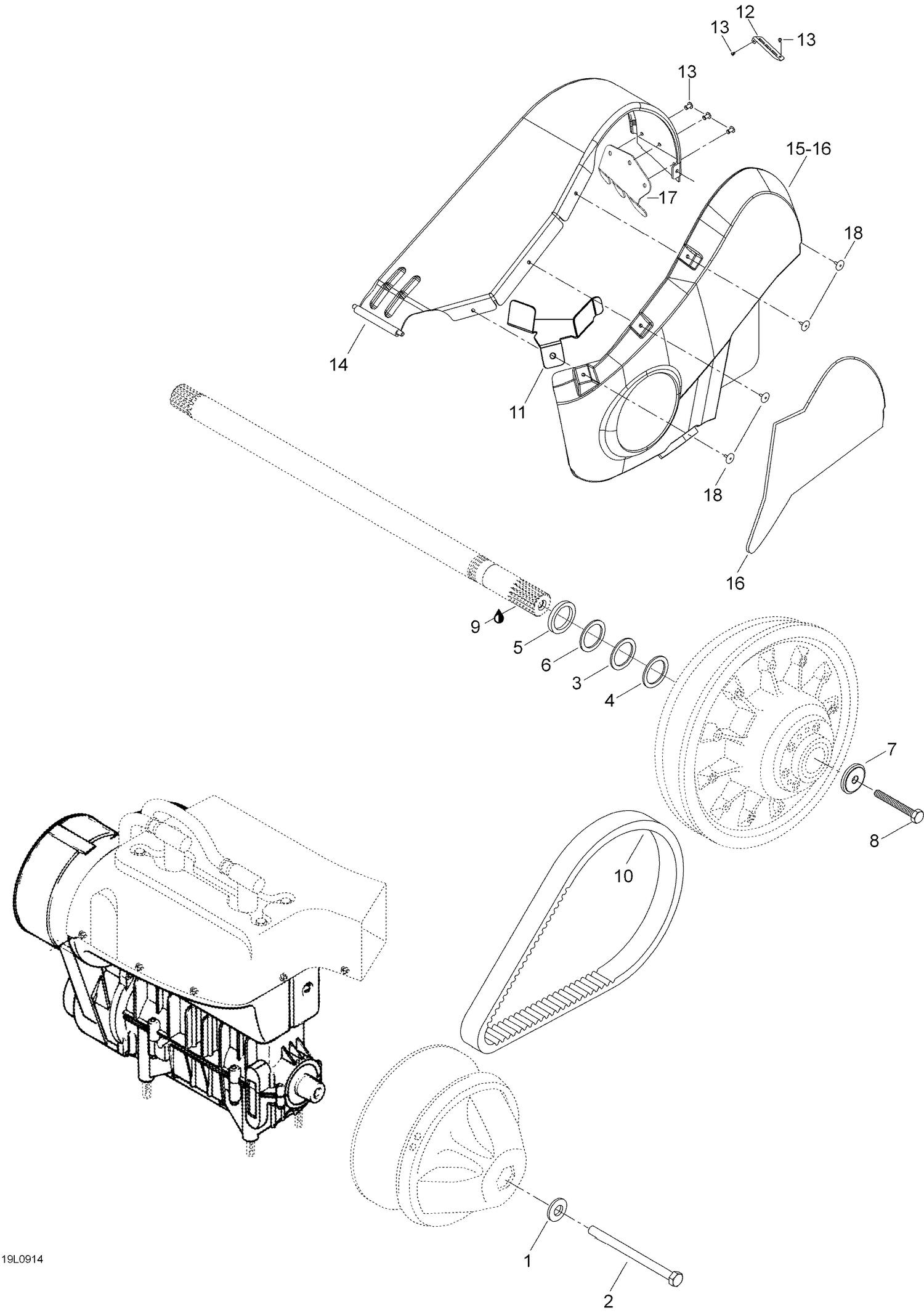

| Ref | Part Number | Description |
|---|
| 1 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 2 |
417113800 |
BOLT - Call your local BRP dealership |
| 3 |
417300252 |
Spacer |
| 4 |
417300265 |
Spacer |
| 5 |
504149100 |
Spacer |
| 6 |
504112000 |
Shim |
| 7 |
517302322 |
Washer |
| 8 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 9 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 10 |
415060600 |
Drive belt |
| 11 |
605353789 |
Support, air intake silencer |
| 12 |
518323105 |
PLATE, BLACK - Call your local BRP dealership |
| 13 |
36108 |
Rivet |
| 14 |
417300269 |
BELT GUARD - Call your local BRP dealership |
| 16 |
417300301 |
SIDE PROTECTOR ASS'Y - Call your local BRP dealership |
| 17 |
605453799 |
Bracket |
