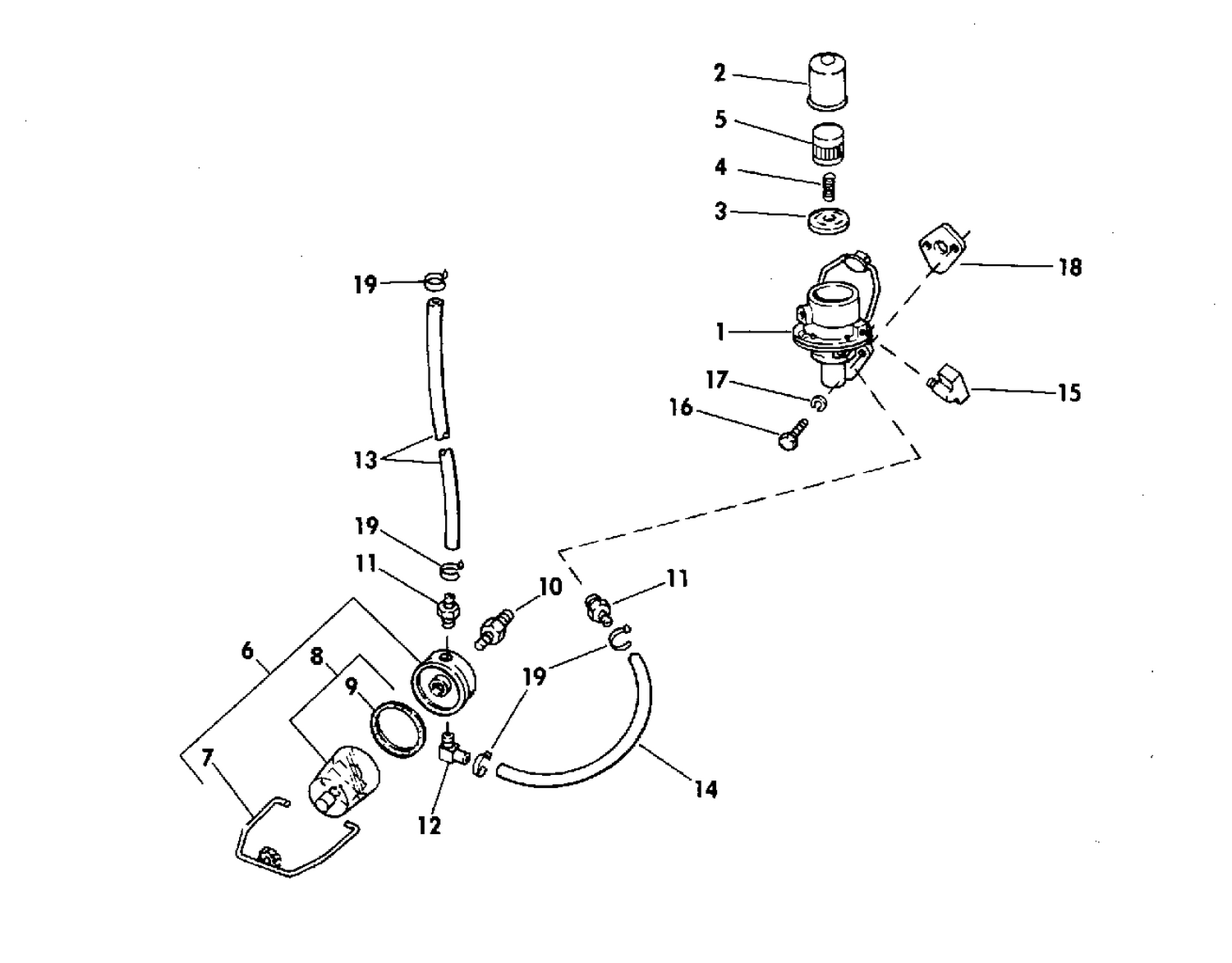

FUEL PUMP GROUP 120,140 & 165 HP STERN DRIVE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0982240 | FUEL PUMP ASSEBMLY This part replaces 0980525. |
| 2 | 0315722 | BOW,Fuel pump |
| 3 | 0315723 | GASKET, Fuel pump |
| 4 | 0315724 | SPRING, Filter element |
| 6 | 0980524 | BOWL ASSEMBLY |
| 7 | 0908872 | BAIL |
| 8 | 0384154 | BOWL & GASKET |
| 10 | 0908635 | STUD, Bowl mounting |
| 11 | 0908636 | FITTING, Bowl inlet |
| 12 | 0908636 | FITTING, Bowl inlet |
| 12 | 0908637 | ELBOW, Bowl inlet |
| 15 | 0310924 | CLAMP, Main cable to adapter |
| 16 | 0306322 | BOLT, Water pump |
| 18 | 3705042 | GASKET, Fuel pump mounting |
| 0381047 | 0381047 | REPAIR KIT, Pump |
