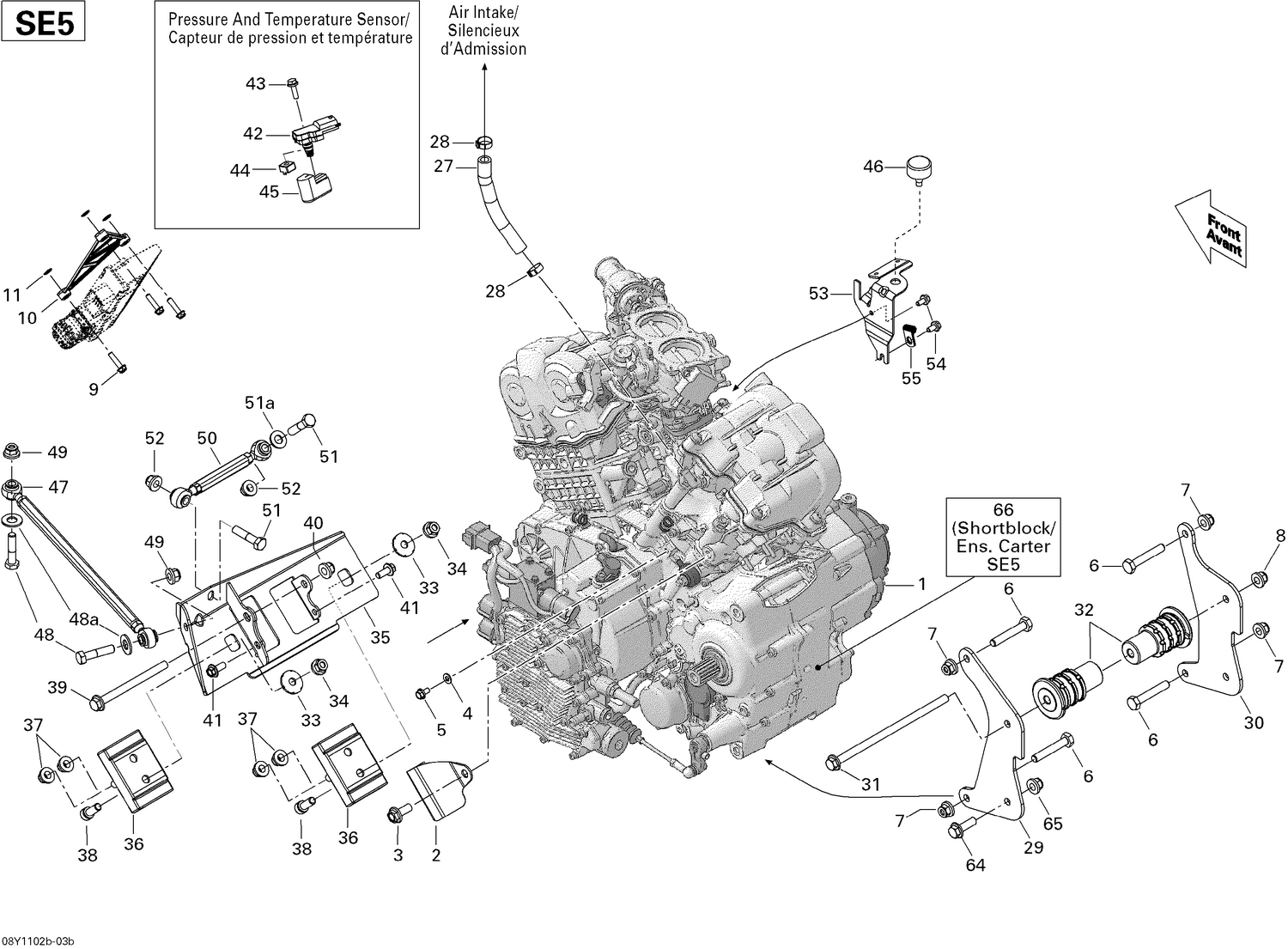

| Ref | Part Number | Description |
|---|
| 1 |
421000709 |
REBUILT - SHORT BLOCK SE5 This part replaces 707000985. |
| 2 |
707000845 |
DEFLECTOR - Call your local BRP dealership |
| 3 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 4 |
224061121 |
Flat Washer |
| 5 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 6 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 8 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 9 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 10 |
710001886 |
Spacer |
| 11 |
732610072 |
Push Nut |
| 27 |
219704436 |
HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership |
| 28 |
293650186 |
Oetiker Clamp |
| 29 |
707000510 |
LH SUPPORT - Call your local BRP dealership |
| 30 |
707000512 |
RH SUPPORT - Call your local BRP dealership |
| 31 |
250000286 |
HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership |
| 32 |
707000814 |
RUBBER MOUNT - Call your local BRP dealership |
| 33 |
512056700 |
Lock Washer |
| 34 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 35 |
707001072 |
FRONT ENGINE SUPORT - Call your local BRP dealership |
| 36 |
707000815 |
RUBBER MOUNT - Call your local BRP dealership |
| 37 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 38 |
205002544 |
Socket Head Screw M10 X 25 |
| 39 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 40 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 41 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 42 |
707000995 |
Pressure And Temperature Sensor |
| 43 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 44 |
269500725 |
M6 Nut Housing Ass'y |
| 45 |
707000586 |
Foam Filter |
| 46 |
708000758 |
Rubber Stopper |
| 47 |
707000816 |
TIE ROD ASS'Y - Call your local BRP dealership |
| 48 |
207004544 |
Hex. Screw M10 X 45 |
| 48a |
234001410 |
Flat Washer 10 mm |
| 49 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 50 |
707001001 |
TIE ROD ASS'Y - Call your local BRP dealership |
| 51 |
207004544 |
Hex. Screw M10 X 45 |
| 51a |
234001410 |
Flat Washer 10 mm |
| 52 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 53 |
707000756 |
Intake Support |
| 54 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 55 |
415052400 |
Bracket |
| 64 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 65 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
