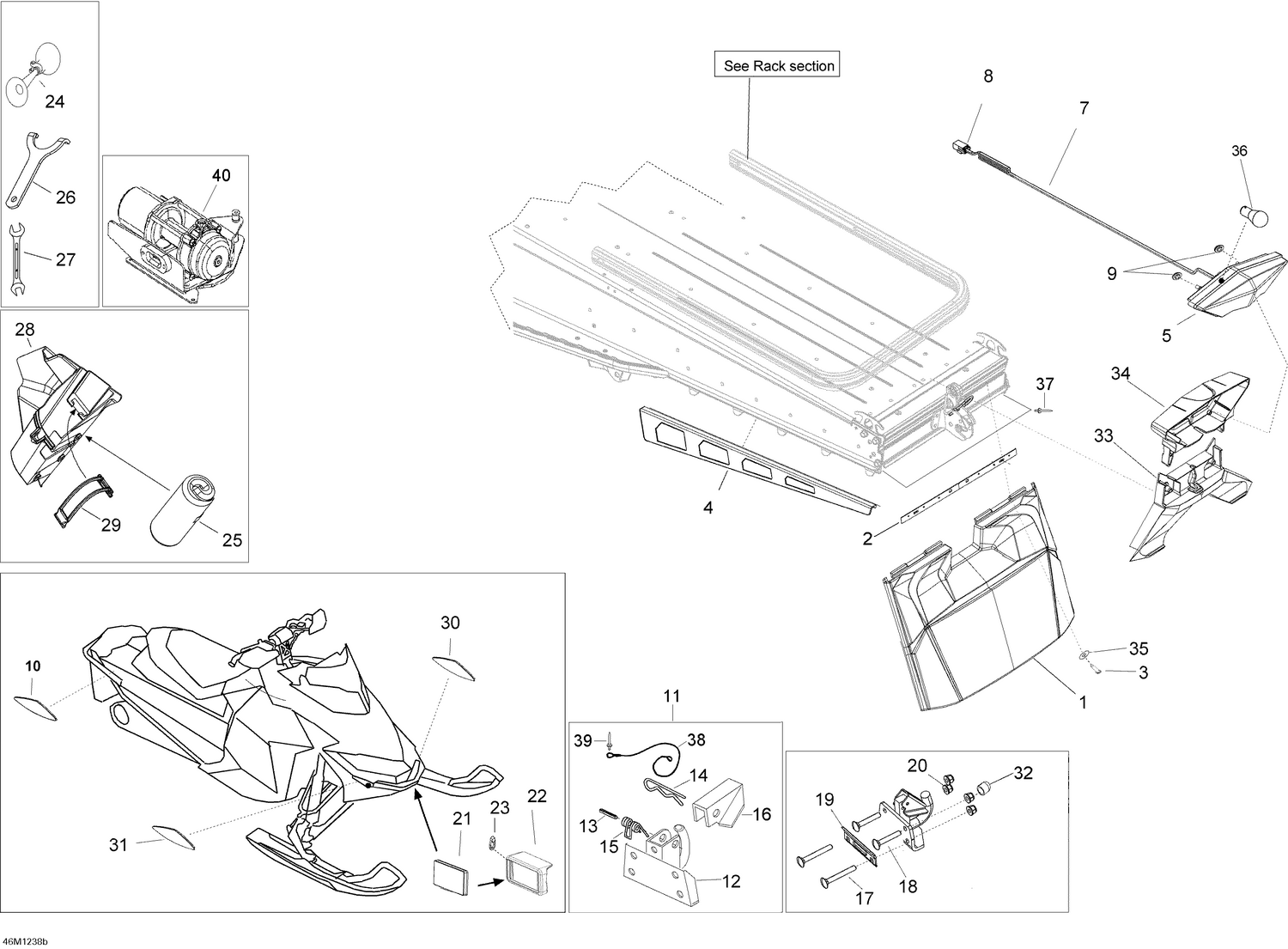

| Ref | Part Number | Description |
|---|
| 1 |
520001410 |
Black, Snow Guard Long This part replaces 520001094. |
| 2 |
520001021 |
Plate |
| 3 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 4 |
520000693 |
RH Protector |
| 4 |
520000694 |
LH Protector |
| 5 |
520000587 |
Rear Light Ass'y |
| 7 |
520000849 |
Rear Wiring Harness |
| 8 |
515175494 |
Male Housing, 3 Circuits |
| 9 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 10 |
705002423 |
Amber, Lateral Reflector |
| 11 |
520001774 |
Hitch Ass'y This part replaces 520001039. |
| 12 |
Not |
Available As Spare Part - Hook Hitch |
| 13 |
41012 |
Pin This part replaces M41012. |
| 14 |
41029 |
Hair pin This part replaces M41029. |
| 15 |
545693 |
SPRING - Call your local BRP dealership This part replaces M545693. |
| 16 |
520001041 |
LOCKING PLATE - Call your local BRP dealership |
| 17 |
207784044 |
Bolt Carriage M8 X 40 |
| 18 |
207782544 |
Carriage Bolt, M8 X 25 |
| 19 |
520000727 |
Plate |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 21 |
M21118 |
White Reflector |
| 22 |
520000871 |
Deep Black, Reflector Support |
| 23 |
M27120 |
Tie Rap 2.4x200 |
| 24 |
549011291 |
Horn |
| 25 |
529000065 |
Tool Kit This part replaces 529000054. |
| 26 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 27 |
Not |
Available As Spare Part - Wrench |
| 28 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 29 |
520000528 |
Latch |
| 30 |
520001601 |
Yellow, LH Reflector This part replaces 520000844. |
| 31 |
520001600 |
Yellow, RH Reflector This part replaces 520000843. |
| 32 |
28056 |
Cover This part replaces M28056. |
| 33 |
511000559 |
Rear Light Support |
| 34 |
511000764 |
Rear Light Cover |
| 35 |
250200025 |
Washer M5 |
| 36 |
520000758 |
Bulb |
| 37 |
293150163 |
Rivet Hucklok |
| 38 |
M5446839 |
RETAINER CABLE - Call your local BRP dealership |
| 39 |
390909100 |
Avex Rivet |
