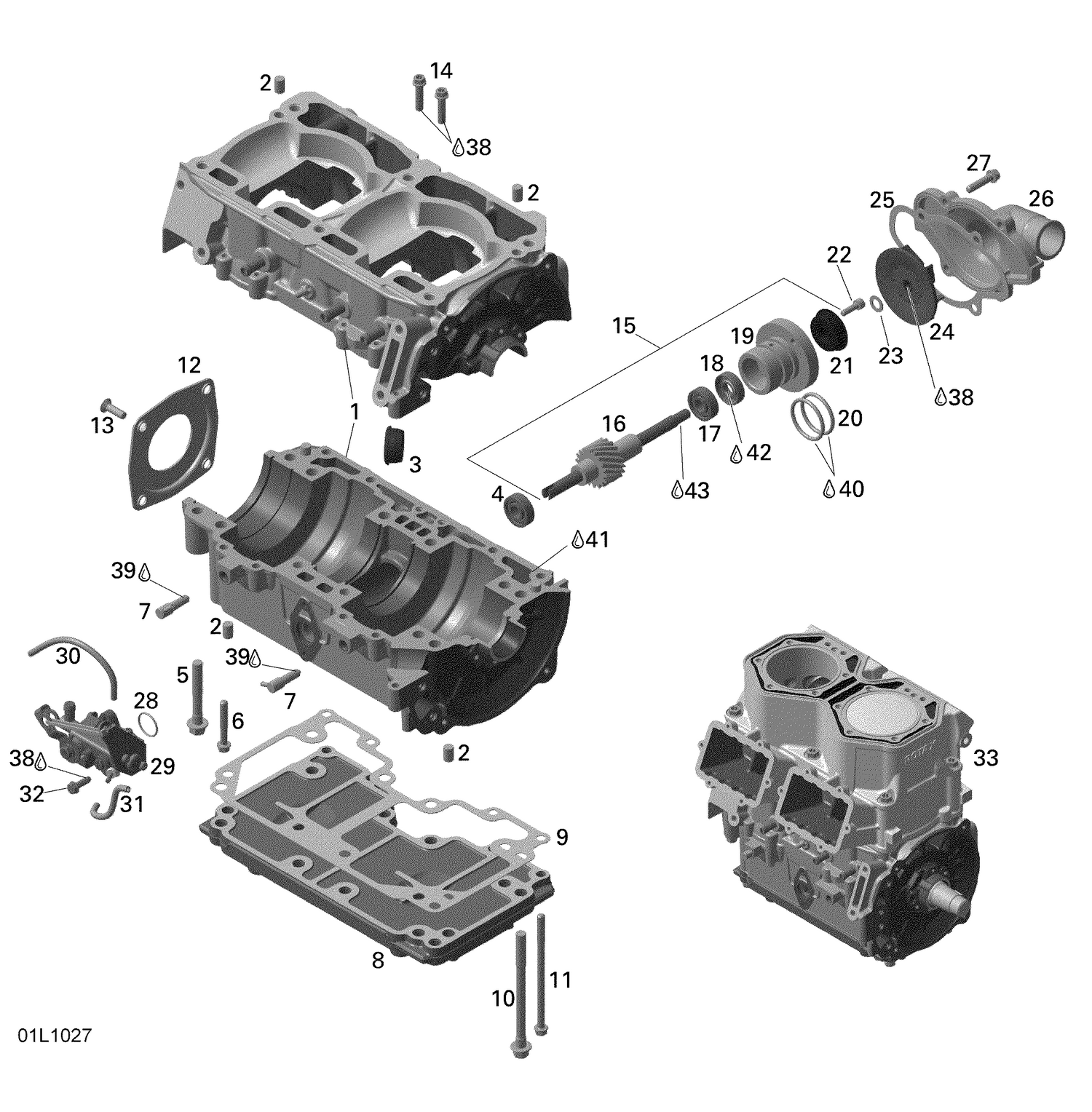

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420860965 |
Kaapelin läpivienti |
| 4 |
420232100 |
Ball Bearing |
| 5 |
420941627 |
Hex. Screw M8 X 56.5 |
| 6 |
420440282 |
Flanged Torx Screw M6 X 40 |
| 7 |
420956511 |
Check Valve This part replaces 420956510. |
| 8 |
420812683 |
ENGINE SUPPORT - Call your local BRP dealership |
| 9 |
420430070 |
Gasket Engine Support |
| 10 |
420941518 |
Screw M8x105 This part replaces 420941517. |
| 12 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 13 |
420941436 |
Screw M6 X 20 |
| 14 |
420440234 |
Flanged Torx Screw M6 X 25 This part replaces 420440232. |
| 16 |
Not |
Available As Spare Part - Waterpump/oilpump shaft |
| 17 |
420232100 |
Ball Bearing |
| 18 |
420230195 |
Oil seal This part replaces 420230196. |
| 19 |
Not |
Available As Spare Part - Step collar |
| 20 |
420950890 |
O-Ring |
| 21 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 22 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 23 |
420944033 |
Washer 8.4 |
| 24 |
420922805 |
Water Impeller |
| 25 |
420430051 |
Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050. |
| 26 |
420822280 |
Water Pump Housing |
| 27 |
420440234 |
Flanged Torx Screw M6 X 25 This part replaces 420440232. |
| 28 |
293300041 |
O-ring |
| 30 |
414413800 |
Oil line P.T.O side 115 mm |
| 31 |
414413800 |
Oil line P.T.O side 115 mm |
| 32 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 33 |
300079708 |
Short block engine |
| 38 |
293800060 |
Liima Loctite 243, 10ml |
| 39 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 40 |
Not |
Available As Spare Part - Multi purpose grease |
| 41 |
Not |
Available As Spare Part - Loctite 5910 |
| 42 |
420899271 |
Klueber petamo, 250gr. Chy 133 |
