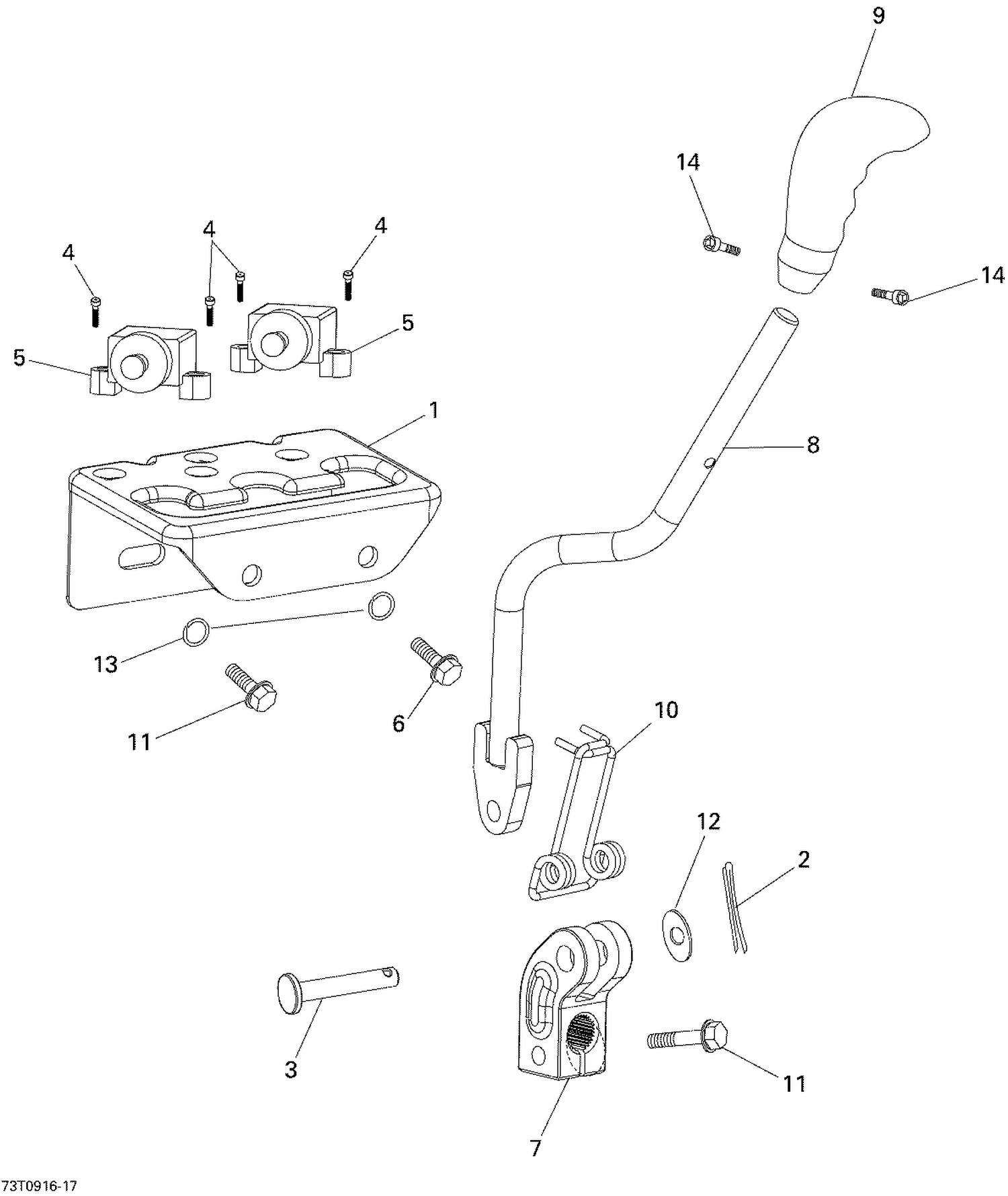

05- Shift Lever
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V72101DGF040 | Shift Plate |
| 2 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 3 | V0226MAF020 | Pin |
| 4 | V935000501501 | BOLT - Call your local BRP dealership This part replaces A9350005015. |
| 5 | V35152DGF060 | Switch This part replaces V35152DGF050. |
| 6 | 207661644 | Hex. Flange Screw M6 X 16 |
| 7 | V72315MAD040 | Support Shifter This part replaces V72315MAD020. |
| 8 | V72314DGF050LL | Shifter This part replaces V72314DGF040. |
| 9 | V72201CEK040LL | Handle This part replaces V72201CEK020. |
| 10 | V54294MAF030LL | Spring This part replaces V54294MAF010. |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | V941010816015LL | Washer This part replaces V941010816015. |
| 13 | 234161601 | Lock Washer Helical M6 |
