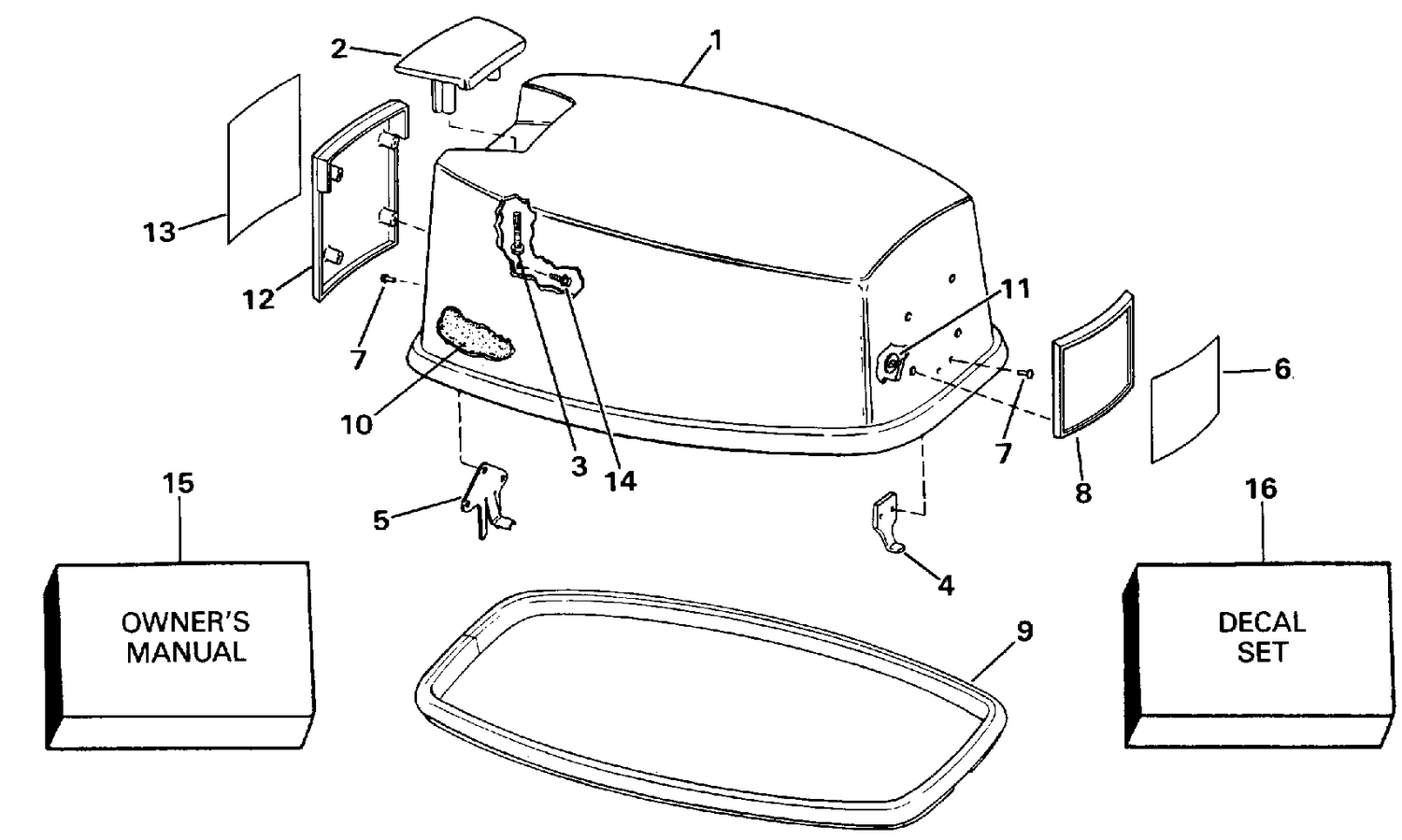

ENGINE COVER - JOHNSON
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432410 | ENGINE COVER ASSY. |
| 1 | 0432412 | ENGINE COVER ASSY. |
| 3 | 0330323 | ELBOW, Connector to pump |
| 4 | 0320400 | HOOK, Engine cover |
| 6 | 0334484 | PLATE, Frame, front, 25 |
| 6 | 0334487 | PLATE, Frame, front, 30 |
| 8 | 0331434 | APPLIQUE |
| 10 | 0334603 | SOUND BLANKET Top |
| 10 | 0334604 | SOUND BLANKET, Front |
| 10 | 0334605 | SOUND BLANKET, Front |
| 10 | 0334606 | SOUND BLANKET, Stbd |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 12 | 0334529 | FRAME, Rear |
| 13 | 0334483 | DECAL, Owner's attention |
| 13 | 0334488 | PLATE, Frame, front, 30 |
| 15 | 0433285 | OWNER'S MANUAL |
| 16 | 0433644 | DECAL SET |
| 110a | XXX | Not Available As Spare Parts |
| 110b | 511000822 | Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 370 | 520002921 | Radiator Trim |
| 375 | 520002930 | Wire Protector |
| 377 | 520001722 | Cap |
