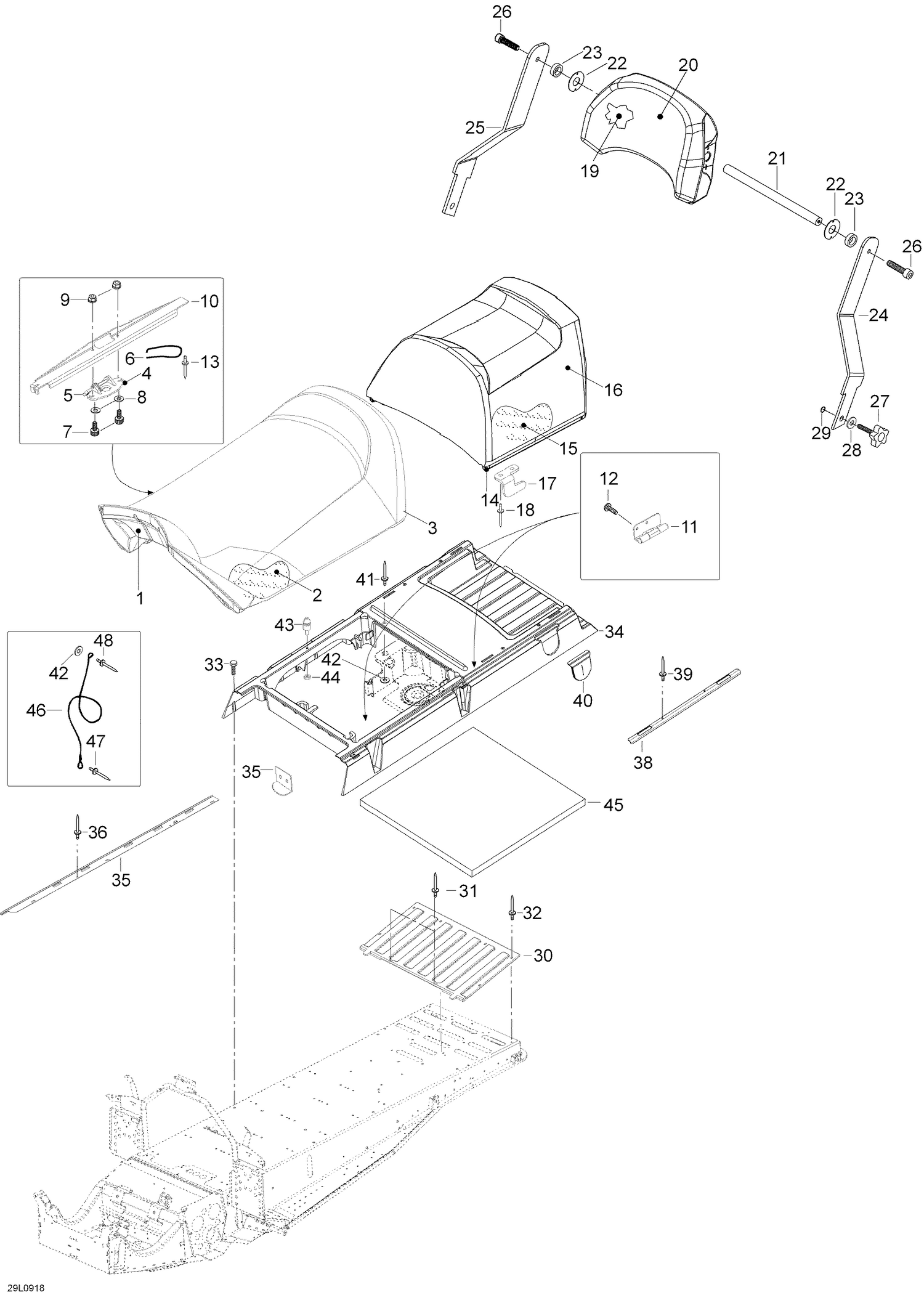

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Foam, front |
| 3 |
605255216 |
SEAT FRONT COVER, SUV - Call your local BRP dealership |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700017 |
Spring |
| 7 |
40276 |
Socket head screw M6 x 25 |
| 8 |
20003 |
Washer A6,4 |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
605351798 |
Hinge |
| 12 |
40890 |
Wronic-screw 4,2 x 16 |
| 13 |
36088 |
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605255691 |
REAR SEAT FOAM - Call your local BRP dealership |
| 16 |
605255218 |
SEAT COVER, SUV - Call your local BRP dealership |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet |
| 19 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 20 |
605355498 |
BACKREST COVER - Call your local BRP dealership |
| 21 |
605355357 |
BACKREST AXLE - Call your local BRP dealership |
| 22 |
605355358 |
WASHER - Call your local BRP dealership |
| 23 |
510004378 |
Rubber shim |
| 24 |
605355499 |
LH ARM - Call your local BRP dealership |
| 25 |
605355500 |
RH ARM - Call your local BRP dealership |
| 26 |
605640010 |
SCREW M10X20 - Call your local BRP dealership |
| 27 |
510003533 |
Handle M8 x 35 |
| 28 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 29 |
414484400 |
O-ring |
| 30 |
605255587 |
FRAME COVER - Call your local BRP dealership |
| 31 |
36036 |
Rivet |
| 32 |
36037 |
Rivet |
| 33 |
605640022 |
Screw M6 x 16 |
| 34 |
605155585 |
SEAT BASE - Call your local BRP dealership |
| 35 |
605255761 |
Tie for Seat box - Call your local BRP dealership |
| 35 |
605255762 |
RH SEAT BRACKET - Call your local BRP dealership |
| 36 |
36108 |
Rivet |
| 37 |
605455789 |
Support |
| 38 |
605355816 |
REAR SEAT SUPPORT - Call your local BRP dealership |
| 39 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 40 |
605355589 |
CAP - Call your local BRP dealership |
| 41 |
36009 |
Rivet |
| 42 |
20008 |
Washer A5,3 |
| 43 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 45 |
605355635 |
FOAM - Call your local BRP dealership |
| 46 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 47 |
36037 |
Rivet |
