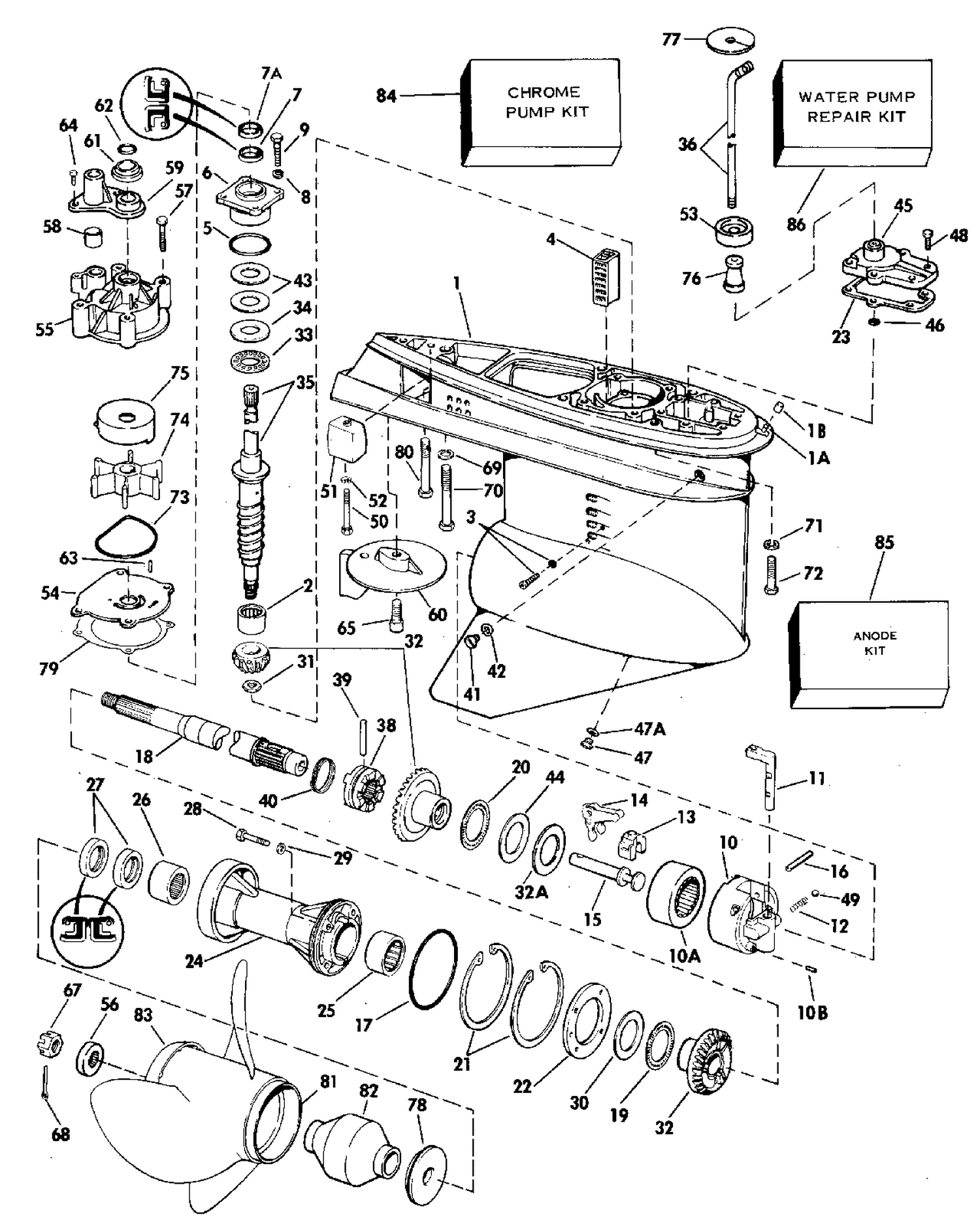

| Ref | Part Number | Description |
|---|
| 1 |
0393216 |
GEARCASE & BEARING ASSY. |
| 1 |
0393461 |
GEARCASE & BEARING ASSY. |
| 1A |
0326266 |
FITTING |
| 17 |
0305123 |
O RING This part replaces 0321119. |
| 18 |
0395209 |
PROP SHAFT ASSY This part replaces 0391472. |
| 21 |
0321171 |
RETAINING RING |
| 22 |
0321174 |
PLUG, Large |
| 24 |
0397094 |
BEARING HOUSING & SEAL ASSY This part replaces 0393300. |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 32 |
0983141 |
FORWARD GEAR & PINION ASSY This part replaces 0391289. |
| 32 |
5004597 |
Gearset This part replaces 0392166. |
| 32A |
0327755 |
SHIM, Fwd, gear (.019) |
| 35 |
5000775 |
Kit Ayd/Shaft-20 This part replaces 0394615. |
| 36 |
0324407 |
SHIFT ROD |
| 37 |
0910211 |
BOOT, Battery cable |
| 38 |
0910198 |
SHIFTER, Clutch dog |
| 43 |
0314742 |
SHIM BEARING HOUSING |
| 48 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 50 |
0322000 |
SCREW, Starter to crankcase |
| 51 |
0327482 |
BLOCK, Gearcase |
| 52 |
0303886 |
LOCKWASHER |
| 54 |
0435027 |
CUP & PLATE This part replaces 0327782. |
| 55 |
0393508 |
IMPELELR HOUSING ASSY. |
| 57 |
0323626 |
SCREW |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327810. |
| 63 |
0323950 |
KEY, Drive shaft to impeller |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 68 |
0309955 |
COT PIN,Prop nut |
| 70 |
0331998 |
SCREW, Gearcase to housing This part replaces 0330264. |
| 72 |
0330139 |
SCREW, Gearcase to exhaust hsg. |
| 73 |
0321120 |
SEAL |
| 75 |
0327781 |
CUP, Impeller |
| 77 |
0322302 |
SEAL, Adapter to frame |
| 78 |
0333592 |
THRUST BUSHING This part replaces 0321173. |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 81 |
0387158 |
PEOPELLER, 15-1/2 x 13 |
| 81 |
0387159 |
PROP,15-1/2x15 |
| 81 |
0387161 |
PROP,14-1/2x19 |
| 81 |
0387163 |
PROP,14-1/2x23 |
| 81 |
0387995 |
PROP, 14-1/2 x 24 sstr |
| 81 |
0387996 |
PROP, 14-1/2 x 26 sstr |
| 81 |
0387997 |
PROP.14-1/2X28SSTR |
| 81 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 81 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 81 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 81 |
0389925 |
PROP, 15 x 16 SST |
| 81 |
0390725 |
PROP, 14 x 25 SST |
| 81 |
0390831 |
PROP, 14-1/2 x 14 SST |
| 81 |
0391201 |
PROP, 14-1/2 x 19 |
| 81 |
0391202 |
PROP, 14-1/2 x 21 |
| 81 |
0391290 |
PROP, 15 x 17 SST |
| 81 |
0391863 |
PROPELLER, 14 1/2 X 27 OMC SRX |
| 81 |
0391864 |
PROPELLER, 14 1/2 x 29 OMC SRX |
| 81 |
0765187 |
PROPELLER, WDEX Models This part replaces 0387160. |
| 84 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0392749. |
| 85 |
0392160 |
ANODE KIT |
| 86 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0393082. |
| 0307853 |
0307853 |
O RING |
| 0393457 |
0434417 |
GEARCASE ASSY., Complete This part replaces 0393457. |
| 0393459 |
0434417 |
GEARCASE ASSY., Complete This part replaces 0393459. |
| 0395727 |
0434417 |
GEARCASE ASSY., Complete This part replaces 0395727. |
