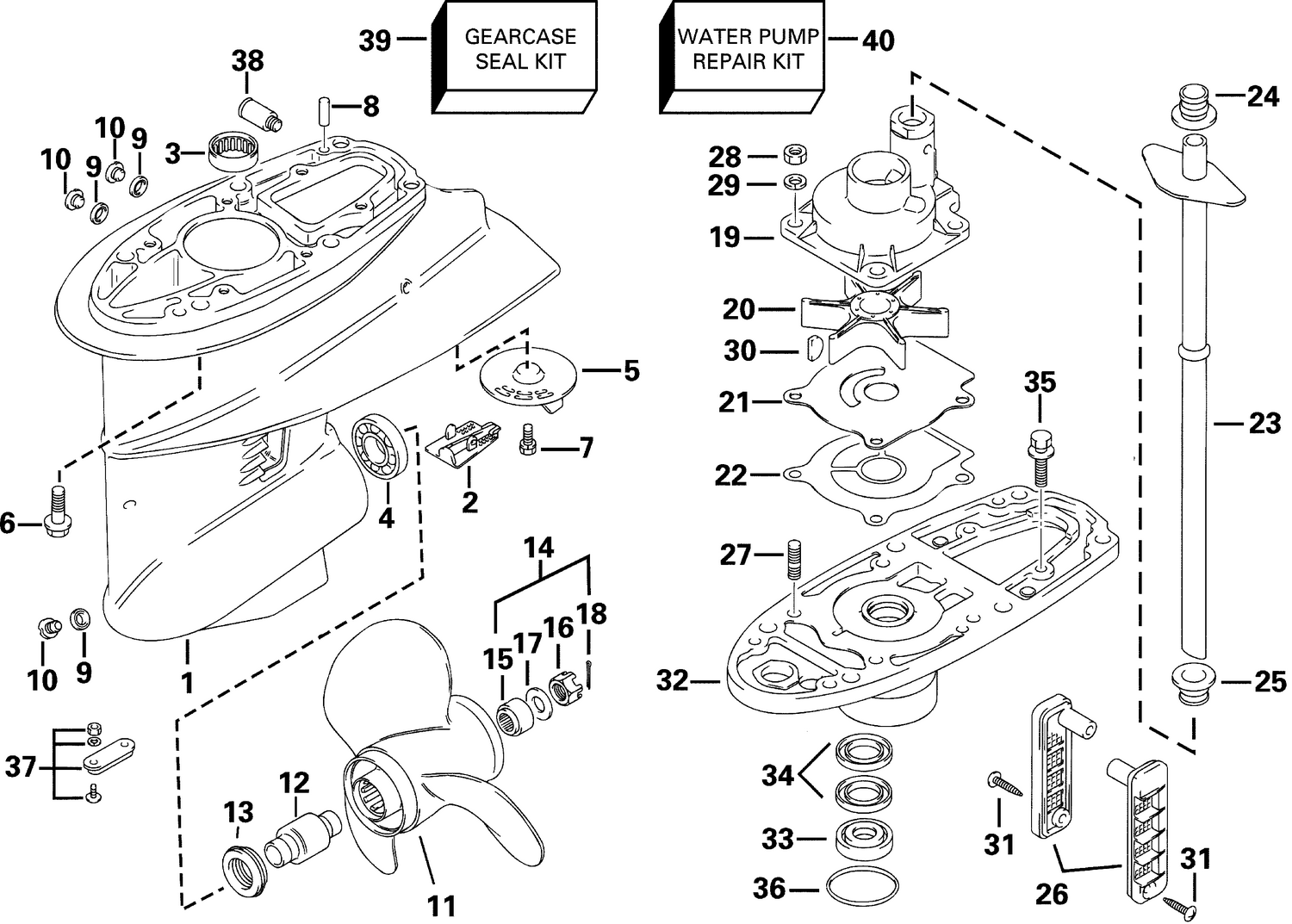

GEARCASE
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032089 | GEARCASE ASSY. |
| 5 | 5032091 | TRIM TAB |
| 6 | 5035665 | BOLT (8X40) This part replaces 5030393. |
| 7 | 5031215 | BOLT (8X16) |
| 8 | 5031877 | DOWEL PIN |
| 9 | 5030071 | GASKET |
| 10 | 5030094 | BOLT (10X7.5mm) |
| 13 | 5032104 | SPACER, Prop Nut |
| 14 | 5032170 | PROPELLER HARDWARE KIT |
| 19 | 5031990 | CASE, WATER PUMP |
| 24 | 5032223 | GROMMET, WATER TUBE |
| 25 | 5032224 | GROMMET, WATER TUBE LOWER |
| 26 | 5031428 | FILTER, WATER |
| 27 | 5030032 | BOLT, STUD |
| 31 | 5032284 | SCREW |
| 32 | 5032093 | DRIVESHAFT BEARING HOUSING |
| 36 | 5031888 | O RING (D:3.6 ID:43.2) |
| 37 | 5031538 | ANODE ASSY. |
| 38 | 5031537 | ATTACHMENT, FLUSH HOSE |
| 39 | 5032167 | GEARCASE SEALING KIT |
