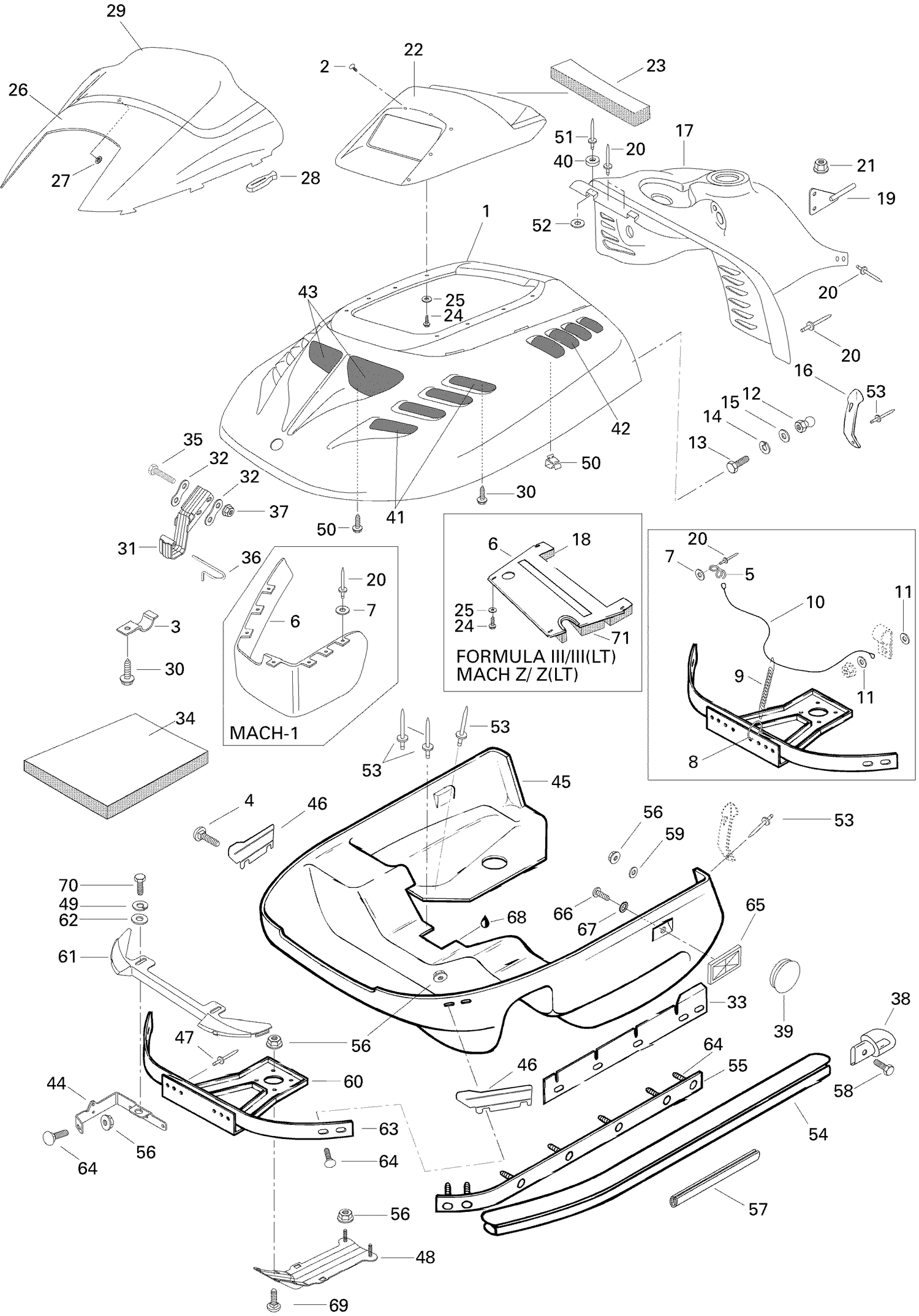

09- Cab And Console Form III, III LT
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572079322 | Cab (Royal Violet) |
| 2 | 414939500 | Dart This part replaces 414939702. |
| 3 | 517274400 | Bracket |
| 4 | 732601214 | Carriage Bolt M6 x 20 |
| 5 | 517262800 | Bracket |
| 6 | 572081700 | Air Deflector |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 414192100 | Ring |
| 9 | 414763300 | Spring |
| 10 | 414212300 | Cab Retainer Cable |
| 11 | 224060201 | Flat Washer |
| 12 | 517245800 | Knob |
| 13 | 207151444 | Hex. Screw M5 X 14 This part replaces 222051465. |
| 14 | 234151401 | Lock Washer 5 mm This part replaces 224751090. |
| 15 | 391301600 | Washer |
| 16 | 570027100 | Hood Latch |
| 17 | 572075100 | Tank Cover |
| 18 | 415026200 | Acoustic Foam |
| 19 | 517260700 | LH Bracket Plate |
| 19 | 517260701 | RH Bracket Plate |
| 20 | 390406500 | Pop Rivet 3/16" |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 22 | 572074000 | Dash |
| 23 | 414966100 | Foam |
| 24 | 365901400 | Screw-hex.taping 12 |
| 25 | 224061201 | Flat Washer |
| 26 | 572043404 | Windshield Support (Royal Violet) |
| 27 | 732610072 | Push Nut |
| 28 | 570023800 | Windshield Latch |
| 29 | 414795900 | WINDSHIELD LOW - Call your local BRP dealership |
| 30 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 31 | 517273500 | Hinge |
| 32 | 517274300 | Plate |
| 33 | 517279500 | RH Cab Guide |
| 33 | 517279600 | LH Cab Guide |
| 34 | 414631900 | Acoustic Foam |
| 34 | 414632400 | Acoustic Foam |
| 35 | 207065544 | Hex. Screw M6 X 55 This part replaces 222065565. |
| 36 | 414939800 | RH Pin |
| 36 | 414939802 | LH Pin |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 38 | 572036700 | RH Cap |
| 38 | 572036800 | LH Cap |
| 39 | 570045103 | Pan Bottom Cap (Royal Violet) |
| 40 | 415018100 | Rubber Stopper |
| 41 | 517271400 | LH Front Grille |
| 41 | 517281000 | RH Front Grille |
| 42 | 517283200 | LH Rear Grill |
| 42 | 517284300 | RH Rear Grill |
| 43 | 517271700 | Central Grille |
| 44 | 517273200 | RH Hinge Bracket |
| 44 | 517273300 | LH Hinge Bracket |
| 45 | 572076103 | Bottom Pan (Royal Violet) |
| 46 | 517279000 | Front Guide R.H |
| 46 | 517279100 | Front Guide L.H |
| 47 | 390402000 | Pop Rivet 3/16" |
| 48 | 506123000 | Link Plate |
| 49 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 50 | 414227300 | Clip |
| 51 | 390401600 | Pop Rivet 1/8" |
| 52 | 391300800 | Flat Washer |
| 53 | 390906800 | Pop Rivet 3/16" |
| 54 | 517243902 | Front Bumper |
| 55 | 414967400 | Strip Located |
| 56 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 57 | 414965900 | Bumper Moulding |
| 58 | 732601148 | Cap Screw |
| 59 | 224060201 | Flat Washer |
| 60 | 517271200 | Front Reinforcement |
| 61 | 572059100 | Front Moulding |
| 62 | 224061201 | Flat Washer |
| 63 | 517274700 | Hinge Bracket |
| 64 | 207762544 | Carriage Bolt M6 X 25 This part replaces 222262565. |
| 65 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 66 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 67 | 224151101 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 68 | Not | Available As Spare Part - Silicone-Sealant |
| 69 | 207762044 | Carriage Bolt M6 X 20 This part replaces 222262065. |
| 70 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
