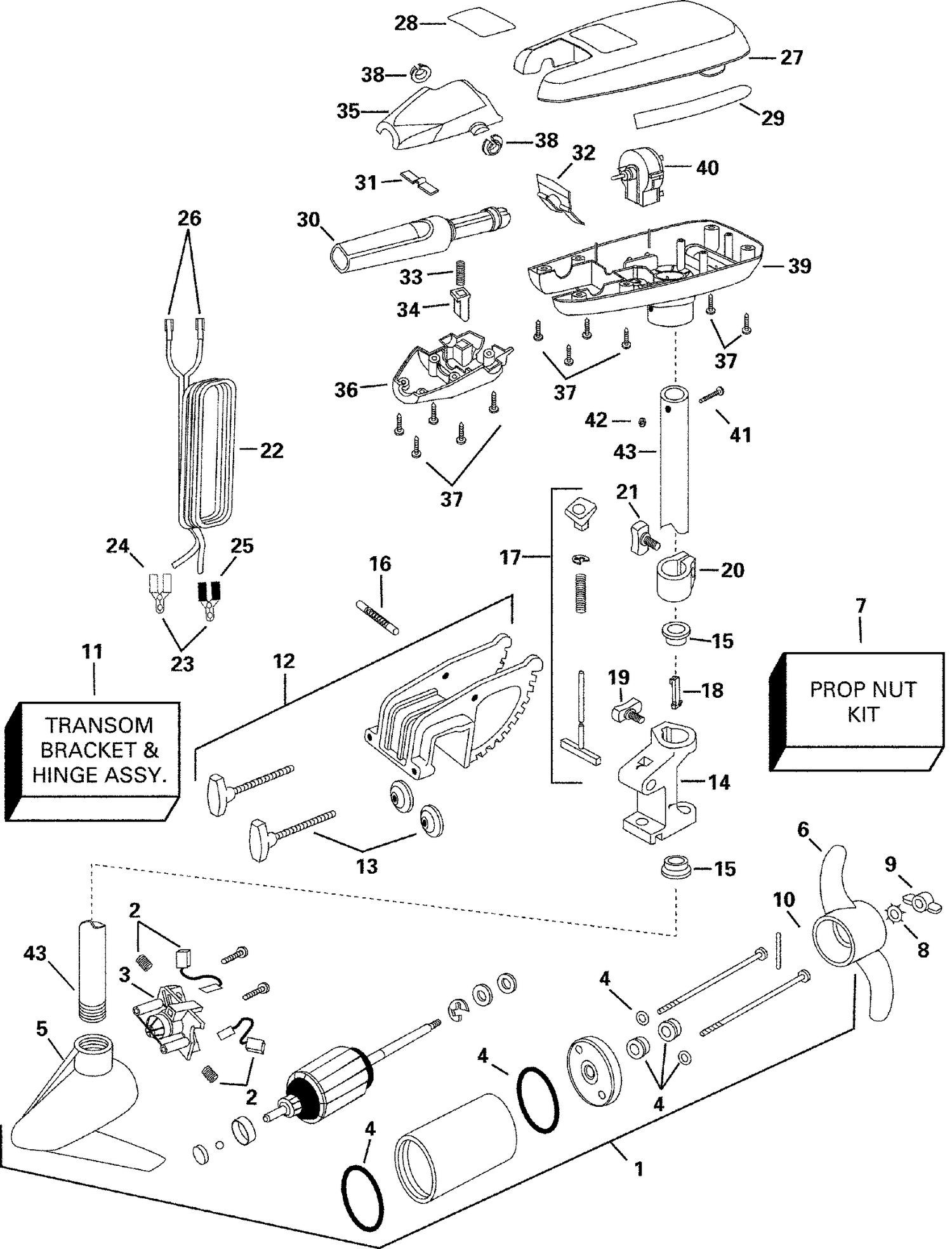

SCOUT 30 H
Parts (21)
| Ref | Part Number | Description |
|---|
| 1 |
0127947 |
MOTOR ASSEMBLY |
| 6 |
0772773 |
PROPELLER |
| 7 |
0772777 |
PROP NUT KIT |
| 11 |
0128033 |
BRACKET & HINGE ASSY. |
| 20 |
0128086 |
COLLAR, Depth |
| 22 |
0128087 |
BATTERY CABLE |
| 28 |
0128289 |
DECAL, Cover |
| 29 |
0128114 |
DECAL, Side |
| 30 |
0128181 |
HANDLE ASSY. |
| 31 |
0127986 |
SPRING, Detent |
| 32 |
0128182 |
SPRING, Tilt detent |
| 33 |
0128183 |
SPRING, Release |
| 34 |
0128184 |
REALEASE BUTTON |
| 35 |
0128185 |
HANDLE, Upper |
| 36 |
0128186 |
HANDLE, Lower |
| 37 |
0127989 |
SCREW |
| 38 |
0127940 |
BEAING, Handle |
| 39 |
0128200 |
CONTROL BOX, Plastic |
| 40 |
0127945 |
SWITCH, 5 Speed |
| 41 |
0128068 |
SCREW |
| 42 |
0128069 |
NUT |
