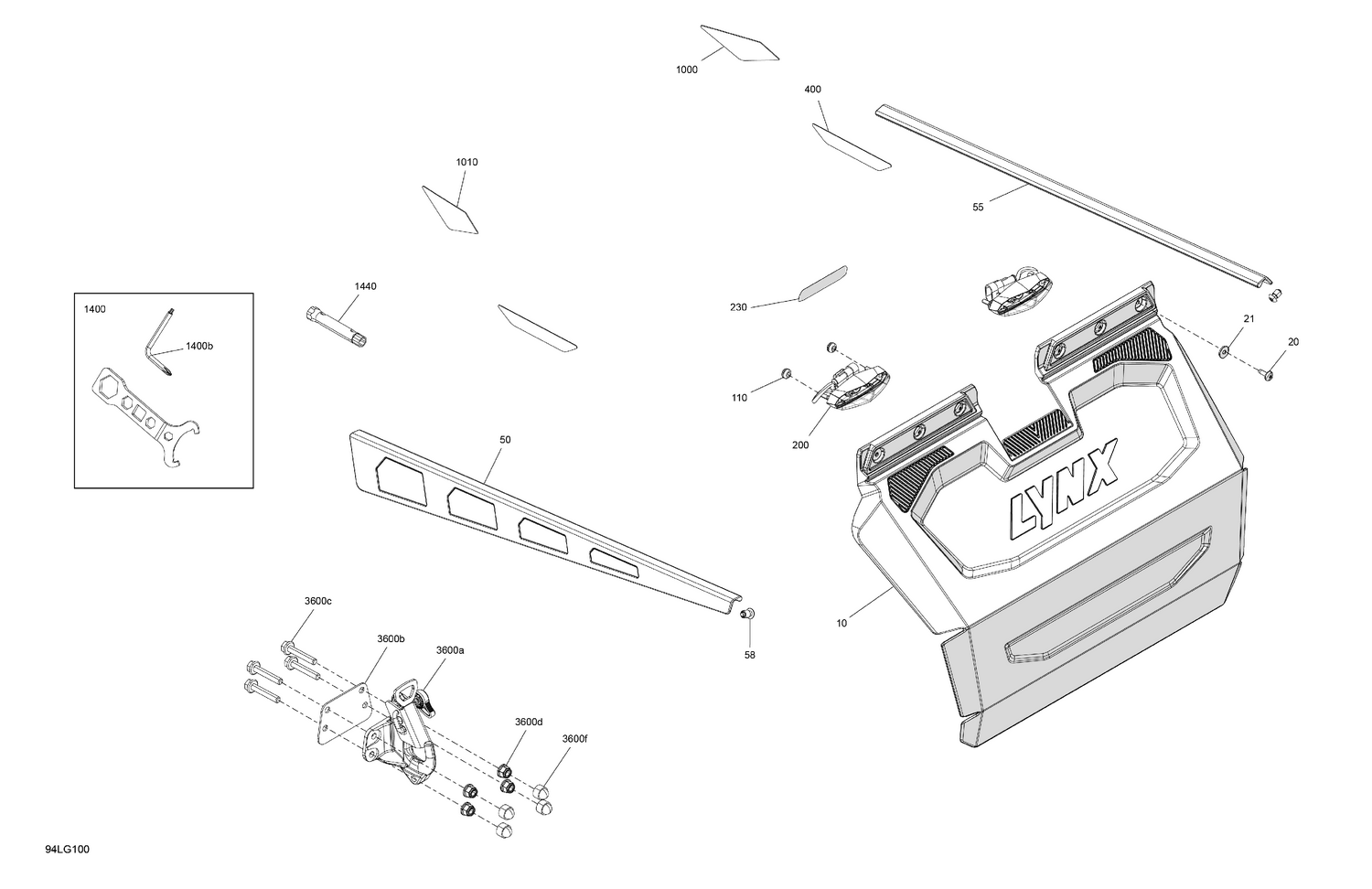

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002037 | Snow Guard |
| 20 | 250000676 | Forming Screw M5 x 16 |
| 21 | 250200025 | Washer M5 |
| 50 | 520000694 | LH Protector |
| 55 | 520000693 | RH Protector |
| 58 | 293150163 | Rivet Hucklok |
| 110 | 293720101 | Grommet |
| 200 | 520003188 | Tail Light |
| 230 | 520003632 | Red. Rear Reflector |
| 400 | 520003528 | Amber, LH/RH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1440 | 529014900 | Socket Wrench 10/13 mm |
| 3600a | 520001826 | Hitch Ass'y |
| 3600b | 511001560 | RH Chassis Reinforcement |
| 3600c | 207685044 | Hex. Flange Screw M8 X 50 |
| 3600d | 233281414 | Hex. Flange Elastic Nut M8 |
