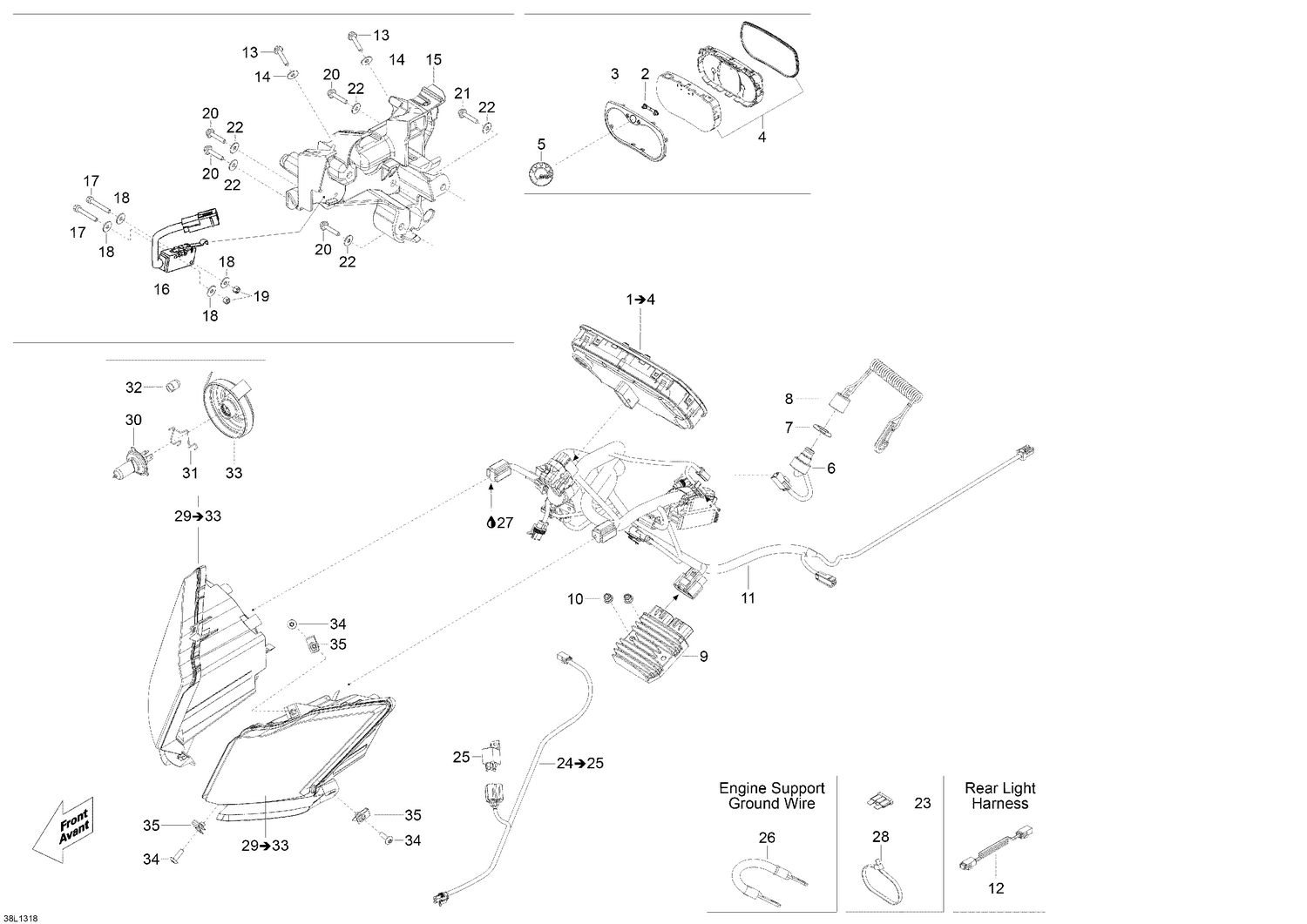

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129370 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 |
515177249 |
Dess Switch |
| 7 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 8 |
515178284 |
Dess. This part replaces 515177057. |
| 9 |
710001103 |
Voltage Regulator |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
515177126 |
WIRING HARNESS MAIN - Call your local BRP dealership |
| 12 |
515177032 |
Rear Light Harness |
| 13 |
211000023 |
Hex. Screw 10-14 x 7/8 |
| 14 |
234062600 |
Flat Washer M6 |
| 15 |
515176866 |
PLATE - Call your local BRP dealership |
| 16 |
515176881 |
SWITCH ASS'Y - Call your local BRP dealership |
| 17 |
207132044 |
Hex. Screw M3 x 20 |
| 18 |
234032600 |
Flat Washer M3, Stainless |
| 19 |
232531423 |
Elastic Stop Nut M3 |
| 20 |
210262040 |
Hex. Flanged Screw M6 x 20 |
| 21 |
210262550 |
Hex. Flanged Forming Screw M6 X 25 This part replaces 210262580. |
| 22 |
250200039 |
Flat Washer |
| 23 |
710000742 |
Little Fuse, 5 Ampere |
| 23 |
710000744 |
Little Fuse, 10 Ampere |
| 23 |
710000745 |
Little Fuse, 15 Ampere |
| 23 |
710000746 |
Little Fuse, 20 Ampere |
| 23 |
710000747 |
Little Fuse, 30 Amperes |
| 25 |
710010053 |
RELAY This part replaces 410113200. |
| 26 |
515177014 |
Ground Wire |
| 27 |
619600021 |
Loctite 8104 (Dielectric Grease), 75 ml |
| 28 |
293750001 |
Tie-Rap 94 mm |
| 28 |
293750002 |
Tie-Rap 142 mm |
| 28 |
414115200 |
Tie-Rap 180 mm |
| 28 |
605627000 |
Tie Rap |
| 30 |
515176274 |
Halogen Bulb, 60/55 W, 12 V |
| 31 |
Not |
Available As Spare Part - Bulb Holder |
| 32 |
515176498 |
Cap |
| 33 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 34 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
