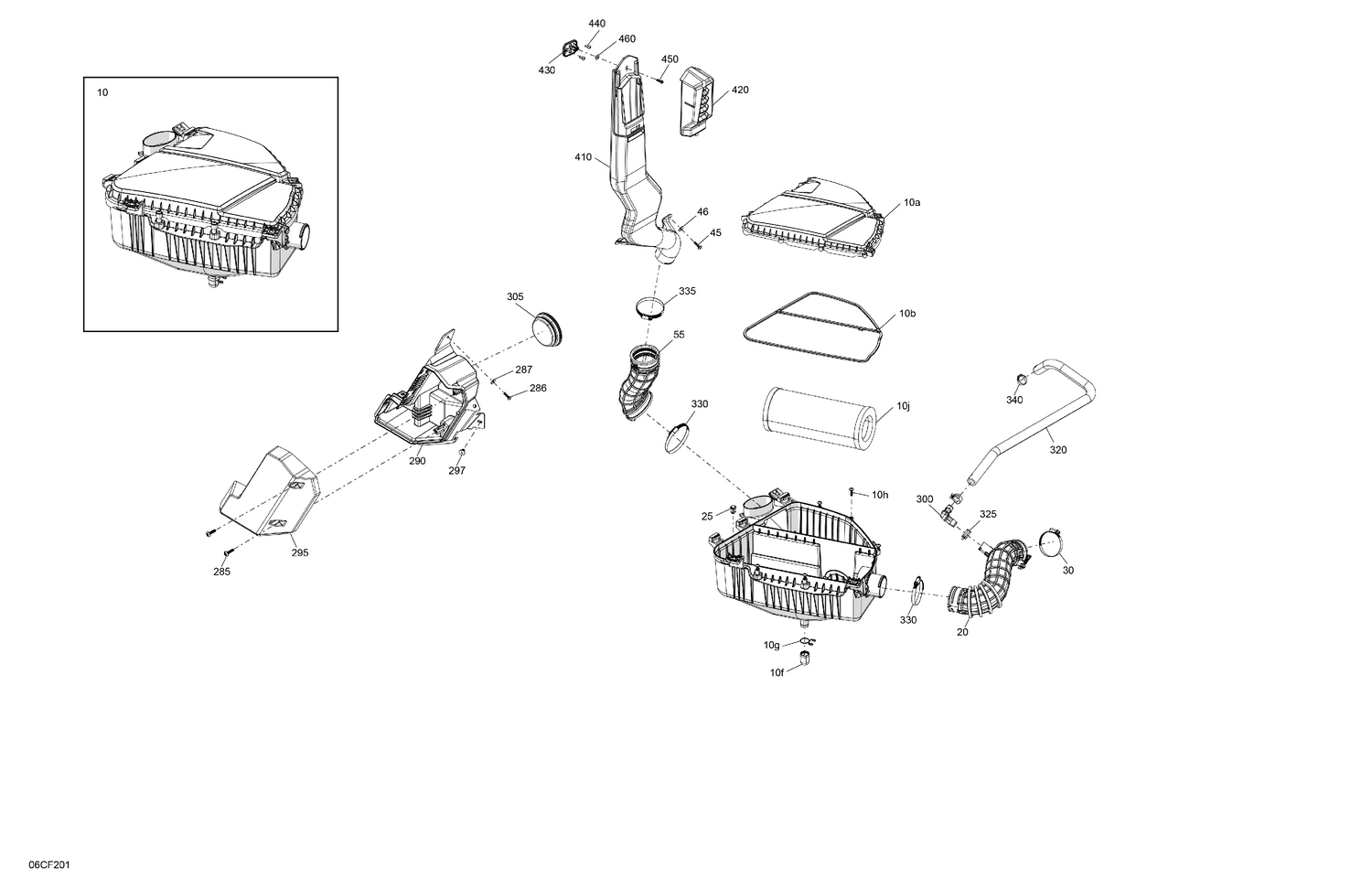

02- Engine - Air Intake
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707801144 | Intake Silencer Ass'y |
| 10a | 707801074 | Intake Silencer Cover |
| 10b | 707801077 | Intake Silencer Gasket |
| 10f | 293000135 | Cap |
| 10g | 707801043 | Spring Clamp |
| 10h | 250001110 | Torx Screw K50 X 25 |
| 10j | 715900422 | Premium Air Filter |
| 20 | 707801068 | Intake Duct |
| 25 | 293150230 | Tuflok Plastic Rivet |
| 30 | 293650118 | Norma Gear Clamp |
| 45 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 46 | 250200025 | Washer M5 |
| 55 | 707801142 | Intake Duct Silencer |
| 285 | 250000980 | Hex. Screw Pt K60 X 25 |
| 286 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 287 | 250200025 | Washer M5 |
| 290 | 707801102 | Air Inlet Box |
| 295 | 707801097 | LH Cover |
| 297 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 300 | 293710155 | Elbow Fitting 90 |
| 305 | 707002217 | Plug |
| 320 | 707801078 | Formed Crankcase Hose |
| 325 | 293650243 | Norma Spring Clamp |
| 330 | 293650366 | Gear Clamp |
| 335 | 293650366 | Gear Clamp |
| 340 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 410 | 706600472 | Snorkel |
| 420 | 706600462 | Air Inlet Grille |
| 430 | 705801451 | Cap |
| 440 | 250000874 | Torx Truss M8 X 25 |
| 450 | 250001378 | Screw Pt Hex. K60 X 25 |
