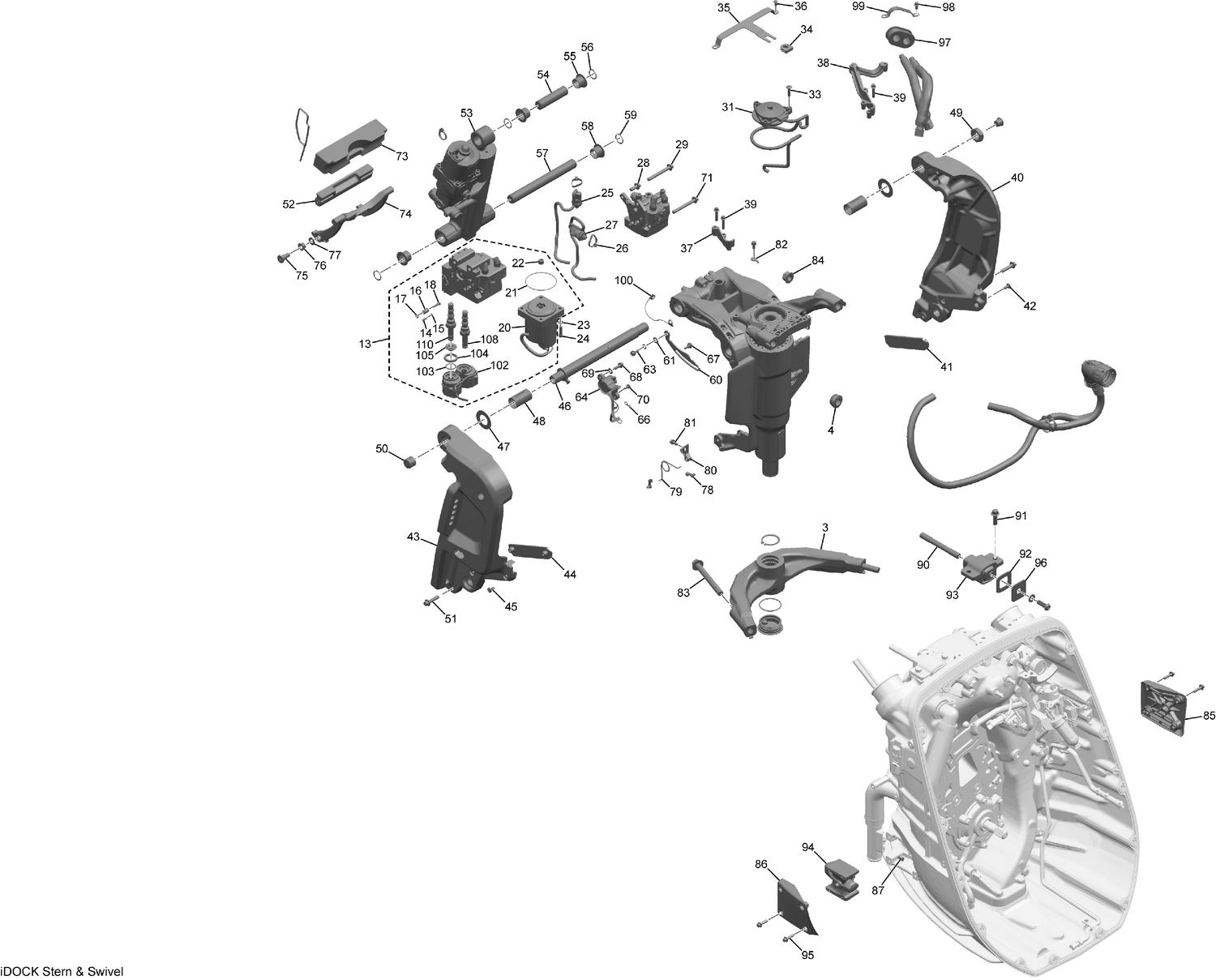

| Ref | Part Number | Description |
|---|
| 3 |
0363731 |
Lower Mount Bracket |
| 4 |
0361341 |
GROMMET, Water deflector |
| 26 |
0320107 |
Tie Strap |
| 46 |
5010675 |
Tilt Tube Assembly |
| 52 |
5009241 |
Anode Assembly |
| 53 |
5011585 |
Pt&T- Hydraulic Assembly |
| 73 |
0362590 |
GROMMET, Water deflector |
| 74 |
0365015 |
Trailer Lock Lever, Painted |
| 80 |
0359665 |
Retainer, Trailer Lock Lever |
| 81 |
0328724 |
Screw, Retainer Retention |
| 82 |
0359673-00 |
Tab,Retaining |
| 83 |
0362479-00 |
Screw,M14X125 |
| 84 |
0356555-00 |
Nut,Flange-M14 |
| 85 |
0366516-00 |
Cover,Mount-Lower,Stbd Painted |
| 86 |
0366512-00 |
Cover,Mount-Lower,Port Painted |
| 87 |
315656-00 |
SCREW |
| 90 |
0363762-00 |
Stud, Upper Mount, M14X122 |
| 91 |
0363763-00 |
Screw,M10X30 |
| 92 |
0363764-00 |
Limiter, Upper Mount, Rubber |
| 93 |
5012002-00 |
Upper Motor Mount |
| 94 |
5011996-00 |
Lower Motor Mount |
| 95 |
0353590-00 |
Screw,M6X25 |
| 96 |
0364097-00 |
Upper Mount Thrust Limiter |
| 97 |
0365060-00 |
Grommet, Steering Hose Retention |
| 98 |
0353897-00 |
Screw,M6X12 |
| 99 |
0365059-00 |
Strap |
| 100 |
0584472-00 |
LEAD, BONDING |
