Parts Catalog

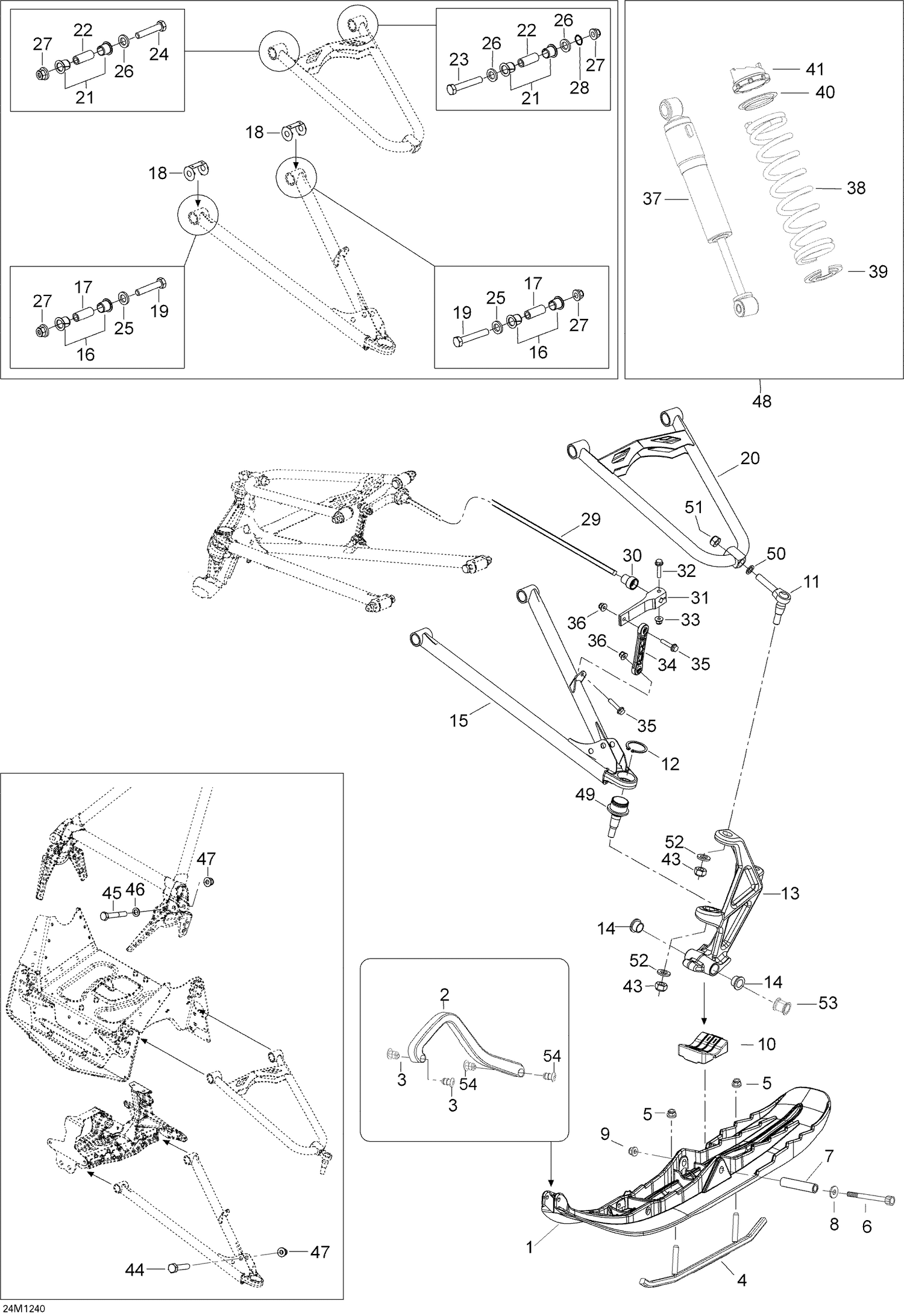

07- Front Suspension And Ski

Parts (48)

Ref	Part Number	Description
2	505070963	Black, Handle
3	505071812	Retainer 17mm long
7	506133300	Spacer
8	732900049	Washer
11	505072257	Upper Ball Joint
12	293370035	Circlip
13	505073011	Clear LH Ski Leg
13	505073012	Clear RH Ski Leg
14	505072690	Leg Bushing
15	505072497	Black, RH Lower Arm
15	505072498	Black, LH Lower Arm
16	505072208	Bushing
17	505072209	Sleeve This part replaces 505072393.
18	505072634	Wear Plate
19	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
20	505072375	Upper Arm
21	505072250	Bushing
22	505072143	Sleeve
23	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
24	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
25	503189564	Washer
26	505072392	Washer
27	250100165	Hex. Flange Elastic Nut M10 This part replaces 250100088.
28	505072448	O-Ring
29	505072602	Stabilisator
30	505072064	Bushing
31	505072394	Stabilisator Lever
32	207663046	Hex. Flange Screw M6 X 30
33	233261416	Elastic Flange Nut M6 X 1.0
34	505072204	Sway Bar Double Joint Link
35	207663046	Hex. Flange Screw M6 X 30
36	233261416	Elastic Flange Nut M6 X 1.0
37	505072517	Front Shock
38	505072882	Full Moon Spring 300mm-16N/MM
39	230076	Spring Seat
40	503191872	Spring Guide
41	505073625	Adjustment Cam This part replaces 505070150.
43	250100089	Hex. Elastic Hex. Nut M12
44	207005544	Hex. Screw M10 X 55
45	207006544	Hex. Screw M10 X 1.5 X 65
46	503189564	Washer
47	233201414	Hex. Flange Elastic Nut M10
48	Not	Available As Spare Part - Shock ass'y, ski
49	505073636	Ball Joint This part replaces 505072682.
50	503189276	Washer
51	250100089	Hex. Elastic Hex. Nut M12
52	234021410	Flat Washer 12 mm
53	505071999	Spacer
