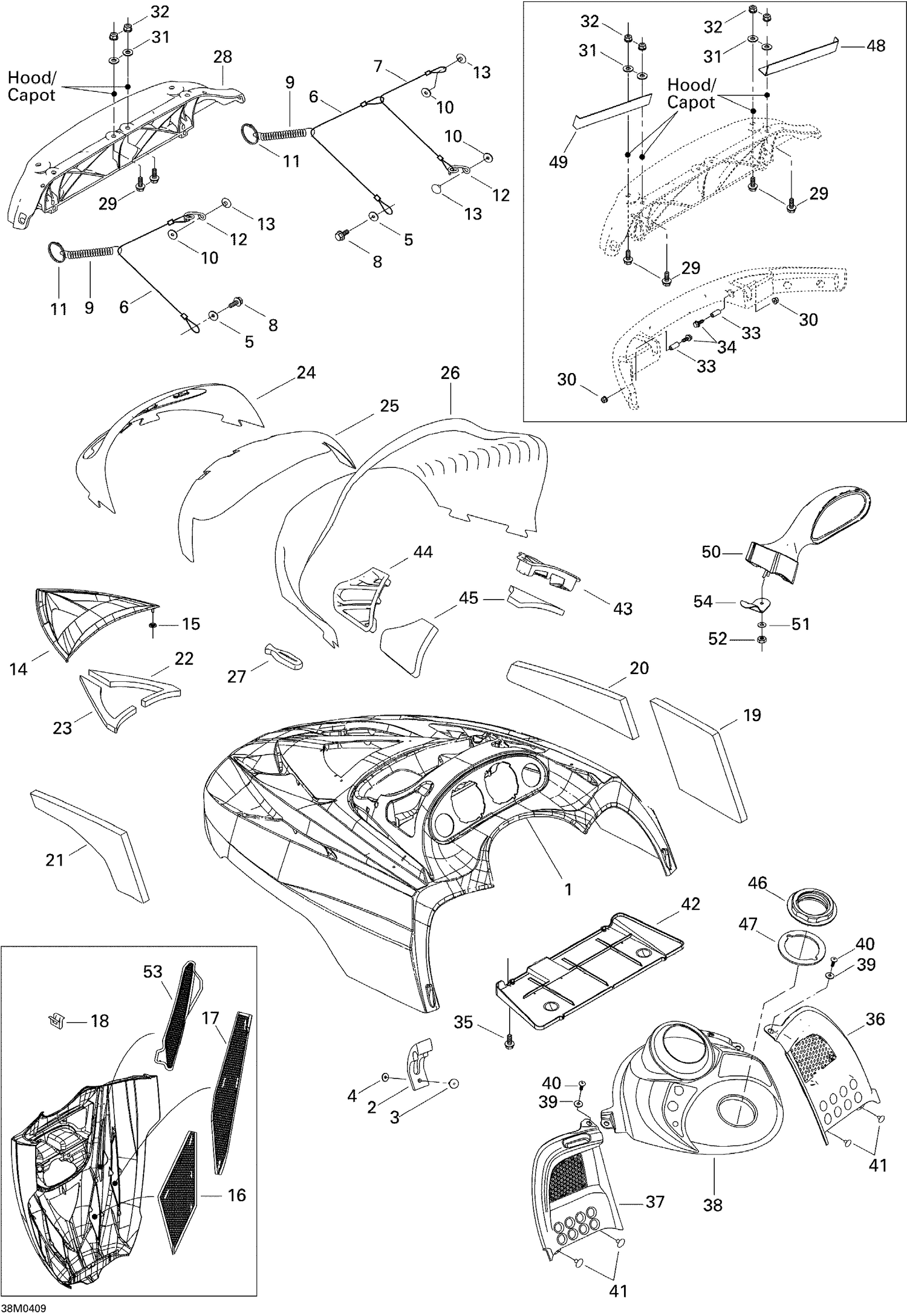

09- Cab, Console
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 570027100 | Hood Latch |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 391301600 | Washer |
| 6 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 7 | 517303135 | Retainer Cable |
| 8 | 365901000 | Hex. Tapping Screw |
| 9 | 415043300 | Spring |
| 10 | 517124300 | Washer |
| 11 | 415058300 | RING - Call your local BRP dealership |
| 12 | 517262800 | Bracket |
| 13 | 293150104 | Pop Rivet 3/16" |
| 14 | 517303016 | Center Grille |
| 15 | 250100034 | Push Nut |
| 16 | 517302994 | RH Intermediate Grille |
| 17 | 517302996 | RH Side Grille |
| 18 | 517302785 | Edge Clip |
| 19 | 517302749 | RH Side Foam |
| 20 | 517302941 | RH Rear Side Foam |
| 21 | 517302750 | LH Side Foam |
| 22 | 517302942 | RH CENTER FOAM - Call your local BRP dealership |
| 23 | 517302943 | LH Center Foam |
| 25 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 27 | 570023800 | Windshield Latch |
| 28 | 517302631 | Hinge |
| 29 | 207662084 | Hex. Flange Screw M6 X 20 |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 31 | 224061201 | Flat Washer |
| 32 | 232561414 | Elastic Stop Nut M6 |
| 33 | 517302179 | BUSHING - Call your local BRP dealership |
| 34 | 207663544 | Hex. Flange Screw M6 X 35 |
| 35 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 36 | 517302709 | RH Console |
| 37 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 39 | 391301600 | Washer |
| 40 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 41 | 293150103 | Pop Rivet 3/16" |
| 42 | 517302628 | Air Intake Plate |
| 43 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 44 | 517302025 | LH AIR INTAKE GRILL - Call your local BRP dealership |
| 45 | 517302151 | Air Intake Foam |
| 46 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 47 | 293250029 | Gasket |
| 48 | 517302949 | RH Corner Support |
| 49 | 517302950 | LH Corner Support |
| 50 | 517302764 | RH MIRROR - Call your local BRP dealership |
| 51 | 517124300 | Washer |
| 52 | 232541414 | Elastic Stop Nut M4 |
| 53 | 517302998 | RH Side Grille |
| 517302766 | LH | Mirror 517302766 |
| 517302766 | Rétroviseur | GA 517302766 |
| 517302995 | Grille | Intermédiaire GA 517302995 |
| 517302995 | LH | Intermediate Grille 517302995 |
| 517302997 | Grille | Côté GA 517302997 |
| 517302997 | LH | Side Grille 517302997 |
