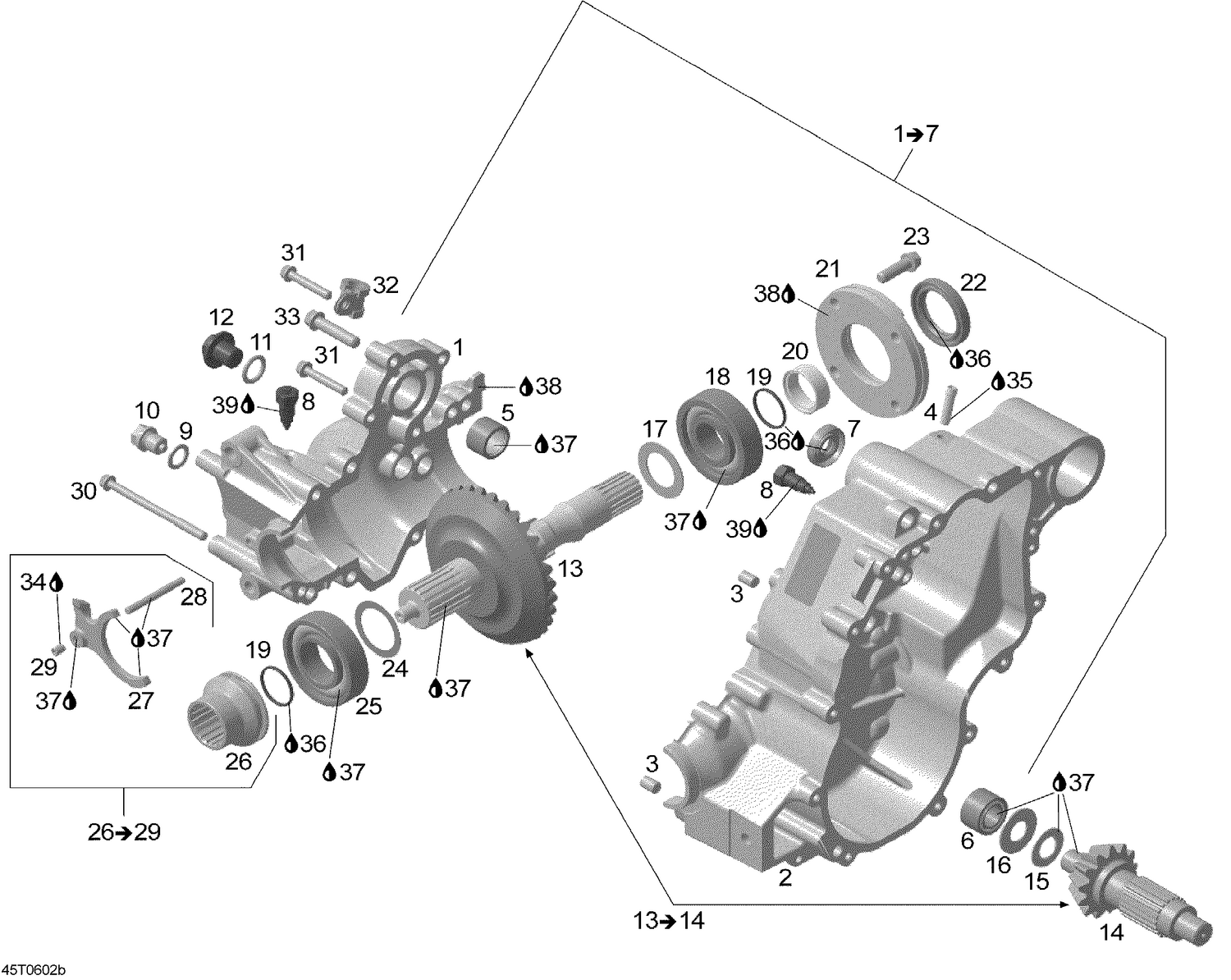

01- Gear Box 2

01- Gear Box 2

Parts (38)

RefPart NumberDescription
1 Not Available As Spare Part - Gear Housing, Right
2 Not Available As Spare Part - Gear Housing, Center
3 420632010 Center Pin 8 X 12
4 Not Available As Spare Part - Impulse Nipple
5 420832240 Needle Bushing
6 420232085 Needle Bushing
7 420250450 Oil Seal
8 420241856 Position Switch
9 420250640 Copper Washer
10 420241787 Magnetic Drain Plug M12 This part replaces 420241786.
11 420650350 O-Ring
12 420241662 Plug Screw M14 X 1.5 This part replaces 420241660.
13 Not Available As Spare Part - Drive Shaft
14 Not Available As Spare Part - Bevel Gear, 13 Teeth
15 420632300 Axial Needle Bearing
16 420281306 Thrust Washer Set, MAG Side
17 420281300 Washer Thrust Set This part replaces 420281312.
18 420932822 Ball Bearing This part replaces 420932825.
19 420631612 O-Ring This part replaces 420631615.
20 420247111 Distance Ring
21 420611444 Bearing Cover This part replaces 420611440.
22 420950089 Oil Seal This part replaces 420950087.
23 420440372 Torx Flange Screw M8 X 25
24 420944584 Shim 0.5
25 420932580 Ball Bearing This part replaces 420232785.
26 Not Available As Spare Part - Shifting Sleeve
27 Not Available As Spare Part - Shifting Fork
28 Not Available As Spare Part - Pin
29 420841771 SET SCREW M6 X 8 - Call your local BRP dealership
30 420641228 Torx Flange Screw M6 X 85 This part replaces 420440347.
31 420440274 Torx Flange Screw M6 X 35 This part replaces 420440277.
32 420251690 CABLE CLAMP - Call your local BRP dealership
33 420641188 Torx Flange Screw M8 X 35 This part replaces 420440867.
34 293800060 Loctite 243, 10 ml
35 219703000 Sealant Loctite 648 This part replaces 413711400.
36 293550030 Grease, Super Lube
37 293600121 OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039.
38 293800081 Loctite 5910, 300 ml
