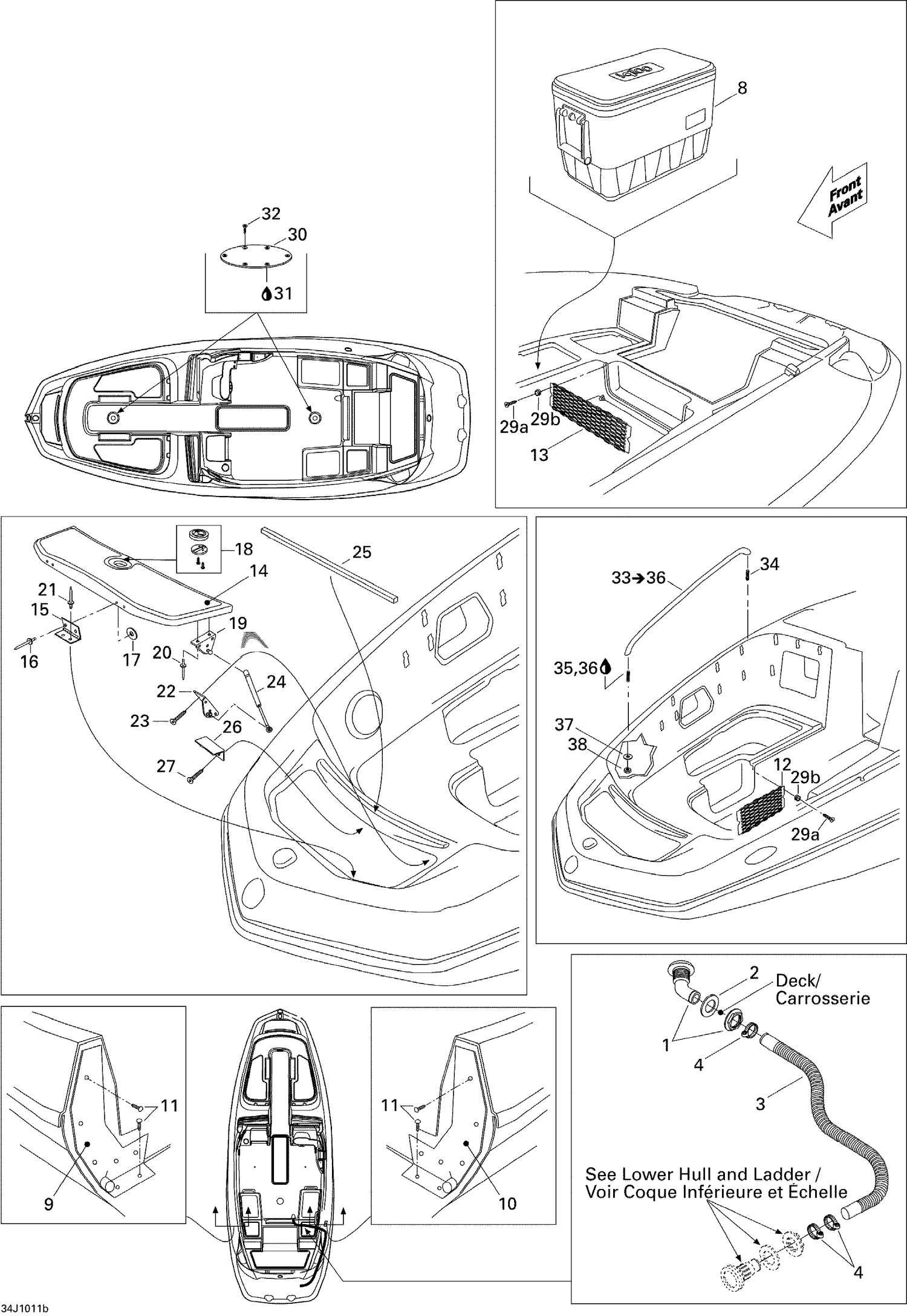

| Ref | Part Number | Description |
|---|
| 1 |
204073301 |
DRAIN FITTING - Call your local BRP dealership |
| 2 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250250. |
| 3 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 4 |
293650074 |
Norma Clamp |
| 8 |
204072662 |
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership |
| 9 |
204072504 |
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership |
| 10 |
204072505 |
Soundwall Seal, Starboard |
| 11 |
293730006 |
Black, Dart |
| 12 |
291003524 |
STORAGE NET - Call your local BRP dealership This part replaces 204073218. |
| 13 |
204073217 |
STORAGE NET, REAR - Call your local BRP dealership |
| 14 |
204073506 |
Anchor Lid |
| 15 |
204072601 |
HINGE - Call your local BRP dealership |
| 16 |
293150037 |
Avdel Rivet 3/16" |
| 17 |
234051600 |
Flat Washer M5, Stainless |
| 18 |
204072838 |
Stainless Latch |
| 19 |
204073074 |
Shock Bracket |
| 20 |
293150088 |
Pop Rivet 3/16" |
| 21 |
293150037 |
Avdel Rivet 3/16" |
| 22 |
204073074 |
Shock Bracket |
| 23 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 24 |
204073017 |
GAS SHOCK - Call your local BRP dealership |
| 25 |
219704365 |
Was 293200017 Neoprene Seal |
| 26 |
204070060 |
KEEPER - Call your local BRP dealership |
| 27 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 29a |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 29b |
274073221 |
Attachment Knob |
| 30 |
204072909 |
TABLE PLUG - Call your local BRP dealership |
| 31 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 32 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 34 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 35 |
293800005 |
Loctite 271, 10 ml |
| 36 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 37 |
234002600 |
Flat Washer 10 mm, Stainless |
