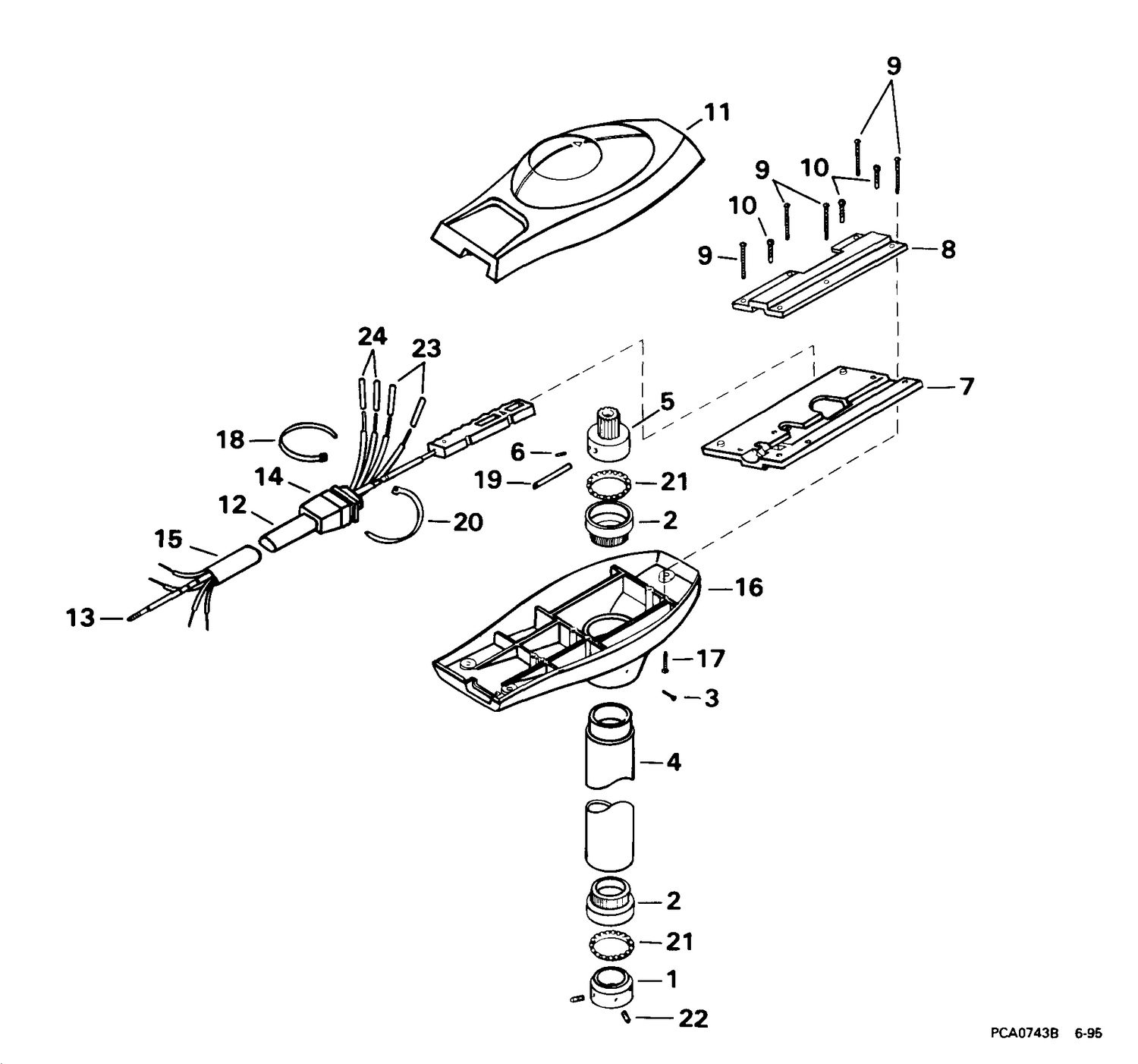

| Ref | Part Number | Description |
|---|
| 1 |
0115873 |
ADJUSTMENT RING, Motor tube |
| 2 |
0115876 |
CUP, Bearing |
| 3 |
0115877 |
LOCK SCREW, Steering housing to mounting tube |
| 4 |
0115878 |
MOUNTING TUBE |
| 4 |
0116032 |
MOUNTING TUBE (HBFL2G) 42 in. |
| 5 |
0115879 |
STEERING PINION |
| 6 |
0115802 |
SET SCREW |
| 7 |
0115982 |
RACK HOUSING |
| 8 |
0115983 |
COVER, Rack housing |
| 9 |
0115993 |
SCREW, Rack cover to gear housing |
| 10 |
0115850 |
SCREW |
| 11 |
0116025 |
COVER ASSEMBLY |
| 12 |
0116073 |
STEERING CABLE ASSY. |
| 13 |
0116061 |
RACK & CABLE ASSY. |
| 14 |
0115855 |
SLEEVE, Cable assy. |
| 15 |
0115856 |
TUBING |
| 16 |
0115888 |
STEERING HOUSING |
| 17 |
0115890 |
SCREW, Cover to steering housing |
| 19 |
0319523 |
PIN, Pinion to motor tube |
| 20 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 21 |
0433047 |
BEARING ASSY., Mounting tube |
| 22 |
0321223 |
SET SCREW |
| 23 |
0115857 |
SPLICE W/ INSULATION # 10 |
| 24 |
0115858 |
SPLICE W/ INSULATION #14 |
| 0115929 |
0115929 |
DECAL SET, Evinrude |
| 0115930 |
0115930 |
DECAL SET, Johnson |
