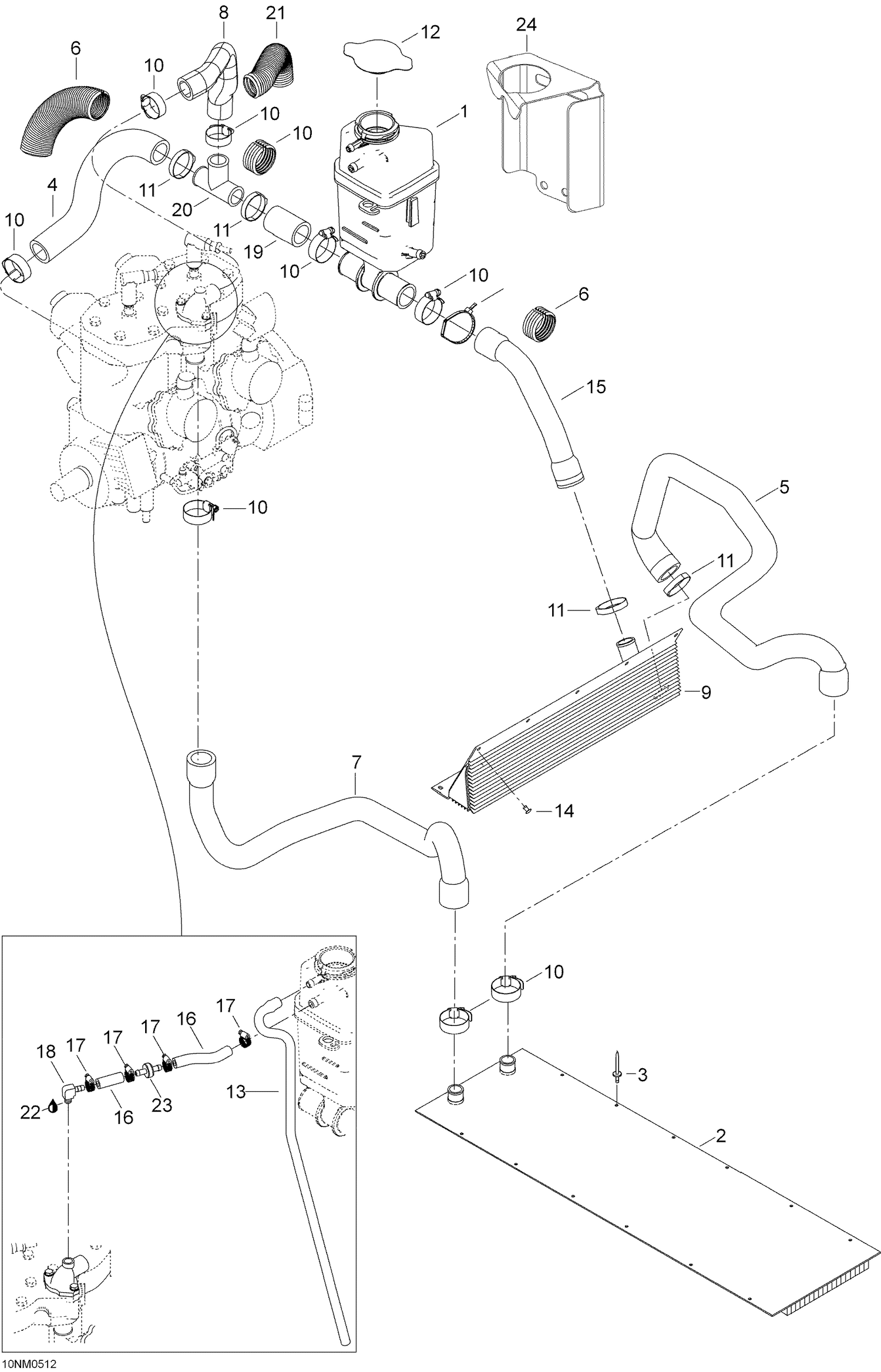

01- Cooling System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000167 | Tank Coolant This part replaces 509000140. |
| 2 | 5246648 | Radiator |
| 3 | 36083 | Rivet |
| 4 | 509000141 | ENGINE INLET HOSE - Call your local BRP dealership |
| 5 | 5347902 | Hose |
| 6 | 390003 | Protective shield (1000 mm) |
| 7 | 5347901 | Hose |
| 8 | 509000142 | Hose |
| 9 | 509000146 | Front radiator |
| 10 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 | 509000045 | Hose clamp |
| 12 | 509000187 | Pressure Cap |
| 13 | 39038 | Hose |
| 14 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 | 509000144 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 16 | 509000093 | Hose |
| 17 | 293650170 | Hose clamp |
| 18 | 293700020 | Hose clamp |
| 19 | 509000143 | Hose |
| 20 | 509000219 | T-Fitting This part replaces 414619900. |
| 21 | 605449802 | Tubing |
| 22 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 23 | 509000153 | Valve.check |
