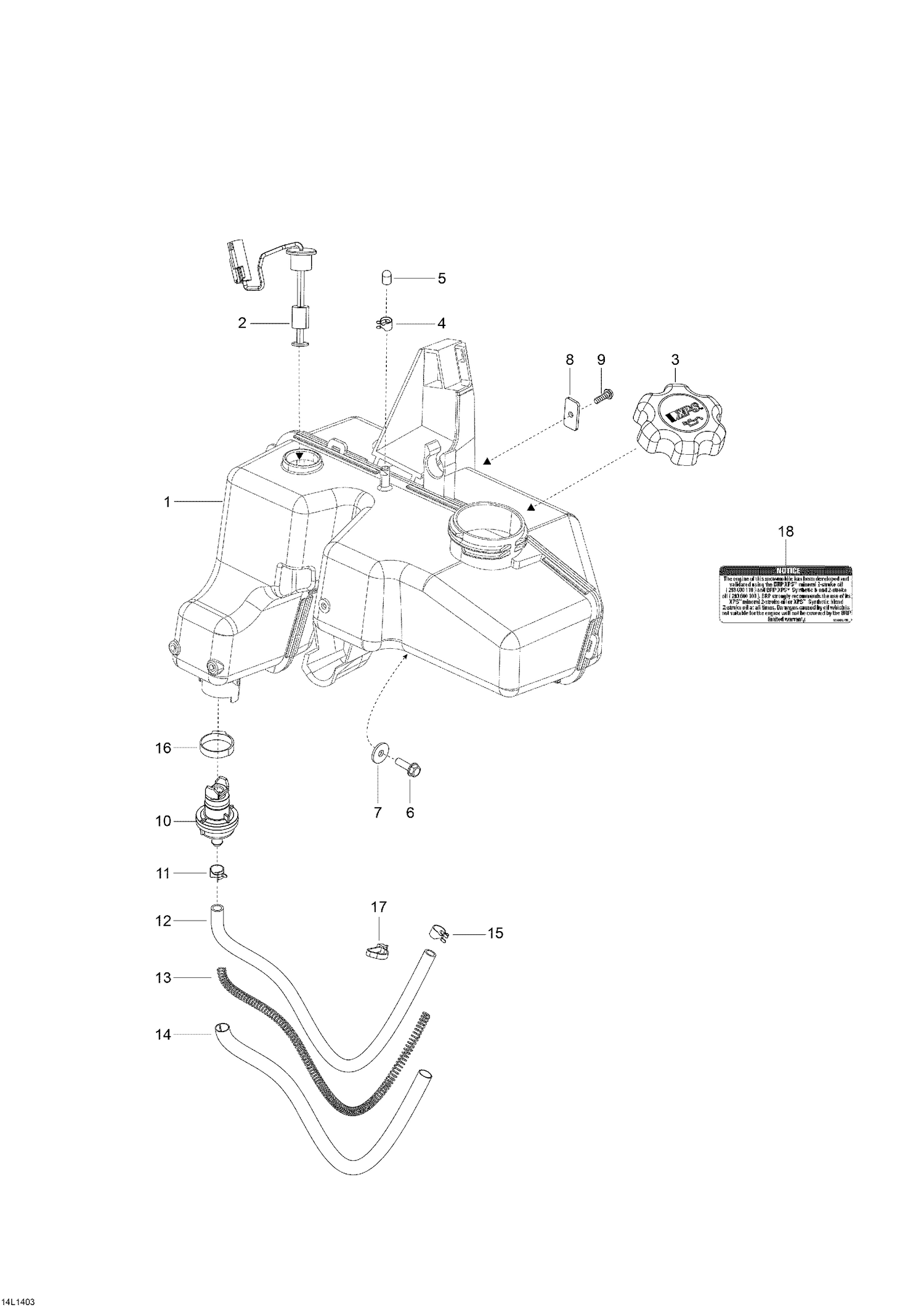

02- Oil System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000341 | Oil Tank This part replaces 519000255. |
| 2 | 515176978 | Level Sensor |
| 3 | 519000273 | Cap |
| 4 | 293650043 | Clamp |
| 5 | 519000216 | Cap |
| 6 | 250000331 | Hex. Head Flanged Forming Screw M6 x 20 |
| 7 | 224061201 | Flat Washer |
| 8 | 519000179 | Bracket |
| 9 | 241151640 | Hex. Flanged Screw K50 x 16 |
| 10 | 519000242 | Oil Filter |
| 11 | 414415200 | Universal Spring Clamp |
| 12 | 415080700 | Polyurethane Hose, 8mm |
| 13 | 519000196 | Spring |
| 14 | 415079900 | Tubing 10mm |
| 15 | 414420700 | Universal Spring Clamp |
| 16 | 293650099 | Oetiker Gear Clamp |
| 17 | 414115200 | Tie-Rap 180 mm |
