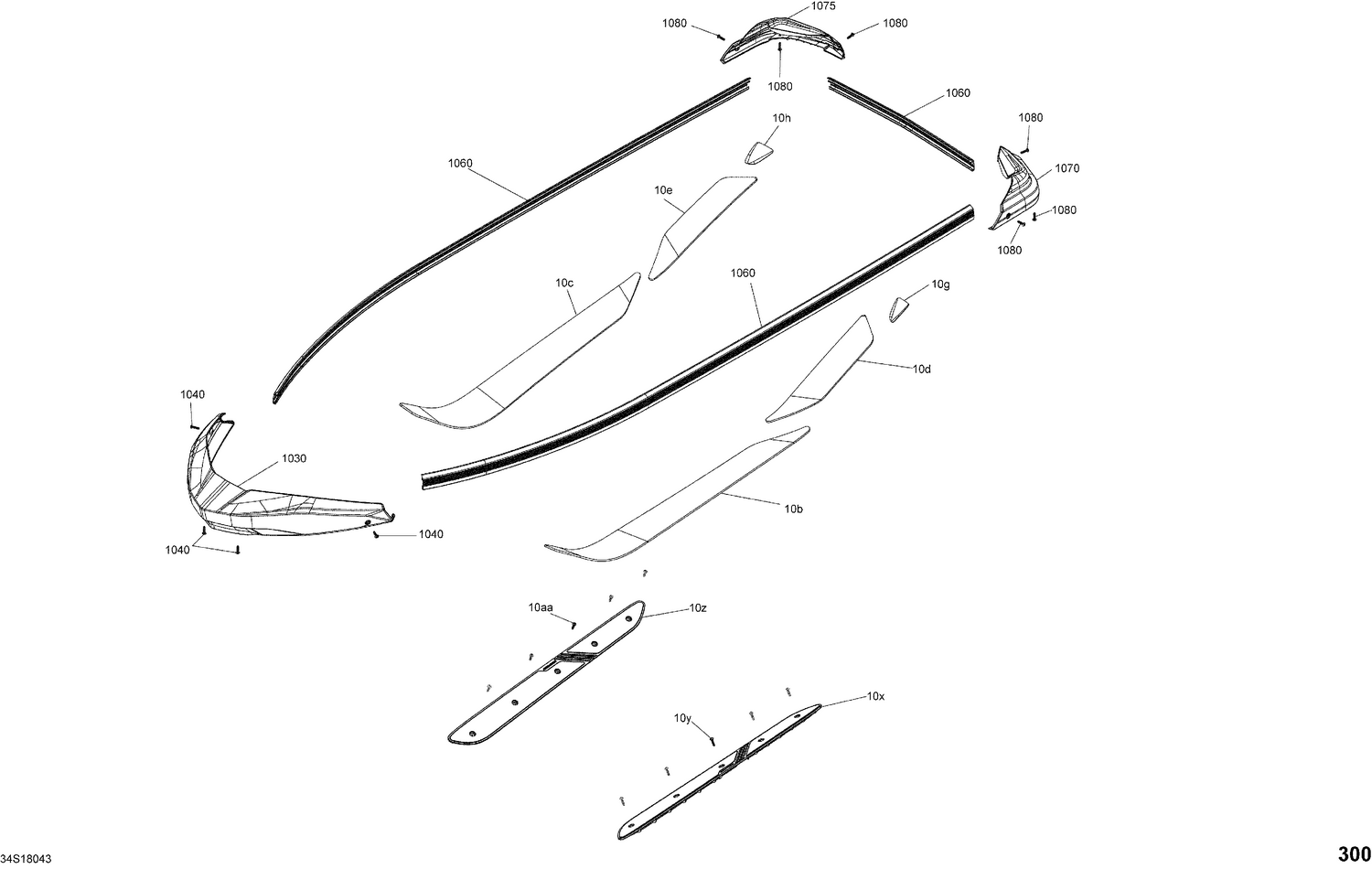

09- Body Hull Part - RXT Package X, XRS
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
| 10b | 291004512 | LH Front Carpet |
| 10c | 291004513 | RH Front Carpet |
| 10d | 291004514 | LH Rear Carpet |
| 10e | 291004515 | RH Rear Carpet |
| 10g | 291004516 | LH Anti-Skid Pad |
| 10h | 291004517 | RH Anti-Skid Pad |
| 10x | 291004786 | Dragon Red, LH Footrest |
| 10y | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
| 10z | 291004787 | Dragon Red, RH Footrest |
| 1030 | 291004452 | Front Bumper |
| 1040 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 1060 | 291004468 | Bumper 2775±25mm |
| 1070 | 291004465 | LH Rear Bumper |
| 1075 | 291004466 | RH Rear Bumper |
