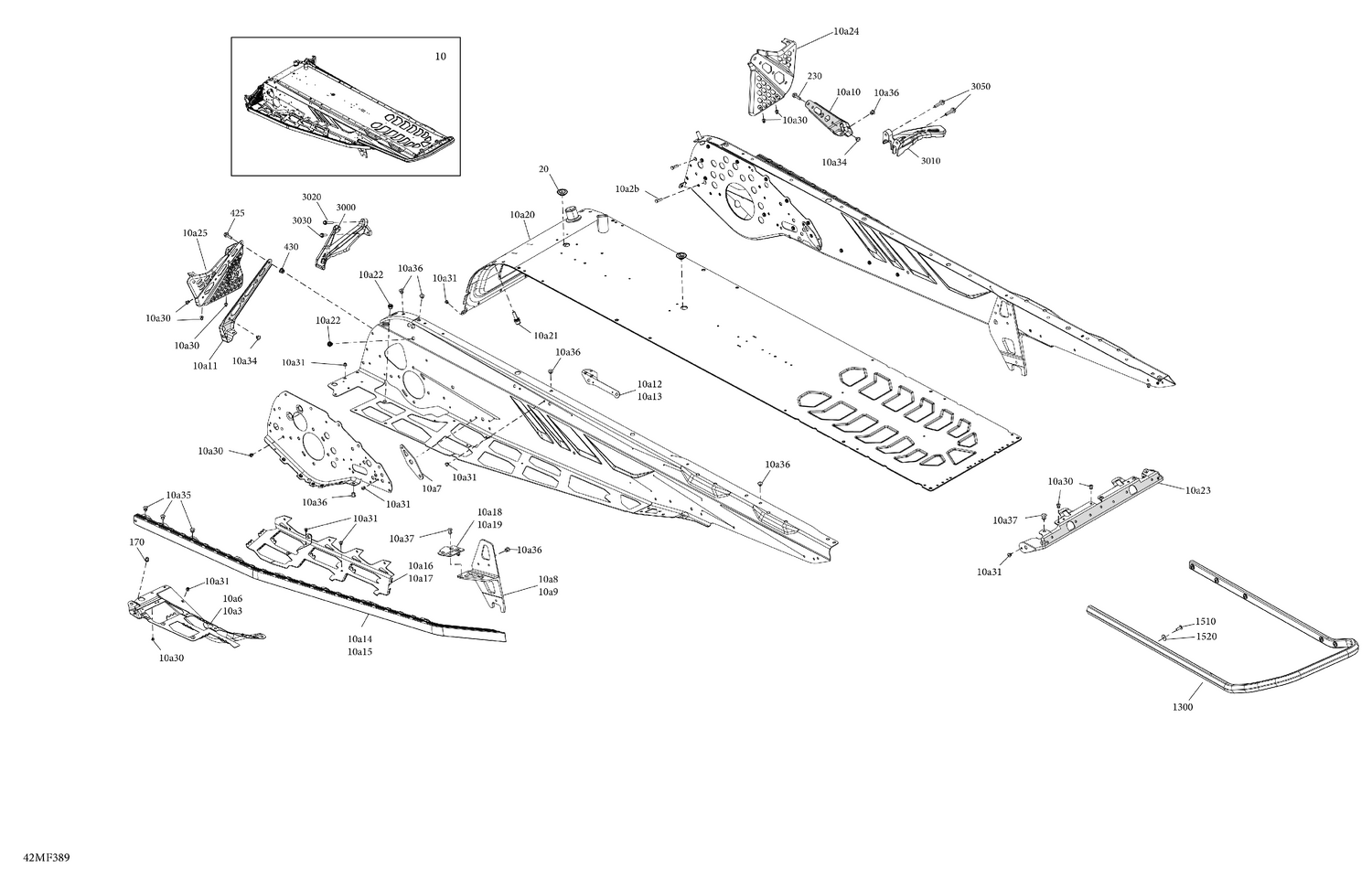

06- Frame - System - Rear Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 415131050 | Scandi Blue, Chassis Module 146 |
| 10a10 | 518334507 | Stirrup Reinforcement |
| 10a11 | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10a12 | 518330299 | LH Member Fixation Plate |
| 10a13 | 518331745 | RH Under Chassis Reinforcement |
| 10a14 | 518328451 | RH Roller |
| 10a15 | 518328452 | LH Roller |
| 10a16 | 518336064 | RH Footrest Reinforcement |
| 10a17 | 518336063 | LH Footrest Reinforcement |
| 10a18 | 518329088 | LH Reinforcement Plate |
| 10a19 | 518329089 | RH Reinforcement Plate |
| 10a20 | 518335127 | Radiator Tunnel 146 |
| 10a21 | 250300652 | Protruding Stud M8 x 22 |
| 10a22 | 605636003 | Clinch Nut M6 Hexsert |
| 10a23 | 518328990 | Rear Cap |
| 10a24 | 518333006 | RH Footrest |
| 10a25 | 518333858 | LH Footrest |
| 10a2b | 250300027 | Clinch Stud M6 X 20 |
| 10a3 | 518332578 | RH Footrest Reinforcement |
| 10a30 | 390909100 | Avex Rivet |
| 10a31 | 390909200 | Avex Rivet |
| 10a34 | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10a35 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10a36 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10a37 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10a6 | 518332577 | LH Footrest Reinforcement |
| 10a7 | 518335959 | Front Suspension Arm Reinforcement |
| 10a8 | 518336663 | LH Suspension Support |
| 10a9 | 518336664 | RH Suspension Support |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207663546 | Hex. Flange Screw M6 x 35 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518329553 | Rear Bumper 146 |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 3000 | 518334924 | LH Front Stirup |
| 3010 | 518329134 | Toe Hold |
| 3020 | 250001211 | Hex. Flange Screw M6 X 30 |
| 3030 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3050 | 250001124 | Hex Screw Forming M6 x 25 |
