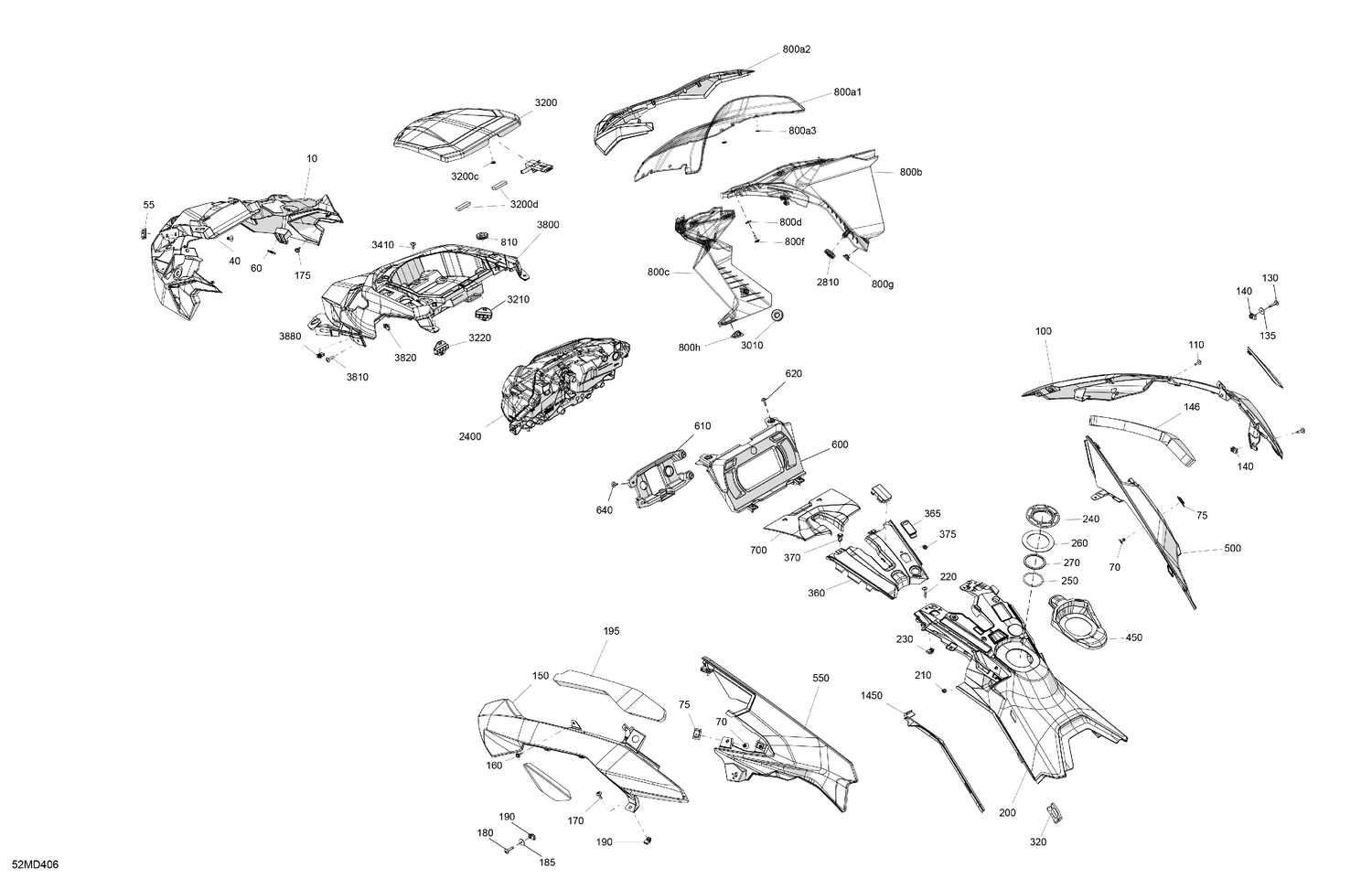

07- Body - Hood
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517308030 | Center Hood |
| 40 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 70 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 75 | 517305109 | Rivet Plate |
| 100 | 517308642 | RH Front Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 146 | 517307948 | RH Front Hood Acoustic Insulation |
| 150 | 517308643 | LH Front Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 175 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 195 | 517307950 | LH Front Hood Acoustic Insulation |
| 200 | 517308760 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 260 | 517309451 | Joint |
| 270 | 517309382 | Support |
| 320 | 517308930 | Self Adhesive Weather Strip |
| 360 | 517307912 | Front Console |
| 365 | 517308261 | Cap |
| 370 | 293150230 | Tuflok Plastic Rivet |
| 375 | 732610072 | Push Nut |
| 450 | 517309348 | Rear Short Console |
| 500 | 517308227 | RH Hood |
| 550 | 517308228 | LH Hood |
| 600 | 517307734 | Gauge Support |
| 610 | 515179104 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 640 | 250000725 | Screw M4 X 16 |
| 700 | 517308427 | Access Cover |
| 800a1 | 517307976 | Windshield 440 MM |
| 800a2 | 517307974 | Windshield Support |
| 800a3 | 732610072 | Push Nut |
| 800b | 517307971 | RH Air Deflector |
| 800c | 517307972 | LH Air Deflector |
| 800d | 517306524 | Rubber Washer 4 MM |
| 800f | 250000889 | Screw M4 X 16 |
| 800g | 517308989 | RH Stopper |
| 800h | 517308990 | LH Stopper |
| 810 | 517303756 | Grommet |
| 1450 | 517308963 | Molded Gasket |
| 2400 | 517309060 | Headlight Ass'y This part replaces 517308290. |
| 2810 | 517303756 | Grommet |
| 3010 | 517303756 | Grommet |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3210 | 517308260 | Box Cap |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3800 | 517308377 | Upper Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
