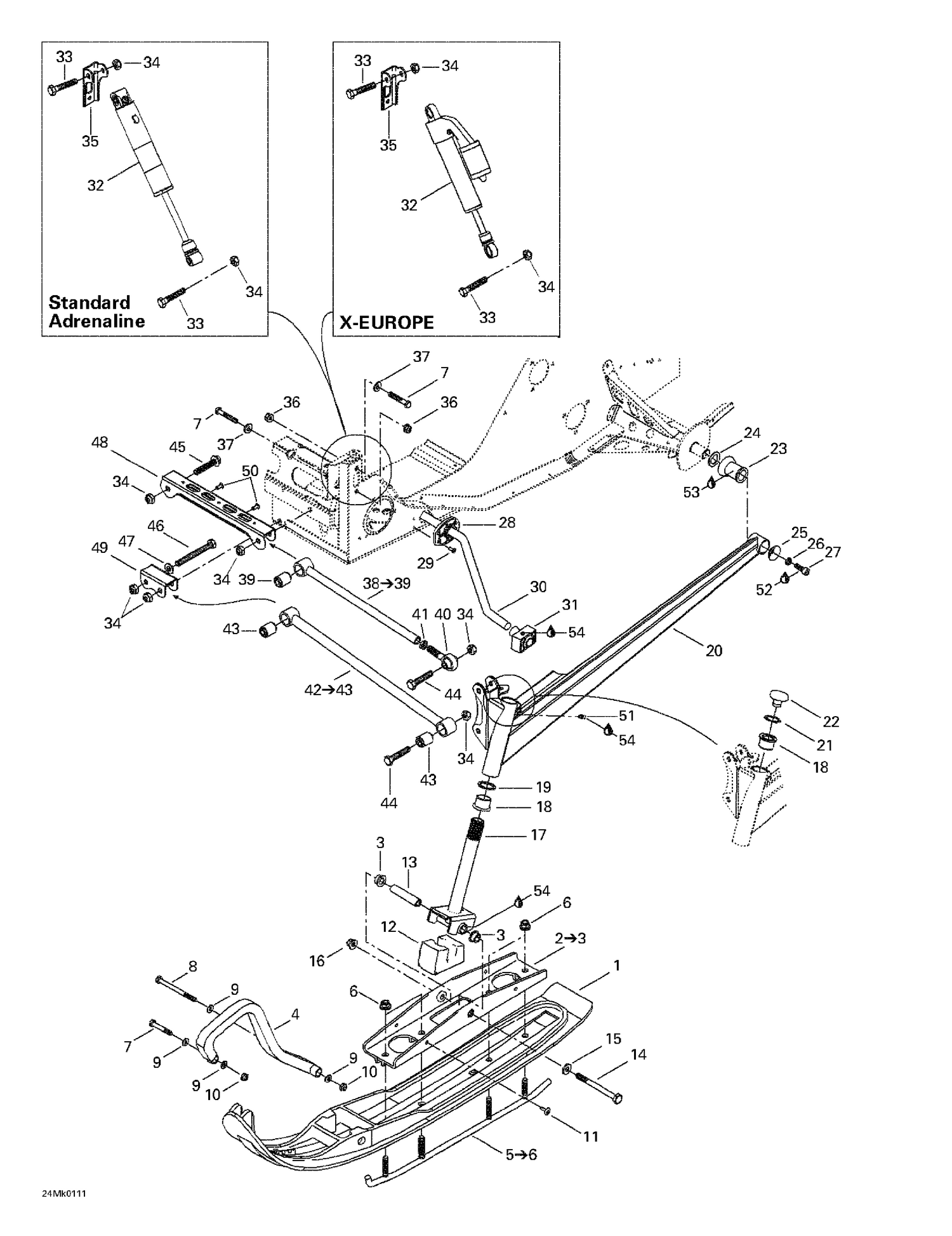

07- Front Suspension And Ski
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 505070001 | BUSHING - Call your local BRP dealership |
| 4 | 505070963 | Black, Handle This part replaces 572101000. |
| 6 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 7 | 207085044 | Hex. Screw M8 X 50 |
| 8 | 230080044 | SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 9 | 234081410 | Flat Washer 8 mm |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 390911100 | RIVET_POP 1/4 - Call your local BRP dealership |
| 12 | 505072018 | SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 13 | 506133300 | Spacer |
| 14 | 250000001 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 15 | 732900049 | Washer |
| 16 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 17 | 506151234 | Ski Leg |
| 18 | 505070003 | Cushion |
| 19 | 505070004 | WASHER - Call your local BRP dealership |
| 20 | 505070645 | RH ARM - Call your local BRP dealership |
| 21 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 22 | 572091300 | Cap |
| 23 | 570062200 | DAMPER - Call your local BRP dealership |
| 24 | 503146700 | WASHER - Call your local BRP dealership |
| 25 | 506079600 | CUP - Call your local BRP dealership |
| 26 | 234181401 | Lock Washer 8 mm |
| 27 | 205082544 | Socket Head Screw M8 X 25 |
| 28 | 505070139 | BUSHING - Call your local BRP dealership |
| 29 | 390402300 | Pop Rivet 3/16" |
| 30 | 505070563 | STABILISATOR - Call your local BRP dealership |
| 31 | 505070121 | BALL JOINT BLOCK - Call your local BRP dealership |
| 33 | 207005544 | Hex. Screw M10 X 55 |
| 34 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 35 | 518317518 | RH SHOCK BRACKET - Call your local BRP dealership |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 506151245 | Washer |
| 39 | 505070025 | Bushing |
| 40 | 415068400 | Ball Joint |
| 41 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 43 | 505070025 | Bushing |
| 44 | 207005544 | Hex. Screw M10 X 55 |
| 45 | 207605544 | Hex. Flange Screw M10 X 55 |
| 46 | 207009544 | Hex. Screw M10 X 95 |
| 47 | 234001410 | Flat Washer 10 mm |
| 48 | 505070010 | Upper Arm Bracket |
| 49 | 505070011 | Lower Arm Bracket |
| 50 | 390402200 | Pop Rivet 3/16" |
| 51 | 408200700 | Grease Fitting |
| 52 | 293800060 | Loctite 243, 10 ml |
| 53 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 505070646 | Bras | Oscillant GA - Appelez votre concessionnaire BRP local 505070646 |
| 505070646 | LH | ARM - Call your local BRP dealership 505070646 |
| 518317519 | LH | Shock Bracket 518317519 |
