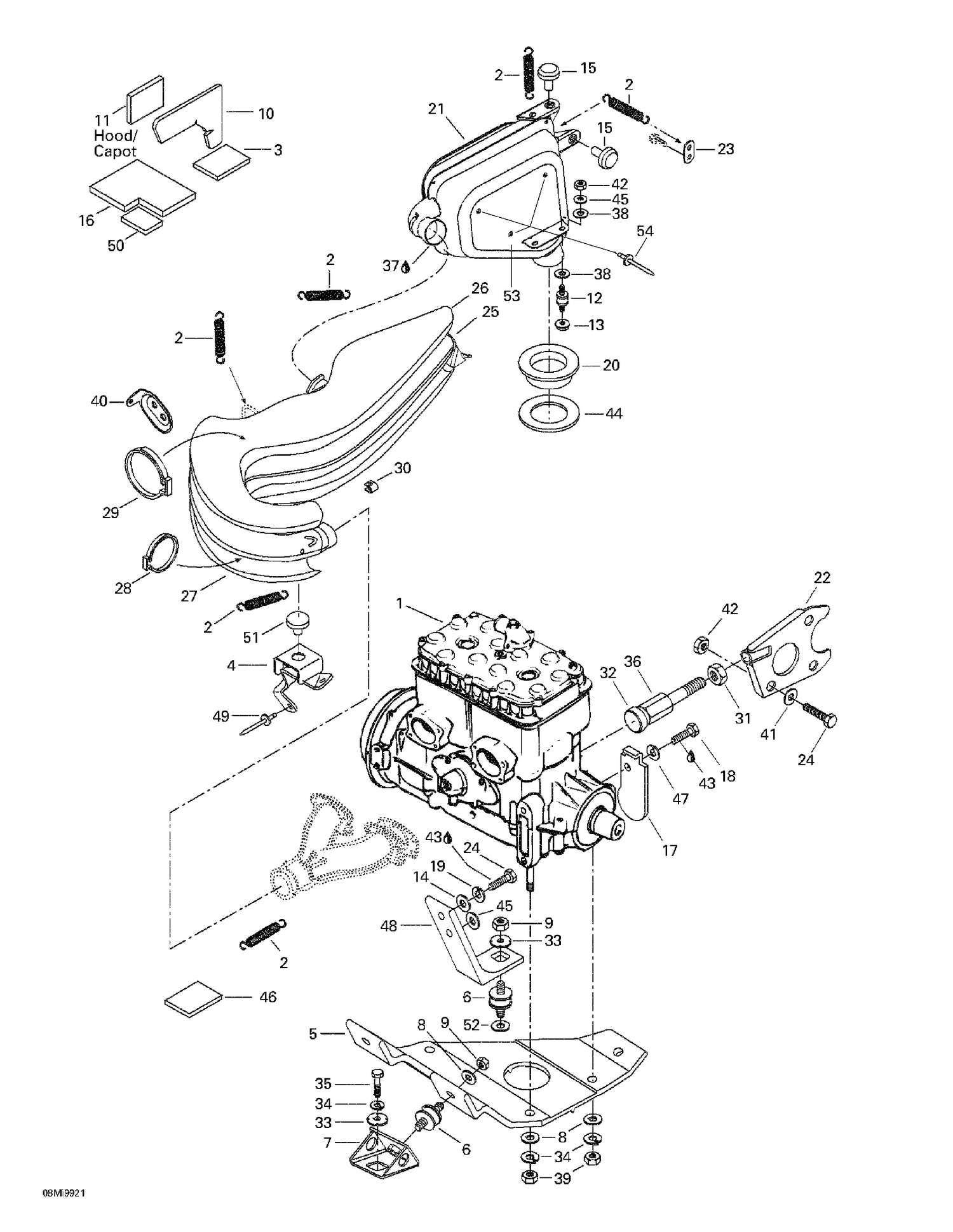

01- Engine Support And Muffler
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400604003 | Moteur «670» |
| 2 | 415107100 | Spring This part replaces 414893700. |
| 3 | 415123300 | Reflection Sheet |
| 4 | 514052904 | Pipe Support |
| 5 | 512054200 | Engine Support |
| 6 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 512050900 | Engine Support |
| 8 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 9 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 10 | 415123200 | Reflection Sheet |
| 11 | 415049100 | Reflection Sheet (In Hood) |
| 12 | 514052743 | RUBBER MOUNT - Call your local BRP dealership |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 14 | 234081410 | Flat Washer 8 mm This part replaces 224081171. |
| 15 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 16 | 415049500 | Reflection Sheet |
| 17 | 512052900 | Stopper Plate |
| 18 | 207161644 | Hex. Screw M6 X 16 |
| 19 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 20 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 21 | 514051400 | Muffler |
| 22 | 512055500 | Plate |
| 23 | 514051500 | Spring Bracket |
| 24 | 207182544 | Hex. Screw M8 X 25 This part replaces 222082565. |
| 26 | 514052810 | Upper Envelope |
| 27 | 514052992 | Lower Envelope |
| 28 | 514052924 | Norma Clamp |
| 29 | 514052908 | Gear Clamp |
| 30 | 514046503 | Cleat |
| 31 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 32 | 570045400 | STOPPER - Call your local BRP dealership |
| 33 | 512056700 | Lock Washer |
| 34 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 35 | 207102544 | Hex. Screw M10 X 25 This part replaces 222002565. |
| 36 | 512052400 | Screw |
| 37 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 38 | 514052891 | Insulated Washer |
| 39 | 232006414 | Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 40 | 514045100 | Pipe Bracket |
| 41 | 234081410 | Flat Washer 8 mm This part replaces 224081171. |
| 42 | 232581414 | Hex. Elastic Stop Nut M8 |
| 43 | 293800005 | Loctite 271, 10 ml |
| 44 | 514049300 | Aluminum Washer |
| 45 | 234082410 | Flat Washer 8 mm This part replaces 224080251. |
| 46 | 415025400 | Reflective Sheet |
| 47 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 48 | 512054300 | Engine Support |
| 49 | 390906800 | Pop Rivet 3/16" This part replaces 390910200. |
| 50 | 414706200 | Reflection Plate |
| 51 | 514052903 | Rubber Bumper |
| 52 | 518203400 | Washer |
| 53 | 514051700 | RH Heat Shield |
| 53 | 514051800 | LH Heat Deflector |
