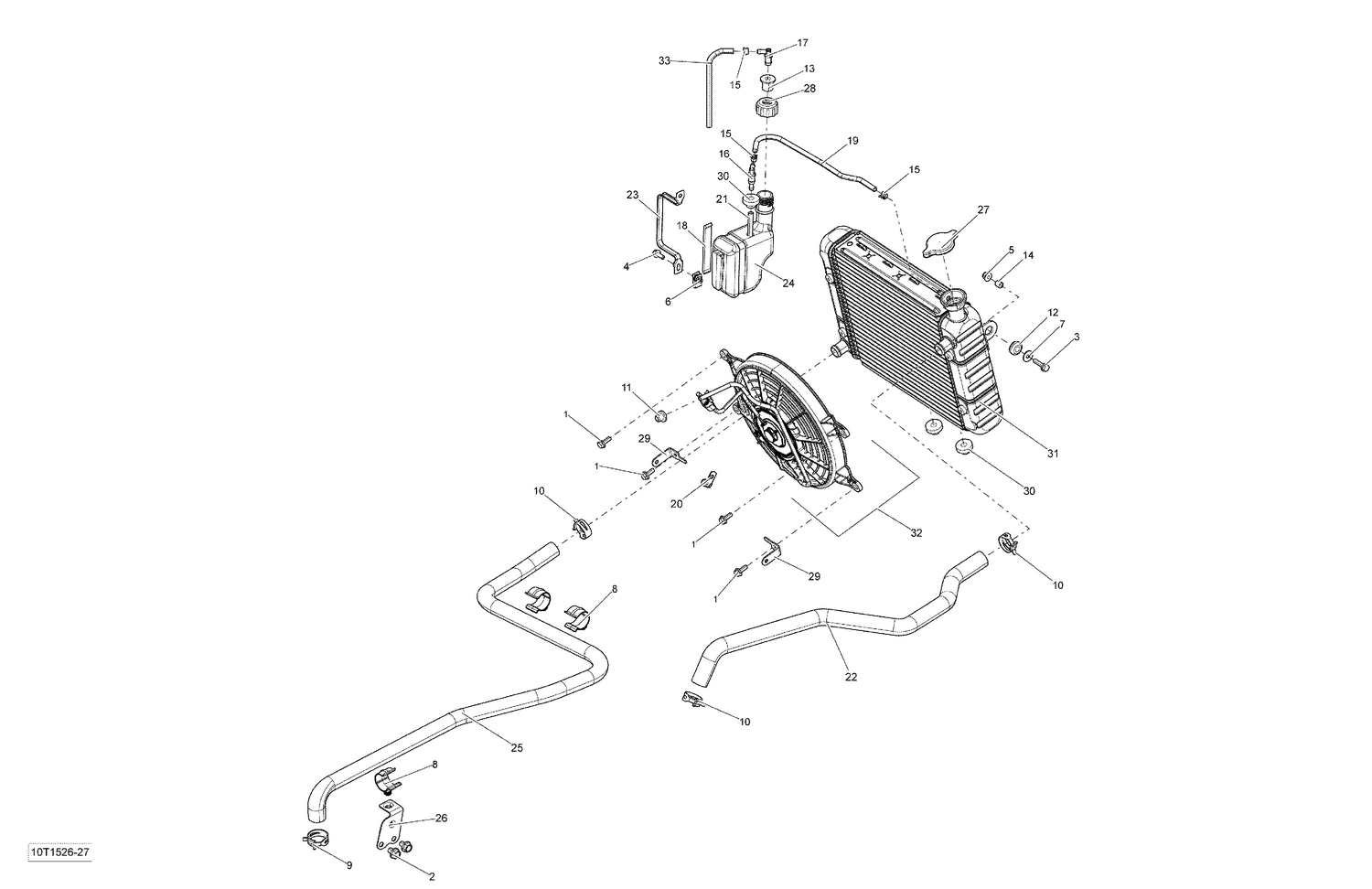

01- Cooling System _10T1526
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 7 | 250200082 | Flat Washer |
| 8 | 275500526 | Retainer |
| 9 | 293650108 | Norma Spring Clamp |
| 10 | 293650109 | Norma Spring Clamp |
| 11 | 293720029 | Grommet |
| 12 | 709000582 | Grommet This part replaces 293720053. |
| 13 | 293830136 | Grommet |
| 14 | 293900105 | Bushing |
| 15 | 414554800 | Spring Clamp |
| 16 | 414580600 | Elbow Male Connector |
| 17 | 414580700 | Male Connector |
| 18 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 19 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 20 | 293650256 | Clamp This part replaces 705600459. |
| 21 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 22 | 709200077 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 23 | 709200080 | TANK ANCHOR - Call your local BRP dealership |
| 24 | 709200099 | COOLANT TANK - Call your local BRP dealership |
| 25 | 709200198 | HOSE OUTLET RADIATOR - Call your local BRP dealership |
| 26 | 709200206 | Hose Support |
| 27 | 709200207 | Radiator Pressure Cap |
| 28 | 709200586 | Cap This part replaces 548872589. |
| 29 | 709200284 | SUPPORT - Call your local BRP dealership |
| 30 | 709200285 | Grommet |
| 31 | 709200307 | RADIATOR ASS'Y - Call your local BRP dealership |
| 32 | 709200371 | Fan Ass'y |
