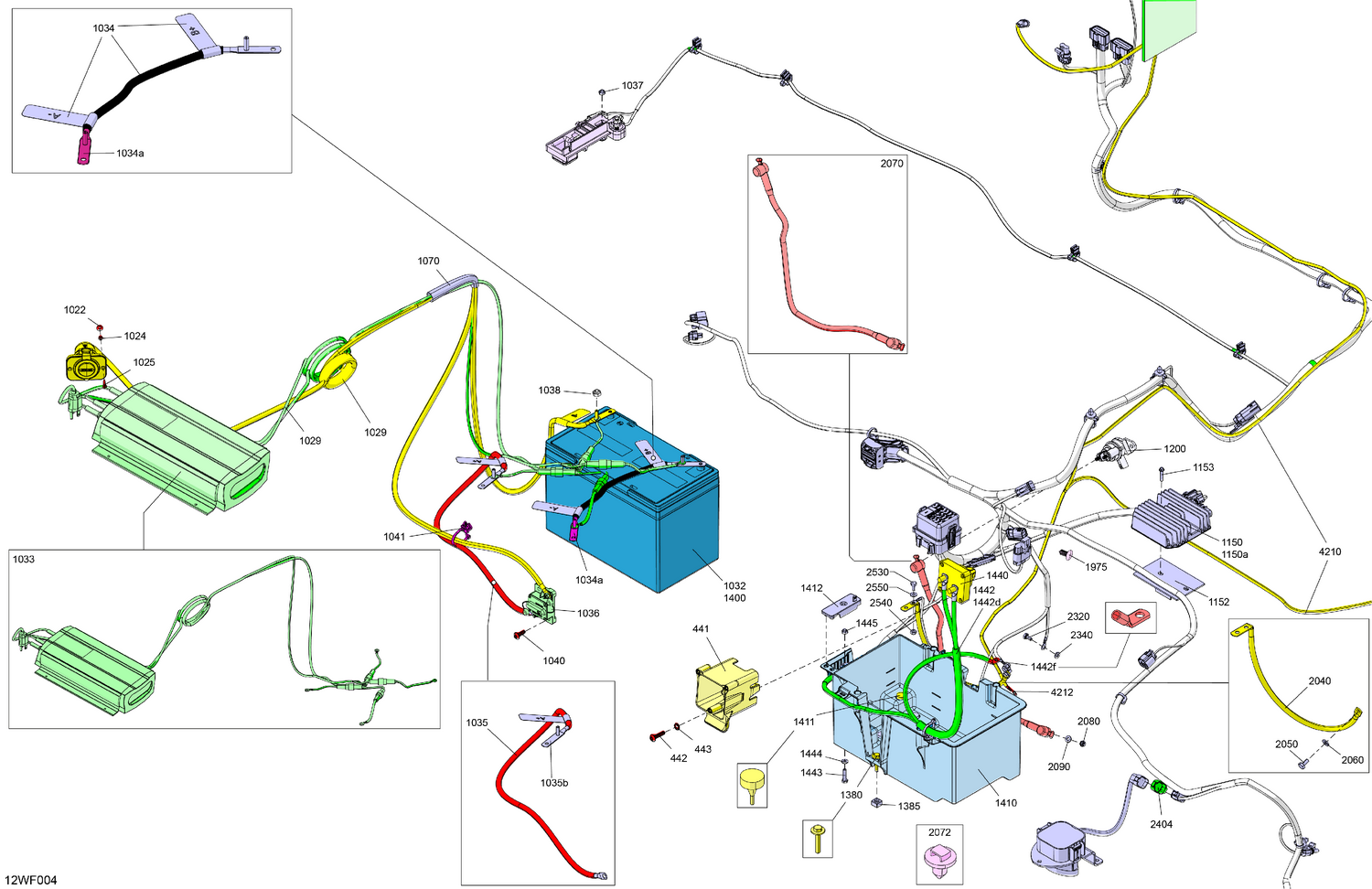

08- ELECTRIC - Electric Lower Section
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 441 | 278004308 | Switch Support |
| 442 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 443 | 250200114 | Sealing Washer |
| 1022 | 234042600 | Flat Washer 4 mm, Stainless |
| 1024 | 232541200 | Elastic Stop Nut M4 |
| 1025 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 1032 | 296000465 | Battery 12 Volt 100Ah |
| 1033 | 278004724 | Battery Charger |
| 1034a | 710008715 | Terminal |
| 1035b | 710008715 | Terminal |
| 1036 | 278004252 | Circuit Breaker |
| 1037 | 232561200 | Brass Elastic Stop Nut M6 |
| 1038 | 234081600 | Stainless, Flat Washer 8 mm |
| 1040 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 |
| 1041 | 293750111 | Tie Wrap Clip |
| 1070 | 219704619 | Barandilla Braided 25.4 Id 2000 Mm |
| 1150 | 710010540 | Voltage Regulator |
| 1152 | 278004853 | Machined Heat Sink |
| 1153 | 241153060 | Hex. Flanged Pt Screw K50 X 30 |
| 1200 | 278003012 | Starter Relay |
| 1380 | 250000969 | Hex Screw SEMS M6X35, SS |
| 1385 | 269502544 | Nut Housing M6 |
| 1400 | 296000465 | Battery 12 Volt 100Ah |
| 1410 | 278004647 | Battery Support |
| 1411 | 708003866 | Seat Stopper |
| 1412 | 710008598 | Positive Terminal Cap |
| 1440 | 278004300 | Switch |
| 1442d | 515177246 | Shrink Tubing, 6 mm |
| 1442f | 710000538 | OPEN BARREL - Call your local BRP dealership |
| 1443 | 207162560 | Hex. Screw M6 X 25 |
| 1444 | 234061600 | Stainless Flat Washer M6 |
| 1445 | 232561200 | Brass Elastic Stop Nut M6 |
| 1975 | 293730010 | Black Dart |
| 2040 | 278004389 | Negative Cable |
| 2050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 2060 | 234061600 | Stainless Flat Washer M6 |
| 2070 | 278003369 | Starter Cable |
| 2072 | 710008294 | Mount Dart |
| 2080 | 232561200 | Brass Elastic Stop Nut M6 |
| 2090 | 234061600 | Stainless Flat Washer M6 |
| 2320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 2340 | 234061600 | Stainless Flat Washer M6 |
| 2404 | 710004904 | Connector Plug |
| 2530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 2540 | 232561200 | Brass Elastic Stop Nut M6 |
| 2550 | 234061600 | Stainless Flat Washer M6 |
| 4210 | 278004402 | Pump Wiring Harness |
| 4212 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
