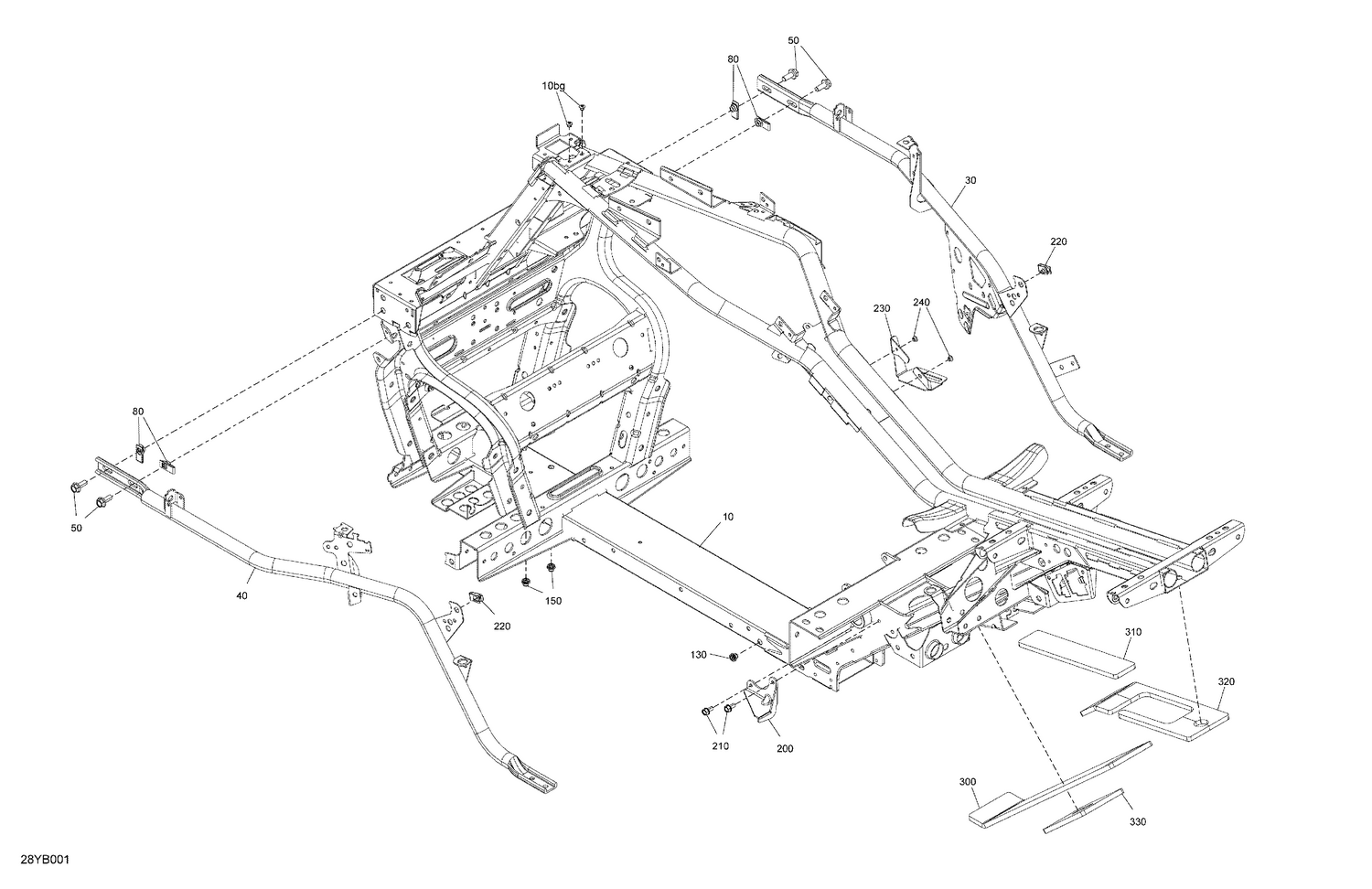

06- Frame - System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10bg | 390402200 | Pop Rivet 3/16" |
| 30 | 705207883 | RH Side Member |
| 40 | 705207882 | LH Side Member |
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 200 | 705202587 | Stopper Swing Arm |
| 210 | 210261250 | Hex. Flange Screw M6 X 12 |
| 220 | 250100198 | Panel Nut M6 X 1.0 |
| 230 | 705208909 | Latch Support |
| 240 | 390402400 | Pop Rivet 3/16" |
| 300 | 293830212 | Acoustic Insulation |
| 310 | 293830213 | Acoustic Insulation |
| 320 | 293830214 | Acoustic Insulation |
