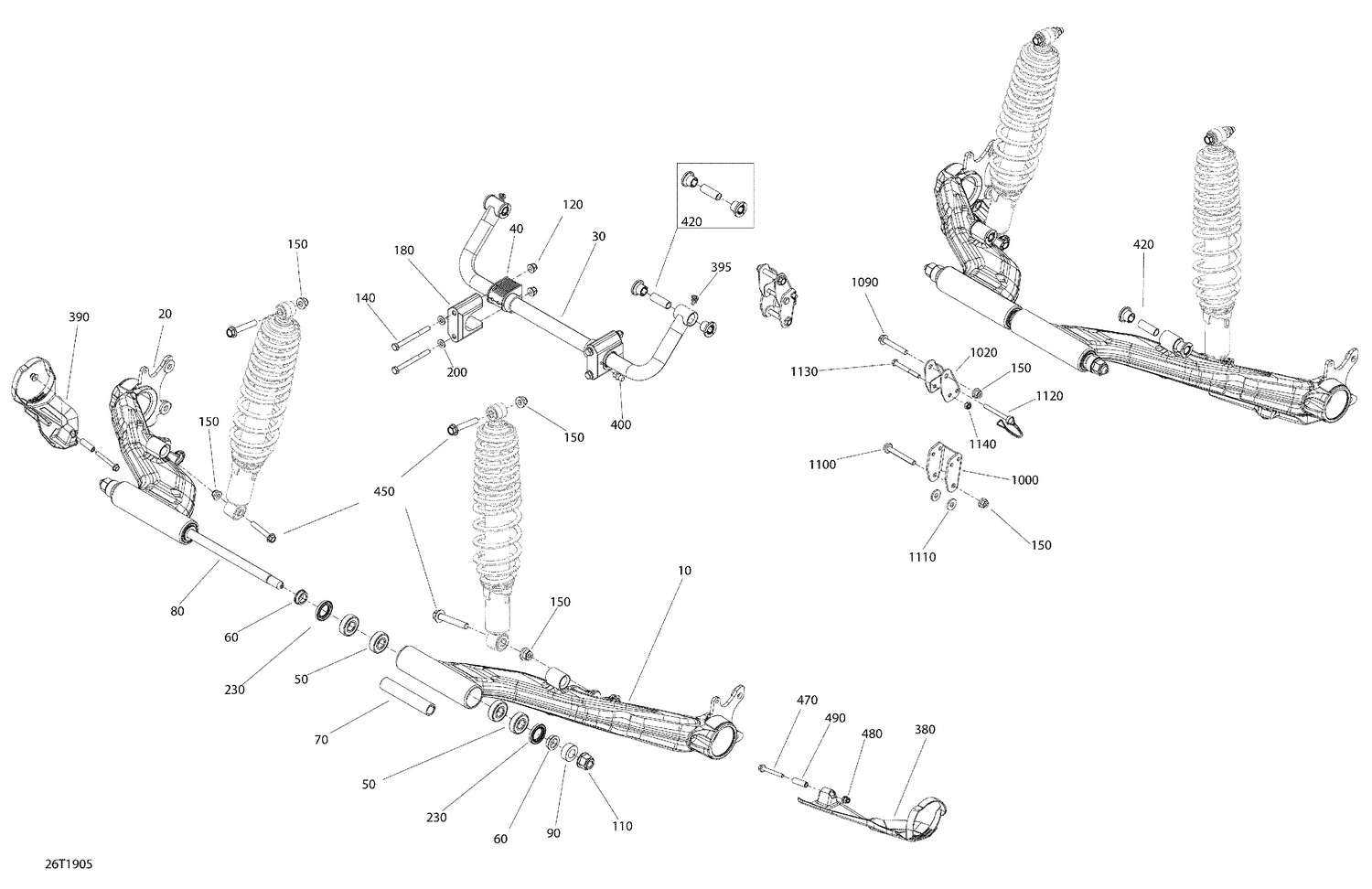

08- Rear Suspension 6X6 - Europe
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706003471 | Black LH Rear Swing Arm |
| 20 | 706004525 | Black, RH Rear Swing Arm This part replaces 706001647. |
| 30 | 706001678 | Sway Bar |
| 40 | 706004640 | Stabilizer Bar Bushing This part replaces 706002246. |
| 50 | 293350145 | Ball Bearing This part replaces 706000826. |
| 60 | 706001282 | Spacer |
| 70 | 706002258 | Spacer |
| 80 | 706001664 | Axial Pivot M16 |
| 90 | 250200112 | Flat Washer M17 |
| 110 | 233211466 | Hex. Flange Elastic Nut M16 |
| 120 | 233281434 | Hex. Flange Elastic Nut M8 |
| 140 | 250001035 | Hex. Screw M8 X 85 |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 |
| 180 | 706001099 | Bushing Holder |
| 200 | 234081430 | Flat Washer M8 |
| 230 | 293200144 | Seal |
| 380 | 706002482 | LH Protector |
| 390 | 706002483 | RH Protector |
| 395 | 293550056 | Grease Fitting 90° |
| 400 | 250000315 | Grease Fitting |
| 420 | 703500875 | Suspension Arm Bushing Kit |
| 450 | 207606046 | Hex. Flange Screw M10 X 6 |
| 470 | 207665044 | Hex. Flange Screw M6 X 50 |
| 480 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 490 | 707001376 | Bushing |
| 1000 | 706003107 | Linkage Outer Part |
| 1020 | 706003109 | Linkage Inner Part |
| 1090 | 207606536 | Hex. Flange Screw M10 X 65 |
| 1100 | 250001038 | Hex. Flange Screw M10 X 75 This part replaces 207607587. |
| 1110 | 505073634 | Washer |
| 1120 | 706001602 | Pin Onto The Shaft |
| 1130 | 207087044 | Hex. Screw M8 X 70 |
