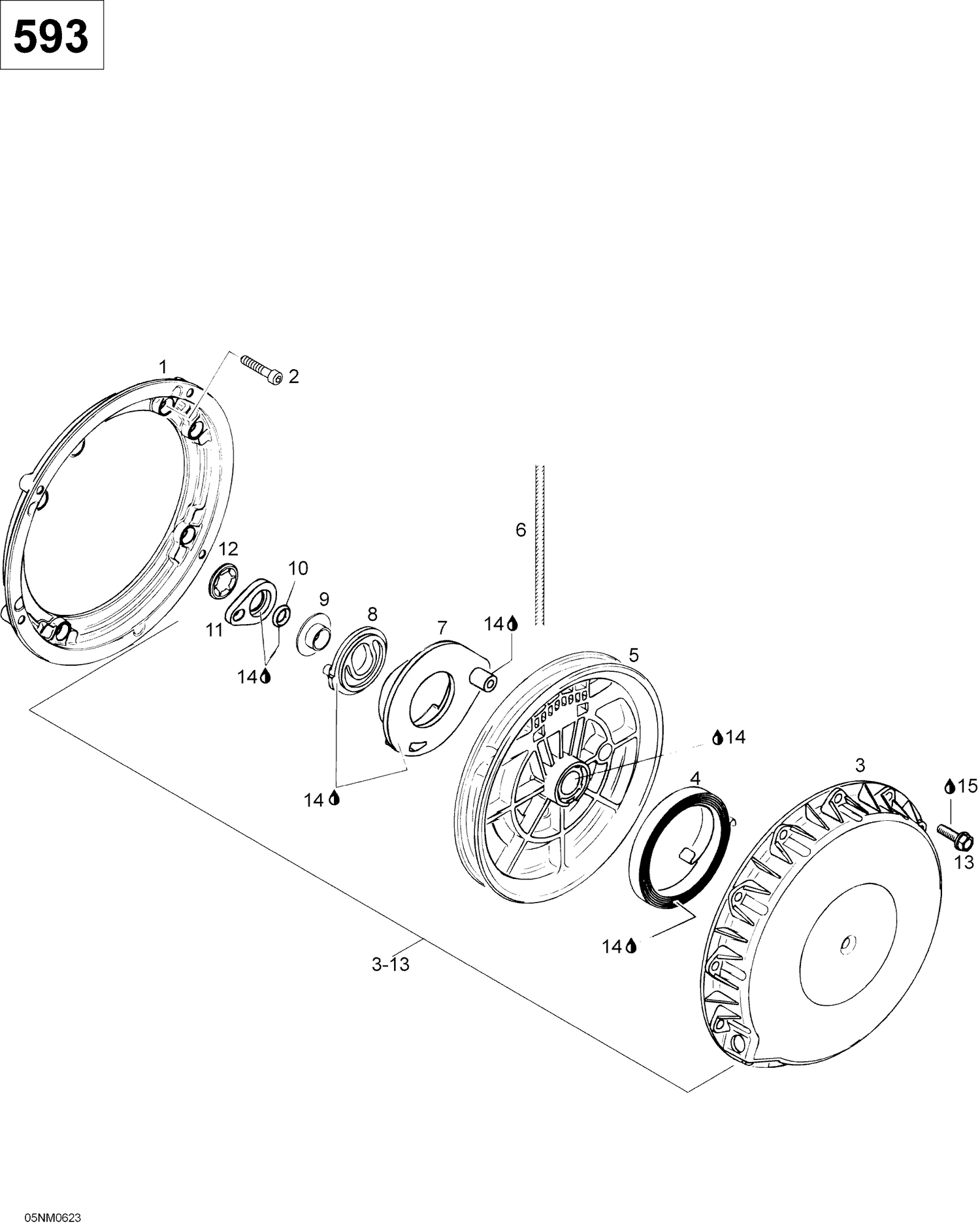

| Ref | Part Number | Description |
|---|
| 1 |
420810868 |
Connecting flange This part replaces 420810866. |
| 2 |
420241237 |
Socket Head Screw M6 X 16 This part replaces 420241236. |
| 3 |
420910256 |
Starter Housing This part replaces 420811401. |
| 4 |
420939115 |
Rewind Spring Ass'y |
| 5 |
420852286 |
ROPE SHEAVE - Call your local BRP dealership |
| 6 |
420852492 |
Käynnistinnaru (2.2 m) |
| 7 |
420852633 |
Pawl This part replaces 420852297. |
| 8 |
420852305 |
PAWL LOCK - Call your local BRP dealership |
| 9 |
420847926 |
Stage Sleeve This part replaces 420847925. |
| 10 |
420250400 |
O-rengas |
| 11 |
420852520 |
Lukitsinkappale |
| 12 |
420845560 |
Locking element |
| 13 |
420441386 |
Flanged Torx Screw M6 X 20 This part replaces 420941256. |
| 14 |
420899763 |
Molykote PG 54, 10 g |
