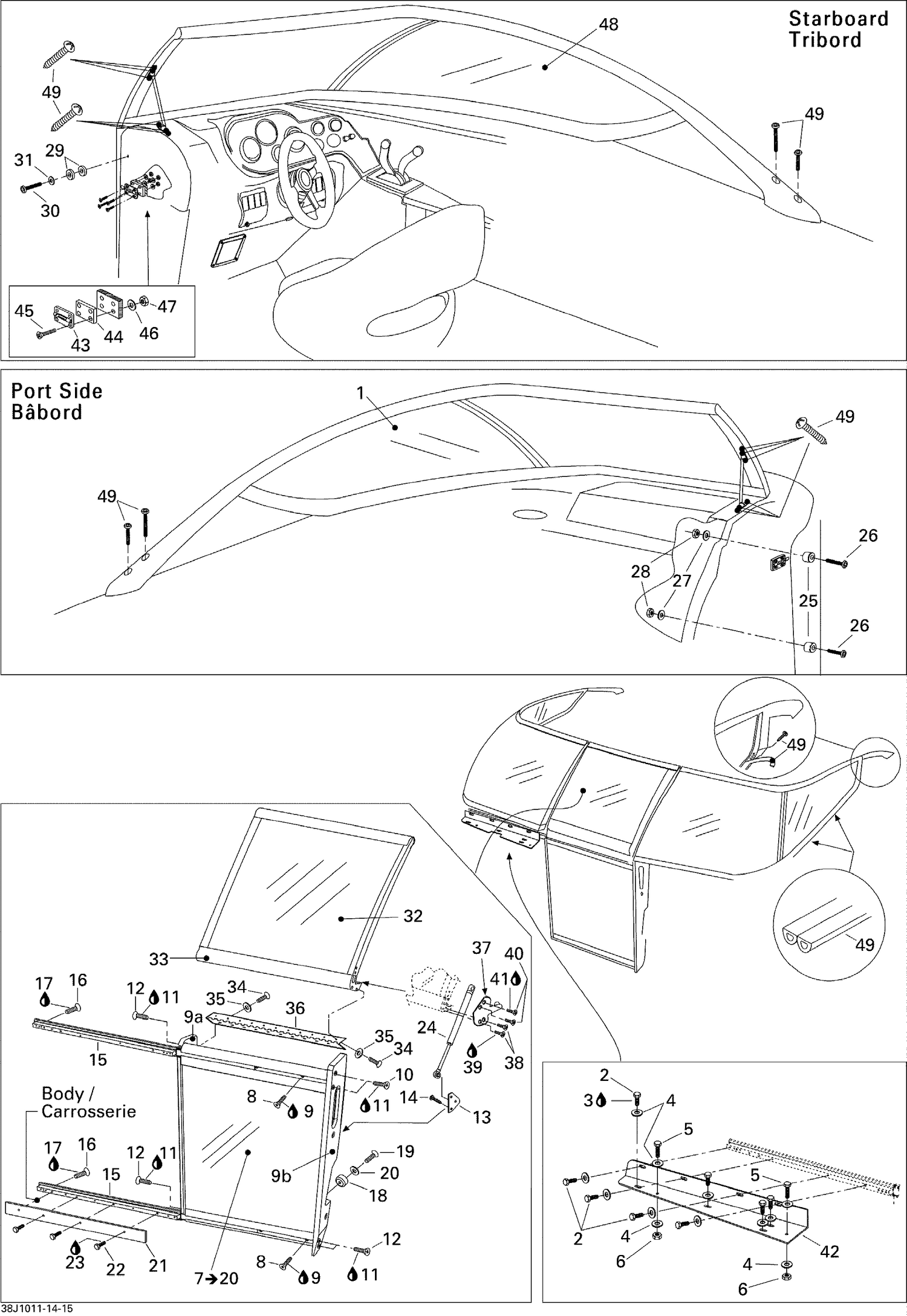

| Ref | Part Number | Description |
|---|
| 2 |
207161660 |
Hex. Screw M6 X 16 |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
234062600 |
Flat Washer M6, Stainless |
| 5 |
207162560 |
Hex. Screw M6 X 25 |
| 6 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 9a |
204440069 |
END CAP RH - Call your local BRP dealership |
| 9b |
204440037 |
SLIDING DOOR END CAP - Call your local BRP dealership |
| 10 |
208563560 |
Phillips Screw M6 X 35 |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
208562560 |
Phillips Screw M6 X 25 |
| 13 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 14 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 15 |
204073342 |
DRAWER SLIDE - Call your local BRP dealership |
| 16 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
293830043 |
Rubber Stopper |
| 19 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
| 20 |
234032600 |
Flat Washer M3, Stainless |
| 21 |
204072896 |
Walk-Thru Door Support |
| 22 |
207163060 |
Hex. Screw M6 X 30 |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
204072899 |
GAS SHOCK - Call your local BRP dealership |
| 25 |
204130166 |
LOCATOR STUD - Call your local BRP dealership |
| 26 |
205053560 |
SOCKET SCREW M5 X 35 - Call your local BRP dealership |
| 27 |
234051600 |
Flat Washer M5, Stainless |
| 28 |
232551600 |
Hex. Elastic Nut M5 |
| 29 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 30 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
| 31 |
234032600 |
Flat Washer M3, Stainless |
| 32 |
204440008 |
CENTER DOOR ASS'Y - Call your local BRP dealership |
| 33 |
204440003 |
EXTRUSION - Call your local BRP dealership |
| 34 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 35 |
234041600 |
Flat Washer 4 mm, Stainless |
| 36 |
204073092 |
HINGE - Call your local BRP dealership |
| 38 |
208451260 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 39 |
293800060 |
Loctite 243, 10 ml |
| 40 |
Not |
Available As Spare Part - Tapping Phillips Screw #10X1/2" |
| 41 |
293800060 |
Loctite 243, 10 ml |
| 42 |
204440017 |
SLINDING DOOR SUPPORT - Call your local BRP dealership |
| 43 |
204100233 |
Latch Bolt |
| 44 |
204440038 |
LATCH SPACER - Call your local BRP dealership |
| 44 |
204440052 |
LATCH SPACER - Call your local BRP dealership |
| 45 |
208443060 |
Phillips Screw M4 X 30 |
| 46 |
234041600 |
Flat Washer 4 mm, Stainless |
| 47 |
232541600 |
Elastic Stop Nut M4 |
