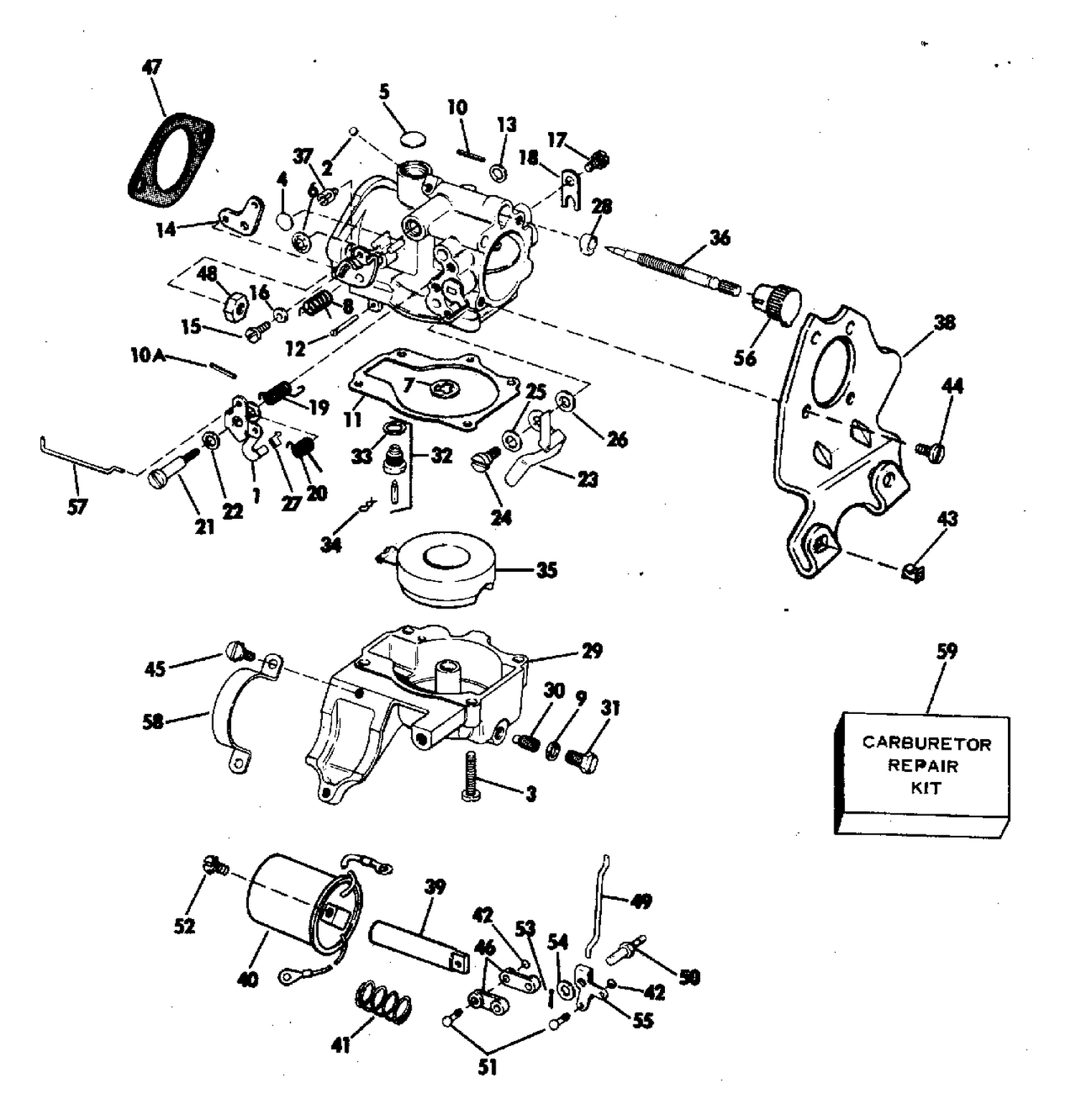

| Ref | Part Number | Description |
|---|
| 1 |
0318444 |
BELLCRANK, Choke |
| 3 |
0310302 |
SCREW PUMP ASSY |
| 10A |
0307901 |
ROLL PIN |
| 14 |
0320287 |
ADJUSTMENT LEVER |
| 18 |
0314906 |
CLIP |
| 19 |
0315239 |
SPRING, Choke return |
| 20 |
0318445 |
SPRING, Choke override |
| 21 |
0309720 |
SCREW, Cam follower |
| 22 |
0323693 |
WASHER, Bellcrank screw |
| 23 |
0315236 |
LEVER CHOKE |
| 27 |
0318536 |
SLEEVE |
| 28 |
0315232 |
RETAINER , Needle valve stbd |
| 29 |
0439383 |
FLOAT CHAMBER This part replaces 0393131. |
| 31 |
0307832 |
PLUG, Screw |
| 34 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 36 |
0432761 |
NEEDLE VALVE, Slow speed This part replaces 0393022. |
| 37 |
0313329 |
LOCKWASHER, Carburetor link |
| 38 |
0323339 |
BRACKET, Support |
| 39 |
0327731 |
PLUNGER, Solenoid |
| 40 |
0392570 |
SOLENOID |
| 41 |
0327732 |
SPRING, Plunger |
| 42 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 43 |
0204490 |
DETENT CHOKE, Ling |
| 44 |
0319547 |
SCREW, Clamp & ground lead |
| 45 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 46 |
0327712 |
LINK, Choke |
| 47 |
0325092 |
GASKET |
| 48 |
0316355 |
BUT, Carburetor mounting |
| 49 |
0327714 |
LINK |
| 50 |
0303739 |
PIVOT PIN |
| 51 |
0322340 |
HINGE PIN, Knob |
| 55 |
0327687 |
BELLCRANK |
| 56 |
0328063 |
ADJUSTING KNOB, Slow speed |
| 57 |
0318439 |
LINK, Throttle lever to choke bellcrank |
| 58 |
0328907 |
COLLIER, amorçage vers support This part replaces 0303740. |
| 0393057 |
0393057 |
CARBURETOR ASSY |
