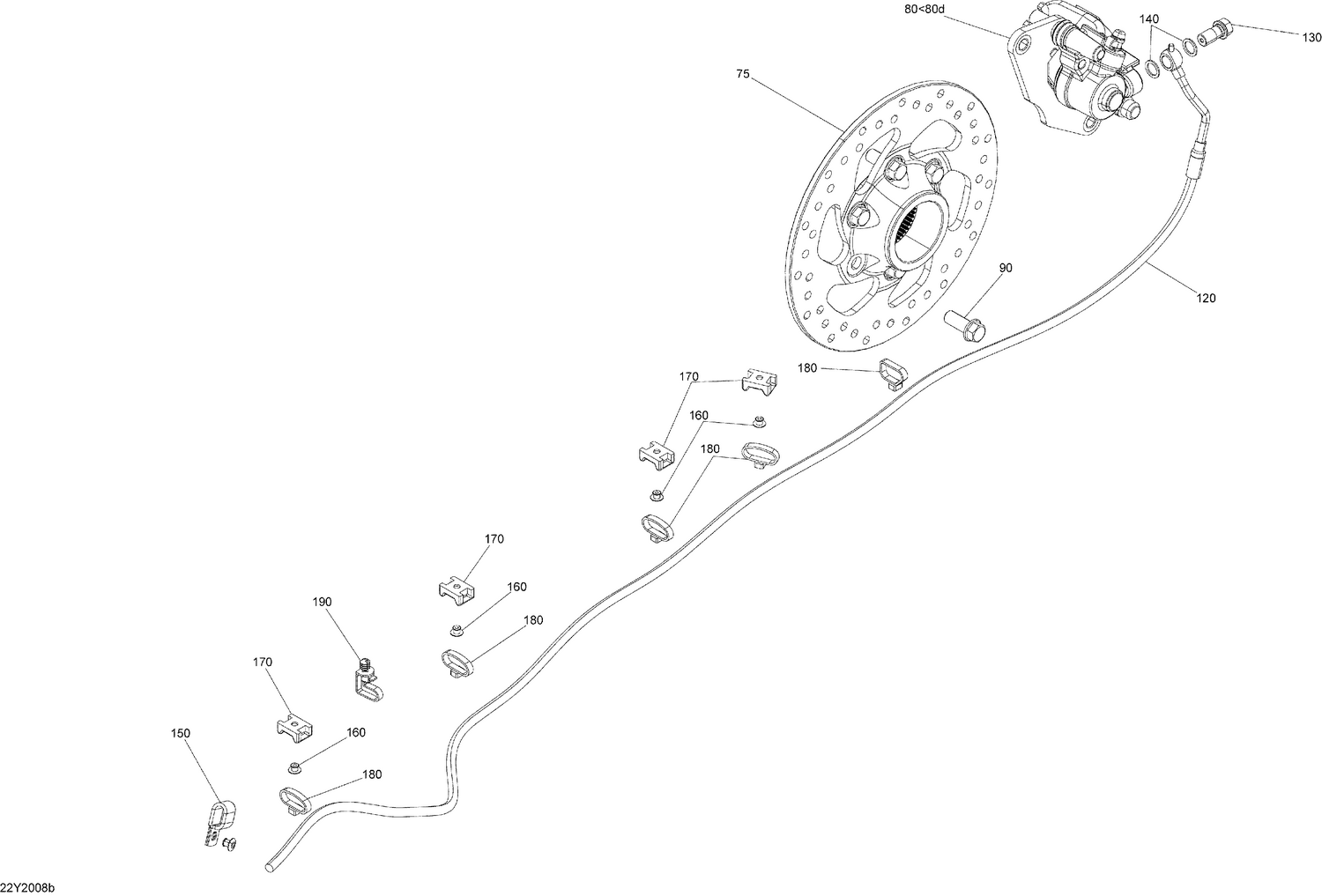

06- Hydraulic Brake, Rear
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 75 | 705601516 | Rear Brake Disk |
| 80a | 705600080 | Bleeding Screw |
| 80b | 219800449 | Spring/Boot/Bolt Kit |
| 80c | 219800448 | Rear Brake Pad Kit |
| 80d | 705600081 | Pin Set (2) |
| 90 | 250001054 | Hex. Flange Screw M10 X 25 |
| 130 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 140 | 705601628 | Copper Washer |
| 150 | 293650220 | Clamp |
| 160 | 390402200 | Pop Rivet 3/16" |
| 170 | 515176795 | Tie Rap Mount (screwable) |
| 180 | 293750008 | Tie Wrap 368 mm |
