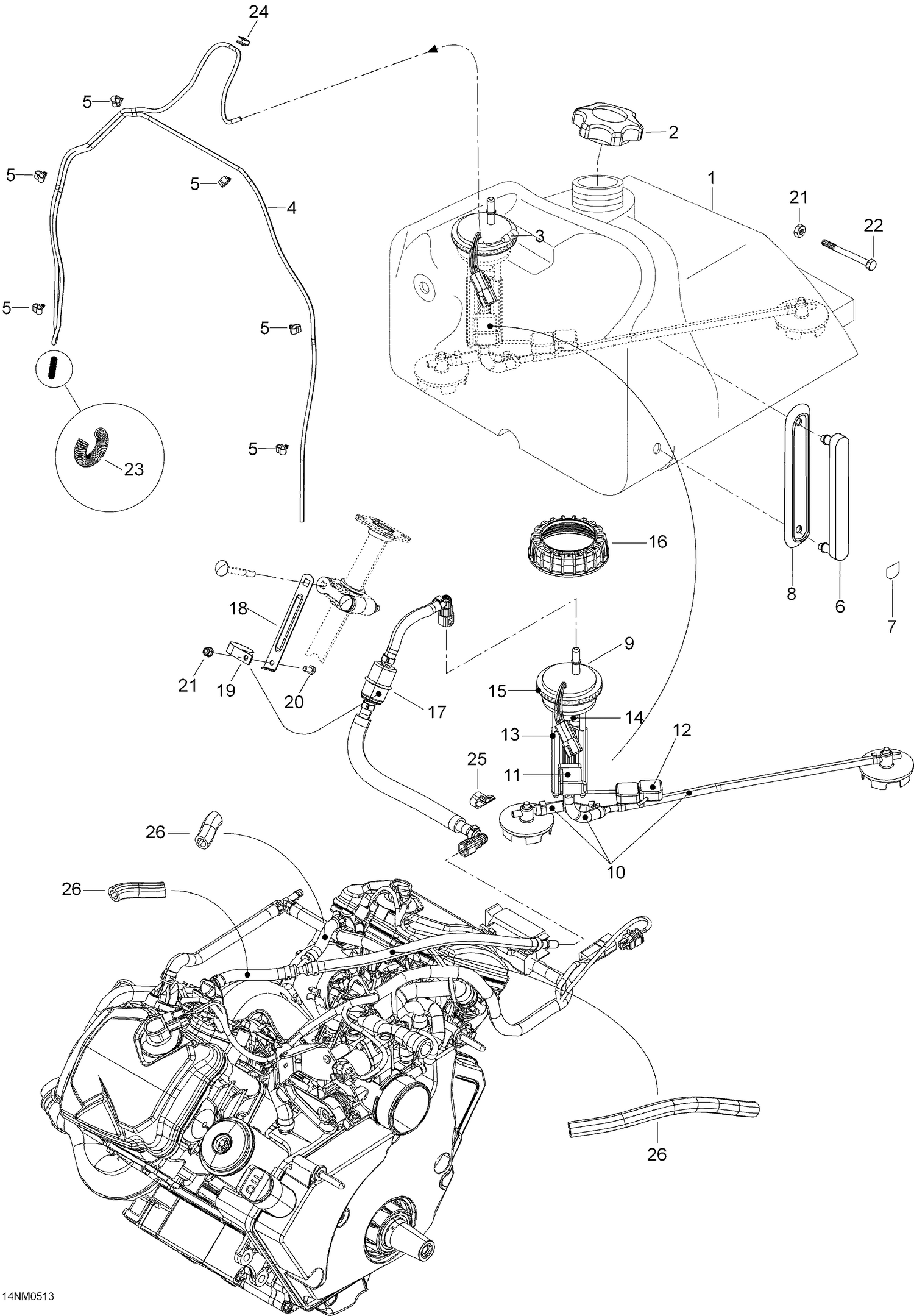

02- Fuel System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605149201 | Fuel tank |
| 2 | 513033025 | Fuel Tank Cap This part replaces 580259400. |
| 3 | 19051 | Fitting |
| 4 | 39035 | Airhose 5/3 |
| 5 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 6 | 572015900 | Fuel gauge |
| 7 | 549200 | Fuel label |
| 8 | 570018000 | Housing gauge |
| 10 | 861302300 | Fuel hose kit |
| 11 | 861301800 | Resistor card kit |
| 12 | 861301900 | Float lever kit |
| 13 | 861302000 | Pump kit |
| 14 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 15 | 513033039 | SEAL - Call your local BRP dealership |
| 16 | 513033040 | Cover |
| 17 | 513033078 | Fuel filter |
| 18 | 513033057 | Bracket |
| 19 | 513033047 | Clamp |
| 20 | 40029 | Screw M6 x 16 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 | 40193 | Hex. screw M6 x 50 |
| 23 | 25003 | Spring |
| 24 | 414479100 | Clamp |
| 25 | 27013 | Clamp |
