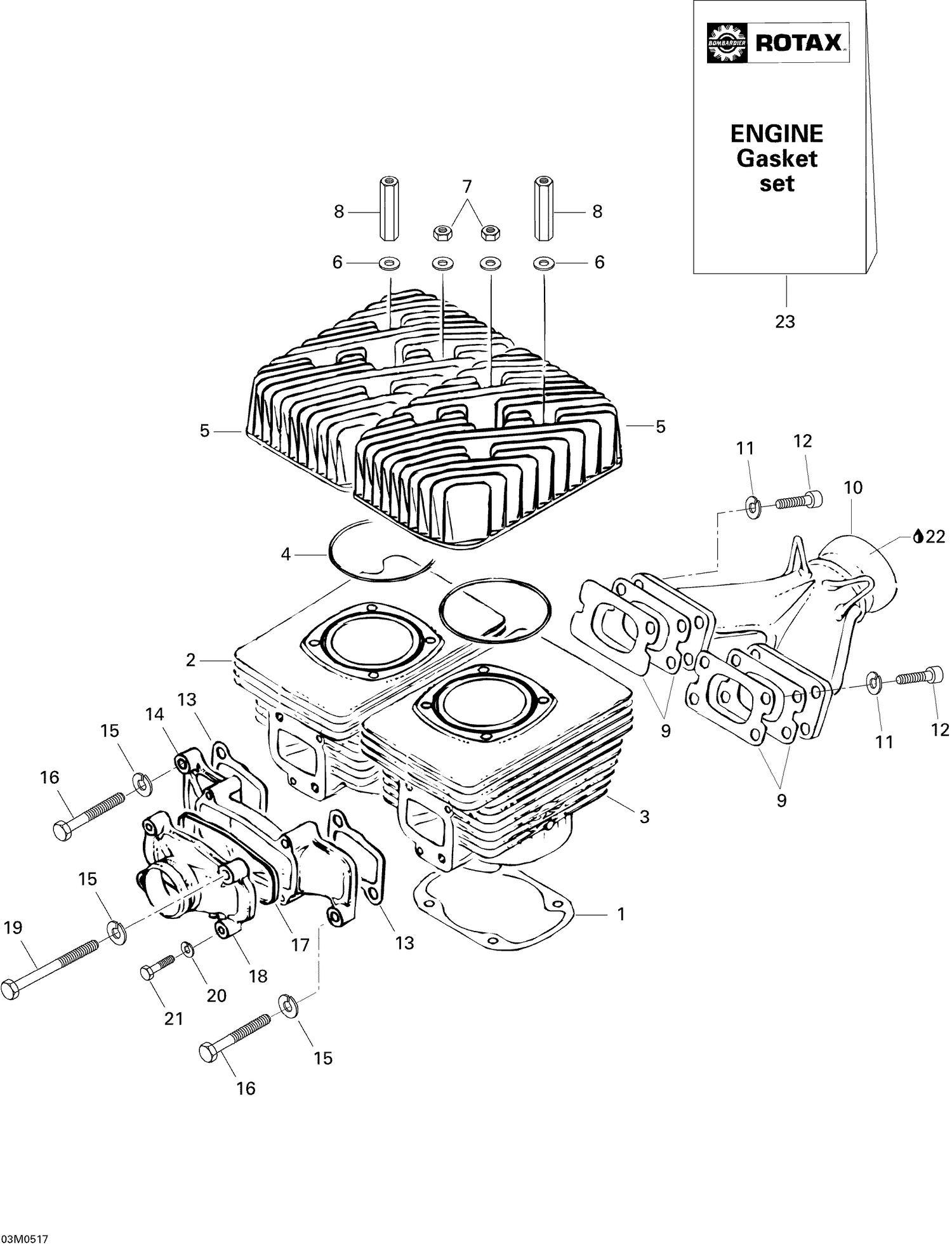

| Ref | Part Number | Description |
|---|
| 1 |
420430351 |
GASKET 0.4 - Call your local BRP dealership This part replaces 420931781. |
| 1 |
420931780 |
GASKET 0.3 - Call your local BRP dealership |
| 1 |
420931782 |
GASKET 0.6 - Call your local BRP dealership |
| 2 |
420923791 |
CYLINDER WITH SLEEVE PTO SIDE - Call your local BRP dealership |
| 3 |
420923796 |
Cylinder Whit Sleeve Mag Side |
| 4 |
420931380 |
O-Ring |
| 5 |
420923377 |
CYLINDER HEAD - Call your local BRP dealership |
| 6 |
234081410 |
Flat Washer 8 mm |
| 7 |
232081414 |
Hex. Nut M8 |
| 8 |
420842208 |
DISTANCE NUT M8 X 51 - Call your local BRP dealership |
| 9 |
420850114 |
GASKET - Call your local BRP dealership |
| 10 |
420879459 |
Exhaust Manifold |
| 11 |
234181401 |
Lock Washer 8 mm |
| 12 |
M40135 |
Socket Head Screw M8 X 30 |
| 13 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership |
| 14 |
420867435 |
Intake Manifold |
| 15 |
234181401 |
Lock Washer 8 mm |
| 16 |
207083544 |
Hex. Screw M8 X 35 |
| 17 |
420850190 |
RUBBER RING - Call your local BRP dealership |
| 18 |
420867442 |
Intake Cover-Intake |
| 19 |
420841201 |
Hex. Screw M8 X 70 |
| 20 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 21 |
207162544 |
Hex. Screw M6 X 25 |
| 22 |
293800090 |
Sealant, Loctite, 80 ml |
